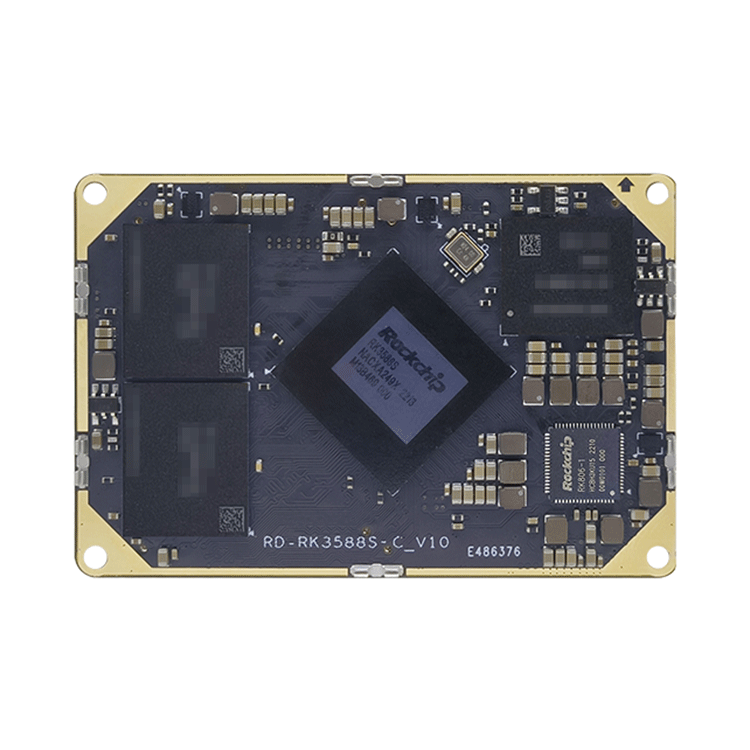

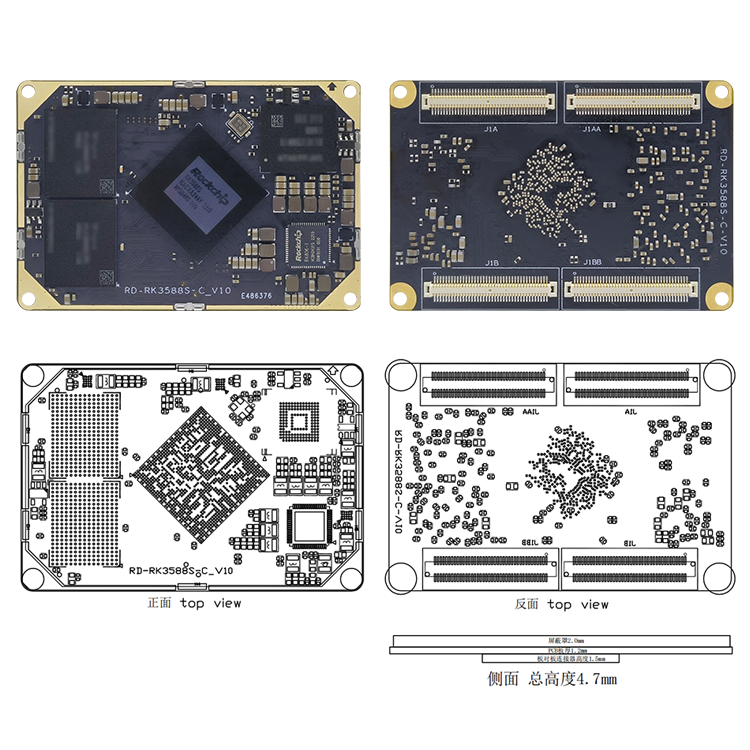

size

60mm long*40mm wide*3.2mm high

connection method

Board-to-Board Connector

CPU

ROCKCHIP RK3588S Octa-Core A76+A55

NPU

6T OPS

GPU

Mali G61 MP4

Memory

LPDDR5 4GB/8GB/16GB/32GB

memory

EMMC 5.1 standard 32G/64G/128G optional 256G

power management

RK806

Operating Voltage

3.4-5.5V MAX 15W

support system

Andriod12/ubuntu20.04/Linux5.10+QT5.15/debian11

Operating temperature

-10 to +75 degrees

hdmi

1 channel HDMI high-definition output supports up to 4K display

EDP

1 channel 4Lane eDP up to 1080P

DP

2-way 4Lane DP up to 4K

MIPI DSI

2-way MIPI DSI up to 2K

MIPI CSI

1 way MIPI CAMERA CSI input

I2S

Three-way I2S, two-way 8-channel/one-way 2-channel

PCIe

2-way PCIE2.0 x1

SATA

2 way SATA3.0

USB2.0

3-way independent USB2.0, one of which is OTG

USB3.0

1 way USB 3.0 interface (shared with DP)

ethernet

1 way RGMII Ethernet interface

UART

10 serial ports

SPI

4 way SPI

I2C

7-way I2C

PWM

13 way PWM

SDIO

2 SDIO interfaces, one for TF card and the other for SDIO WIFI

ADC

3-way analog ADC input interface

CAN

3 CAN buses

GPIOs

Multiplexable GPIO up to 102

upgrade

Support USB/TF card local upgrade

motherboard size

160mm long*100mm wide*14mm high

CPU

ROCKCHIP RK3588 Octa Core (A76+A55)

NPU

6T computing power neural network unit

GPU

ARM G61 MP4

Memory

LPDDR5 can be configured to 4GB/8GB/16GB/32GB

memory

EMMC 5.1 can be configured with 32GB/64GB/128GB

power management

RK809-1

Operating Voltage

12V 2A and above

support system

Andriod12/ubuntu20.04/Linux5.10+QT5.15/debian11

operating temperature

-10 to +75 degrees

life

The continuous operation life is more than 5 years

USB HOST

5-way USB ports (2-way external, 3-way plug-in, 1-way OTG3.0)

serial port

5 serial ports, 4 of which can be set to RS232 or TTL, one of which is debug

I2C

1 way I2C

CAN

3 CAN buses

RS485

1 channel RS485

GPIOs

8 available GPIOs

HDMI output

1 HDMI output, up to 4K (multiplexed with eDP)

AHD input

Support 4-way 720P/1080P AHD input

MIPI DSI display

Support 1 channel MIPI DSI display

eDP display

1 channel eDP display interface (multiplexed with HDMI)

LVDS display

Support single-channel dual-channel LVDS output, up to 1920x1080

voice output

1-way headphone left and right channel output, 2-way speaker output 3W/8 ohms

Voice input

1 microphone input

Ethernet 0

Support one Gigabit Ethernet (PCIE)

Ethernet 1

Support one Gigabit Ethernet (RGMII)

WiFi

Support WIFI 6 (AP6275)

Bluetooth

1CH 5.0G Bluetooth+BLE(AP6275)

RTC

External RTC chip (HYM8563) consumes less than 0.2uA

4G

Can be built-in 4G module, support remote and Zhanrui

TF card

Support TF card

RTC real time clock

External button battery supports power-down time saving (independent HYM8563)

System Upgrade

Support local USB upgrade

Power parameters

Voltage

6.5

12V

15

ripple

--

50mV

RTC (HYM8563)

0.3uA

0.9uA

1.2uA

With backplane current test

Boot current

165mA

275mA

652mA

Desktop Quiescent Current

195mA

environment

Relative humidity

--

65%

75%

Operating temperature

-10°C

--

75°C

storage temperature

-30°C

-0°C

100°C
