CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

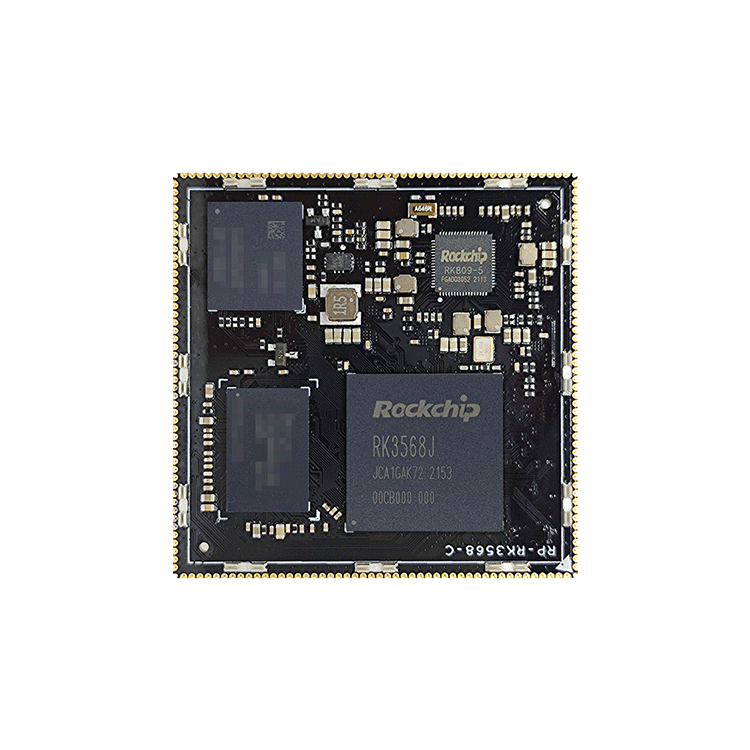

PRODUCT DISPLAY
HARDWARE INDEX
Main hardware indicators | |
size | 50mm long*50mm wide*3.2mm high |
Connection method | Board to Board Connector |
CPU | ROCKCHIP RK3568J Quad Core A55 |
GPU | Mali G52 |
Memory | LPDDR4 standard 2GB, optional 4G/8GB |
memory | EMMC 5.1 standard 8GB, optional 16GB/32G/64G/128G |
Power management | RK809-5 |
Working voltage | 3.3V 3A or more |
Support system | Andriod11/Debian11/Buildroot+QT5.15/Ubuntu20.04 |
operating temperature | -40 to +85 degrees |
life | Continuous operation life is more than 5 years |
COMMONINTERFACE
Common interfaces for core boards | |
HDMI | HDMI high-definition output supports 1080P display |
EDP | Support 4Lane eDP up to 1080P |
LVDS | Supports single-channel LVDS display output up to 1280x800 |
MIPI DSI | Support 4Lane up to 1920x1200 |
RGB | Support RGB888 24-bit interface |
DVP camera | Support 16 bit DVP interface camera input |
MIPI CSI | Two-way CSI supports up to 800W |
I2S | Two I2S channels, one channel 8 channels/one channel 2 channels |
PCIE | 1-way PCIE2.0 x1 |
SATA | 1 channel SATA3.0, the other channel SATA2.0 |
USB2.0 | Four independent USB2.0 channels, one of which is OTG |
USB3.0 | Two-way USB 3.0 interface |
Ethernet | 2-way RGMII Ethernet interface |
UART | 10-way serial port |
SPI | 3-way SPI |
I2C | 4-way I2C |
PWM | 15-way PWM |
SDIO | 3-way SDIO interface, one is TF card, the other is WIFI |
ADC | 8-channel analog ADC input interface |
GPIO | Reusable GPIO up to 130 |
Voice input | Two-way analog voice input |
Voice output | One channel is the headphone output, the other channel is the mono speaker output power 0.6W |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | smallest | typical | maximum | |
Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Core board input 3.39V Current test | Start-up current | 273mA | 345mA | 465mA |
Desktop quiescent current | 325mA | |||
environment | relative humidity | -- | 65% | 75% |
working temperature | -40℃ | -- | 85℃ | |
Storage temperature | -50℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
HARDWARE INDEX
Main hardware indicators | |
size | 50mm long*50mm wide*3.2mm high |
Connection method | Board to Board Connector |
CPU | ROCKCHIP RK3568J Quad Core A55 |
GPU | Mali G52 |
Memory | LPDDR4 standard 2GB, optional 4G/8GB |
memory | EMMC 5.1 standard 8GB, optional 16GB/32G/64G/128G |
Power management | RK809-5 |
Working voltage | 3.3V 3A or more |
Support system | Andriod11/Debian11/Buildroot+QT5.15/Ubuntu20.04 |
operating temperature | -40 to +85 degrees |
life | Continuous operation life is more than 5 years |
COMMONINTERFACE
Common interfaces for core boards | |
HDMI | HDMI high-definition output supports 1080P display |
EDP | Support 4Lane eDP up to 1080P |
LVDS | Supports single-channel LVDS display output up to 1280x800 |
MIPI DSI | Support 4Lane up to 1920x1200 |
RGB | Support RGB888 24-bit interface |
DVP camera | Support 16 bit DVP interface camera input |
MIPI CSI | Two-way CSI supports up to 800W |
I2S | Two I2S channels, one channel 8 channels/one channel 2 channels |
PCIE | 1-way PCIE2.0 x1 |
SATA | 1 channel SATA3.0, the other channel SATA2.0 |
USB2.0 | Four independent USB2.0 channels, one of which is OTG |
USB3.0 | Two-way USB 3.0 interface |
Ethernet | 2-way RGMII Ethernet interface |
UART | 10-way serial port |
SPI | 3-way SPI |
I2C | 4-way I2C |
PWM | 15-way PWM |
SDIO | 3-way SDIO interface, one is TF card, the other is WIFI |
ADC | 8-channel analog ADC input interface |
GPIO | Reusable GPIO up to 130 |
Voice input | Two-way analog voice input |
Voice output | One channel is the headphone output, the other channel is the mono speaker output power 0.6W |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | smallest | typical | maximum | |
Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Core board input 3.39V Current test | Start-up current | 273mA | 345mA | 465mA |
Desktop quiescent current | 325mA | |||
environment | relative humidity | -- | 65% | 75% |
working temperature | -40℃ | -- | 85℃ | |
Storage temperature | -50℃ | -0℃ | 100℃ | |
Product Show Case
