CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
MAINN BOARD BLOCK DIAGRAM

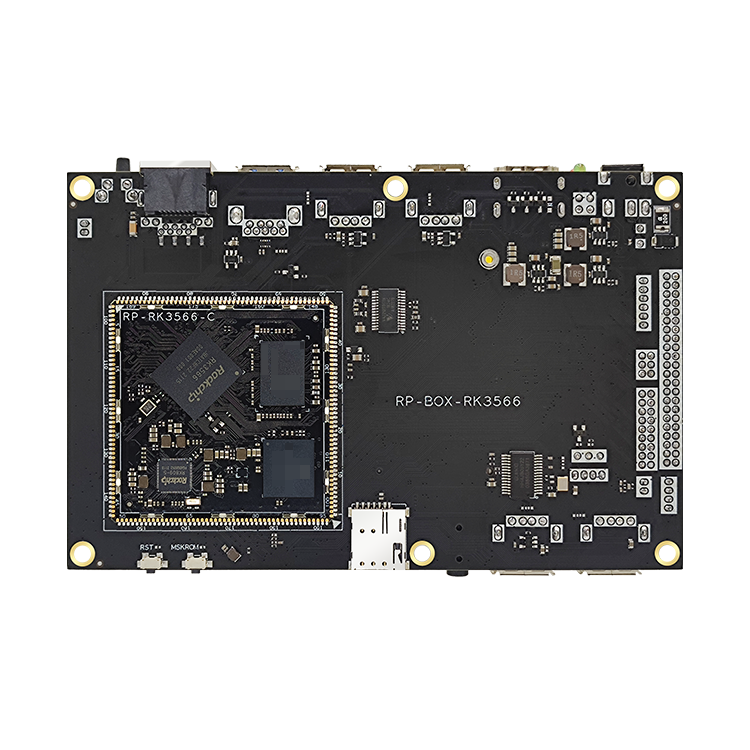

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Motherboard size | 140mm length*90mm width*14mm height |
| CPU | ROCKCHIP RK3568 quad core A55 |
| NPU | 0.8T computing power neural network unit |
| GPU | ARM G52 2EE |
| RAM | LPDDR4 standard 2GB optional 4GB/8GB |
| Memory | EMMC 5.1 standard 8GB optional 32GB/64GB |
| Power management | RK809-5 |
| Operating Voltage | 12V 2A or more |
| support system | Andriod 11/ Ubuntu1804/ Linux+QT5.14/Diban |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 6 USB ports (4 external, 2 internal plug-in), one USB 3.0, the other OTG3.0 |
| Serial port | 6 TTL 3.3V level |
| SPI | 1 way SPI0 |
| I2C | 1 channel I2C1 |
| ADC | 2 ADC analog input ports |
| Other expansion interfaces | 15-channel IO (multiplexed serial port and SPI) |
| HDMI output | HDMI 2.0 (can be displayed differently with MIPI/EDP/LVDS) |
| MIPI DSI display | Support 4 lane display interface up to 1920x1200 |
| eDP display | 2 lanes up to 1920x1080 |
| LVDS display | Support single channel 6/8 bit LVDS output up to 1280x800 |
| MIPI CSI input | 2 cameras can support dual MIPI raw data input |
| Ethernet | 1 channel 10M/100M/1000M |
| Voice output | 1 headphone left and right channel output, 2 speakers output 5W/8 ohm |
| Voice input | 1 microphone input |
| Ethernet | Support two Gigabit Ethernet (RTL8211F x2) |
| WIFI | WIFI 2.4G/5G dual band (AP6256) |
| Bluetooth | 1 channel 5.0G Bluetooth+BLE (AP6256) |
| RTC | External RTC chip (HYM8563) power consumption is less than 0.2uA |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery supports power-down time saving (independent HYM8563) |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 11V | 12V | 15V |
| Ripple | -- | 50mV | -- | |
| 3V RTC power consumption | -- | 0.9uA | -- | |
| Boot current | 110mA | 223mA | 355mA | |
| Desktop quiescent current | -- | 135mA | -- | |
| Boot current | 245mA | 295mA | 498mA | |
| Desktop quiescent current | -- | 245mA | -- | |
| environment | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
