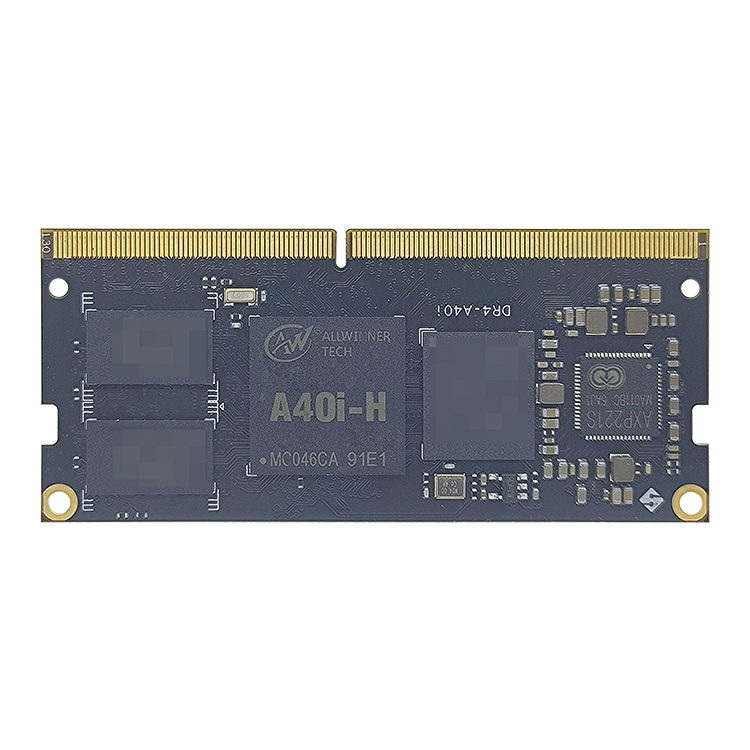

Allwinnertech DR4-A40i Core board

SHENZHEN RONGPIN ELECTRONIC TECHNOLOGY CO.,LTD.
Contact information: 0755-235747363
Address: 3rd Floor, Block A, Phase II, Huafeng International Robot Industrial Park, Xixiang Street, Baoan District, Shenzhen (Gushu Metro Exit C)
Product description

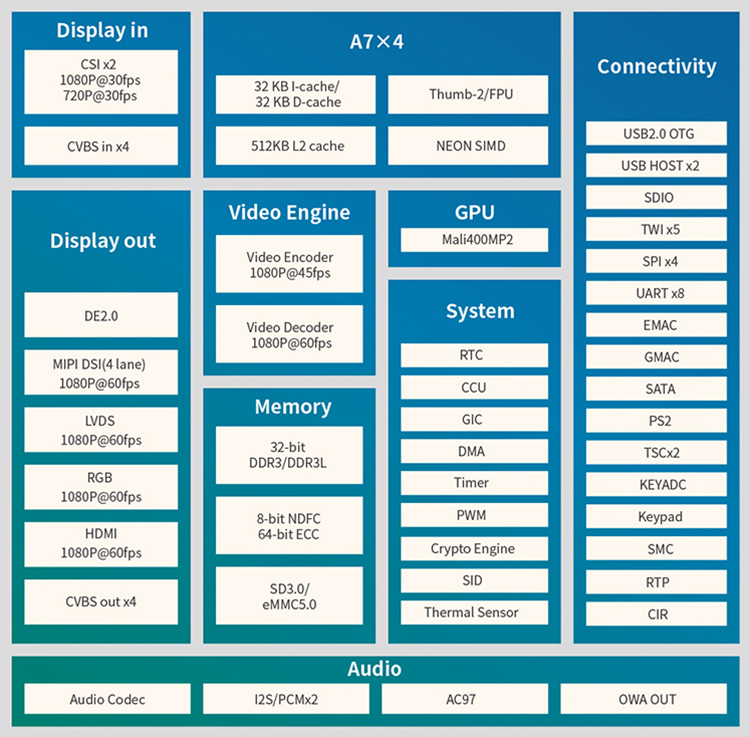

 CPU BLOCK DIAGRAM

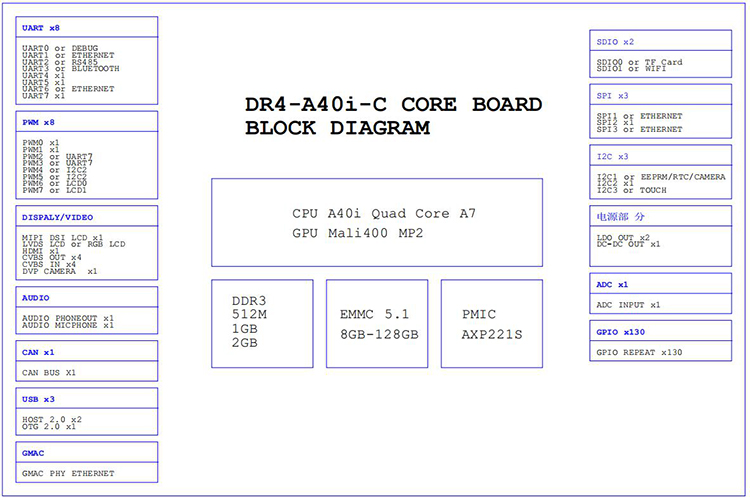

CORE BOARD BLOCK DIAGRAM


PRODUCT DISPLAY



HARDWARE INDEX


sizeLength 69.6mm x Width 30mm x Height 3.0mm
CPUAllwinner A40i-H quad-core clocked at 1.2GHz
GPUMali-400 MP2 GPU
MemoryDDR3 comes standard with 1GB (2GB is optional in batches)
memoryeMMC comes standard with 8GB (16GB/32GB/64GB optional)
Power managementAXP221S supports standby and key on/off
Working voltageInput voltage 5V, maximum power less than 2W (no peripherals connected)
Support systemAndroid 7.1+Linux3.10 / QT5.4.1+Linux3.10
operating temperature-10 to +75 degrees
lifeContinuous operation life is more than 5 years


COMMONINTERFACE


USB interface3 USB interfaces, two independent USB ports, and one independent OTG
UART serial port8 channels of TTL 3.3V level, one of which is Debug
GPIO interface130 channels of GPIO (note: with multiplexing function)
PWM interface8-way PWM 3.3V level
MIPI DSI display1 channel maximum 1920x1080 1080P 60fps
LVDS display1 channel LVDS supports up to 1920x1080 1080P 60fps
RGB display1 RGB 888 output supports up to 1920x1080 1080P 60fps
HDMI display1 HDMI output 1920x1080 1080P 60fps
CVBS output4 CVBS outputs
Camera interface1 channel 8-bit parallel DVP camera interface 720P 30fps
CVBS input4 CVBS inputs
Voice output1 left and right channel output, 10W power amplifier installed on the bottom panel
Voice input1 microphone input
CAN bus1 CAN BUS 2.0 bus
SDIO interface2 SDIO interfaces, one for TF card and the other for WIFI
IR infrared interface1 channel IR infrared receiving interface
ADC interface2-way ADC interface
I2C interface4-way I2C interface
SPI interface3-way SPI interface
EthernetOne GMAC PHY interface, connected to 100M PHY chip by default
SATA hard driveSupport SATA hard disk interface
I2S interfaceSupport 8-channel I2S interface output
Output powerMulti-channel power output 1.8V 2.8V 3.3V
System upgradeSupport local USB upgrade


CORRENT PARAMETER TABLE


projectsmallesttypicalmaximum
Power parametersVoltage6.5V12V15V
ripple--50mV120mV
current65mA----

Supply current

(No other peripherals connected)

Start-up current85mA130mA315mA
play sound95mA139mA172mA
Connect HDMI power-on current106mA185mA305mA

Supply current

(connected to display screen)

MIPI 1024*60098mA232mA312mA




environmentrelative humidity--65%75%
working temperature-10℃--75℃
Storage temperature-30℃-0℃100℃

Note 1: When connecting to an LVDS screen, be sure to select the correct backlight operating voltage of 3.3V, 5V, or 12V. Users are advised not to apply it to peripherals that exceed the corresponding maximum current.

Note 2: When connected to a MIPI screen, the overall operating current and standby current of the board depend on the connected screen and are not listed in the above table.
