CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY

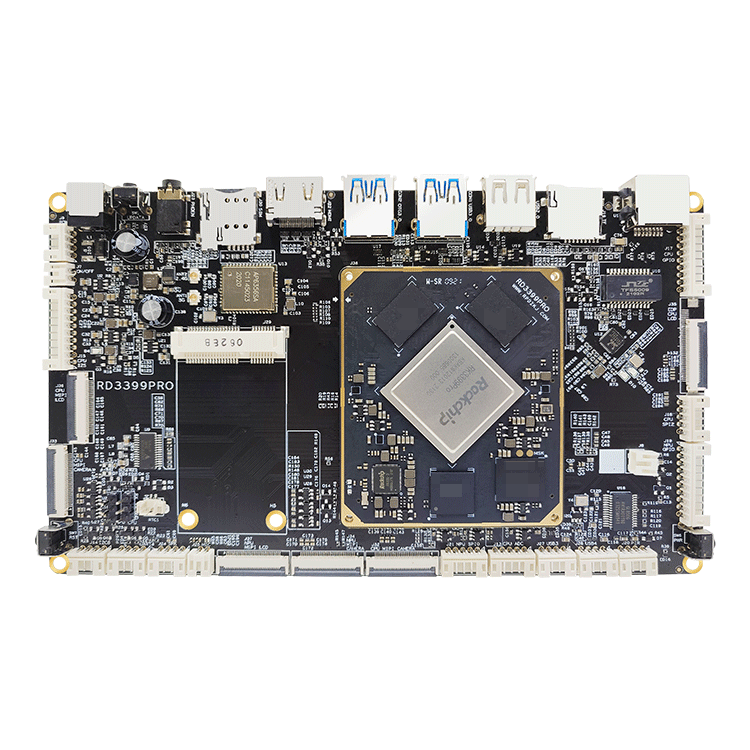

(RD3399pro Front view of development board)
PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 180mm x Wide 106mm x High 14mm |
| CPU | ROCKCHIP RK3399pro Six core Main frequency 1.8GHz |
| NPU | 3.0TOPs calculation office |
| GPU | Mali-T860 MP4 GPU |
| CPU RAM | LPDDR4 standard 2GB (4GB batch optional) |
| NPU RAM | LPDDR3 standard 1GB (2GB batch optional) |
| Storage | EMMC standard 16GB (8GB/32GB/64GB batch optional) |
| Power management | RK809-3 supports standby, key switch machine |
| Working voltage | Input voltage 12V, maximum power is less than 8W (without connecting any peripherals) |
| Support system | support 5 major operating systems android 9.0/linux+qt5.9/ ubuntu16.04/debian9/fedora28 |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Ethernet | 1 way GMAC PHY interface |
| USB interface | 5 way USB,3 external plug-in,one OTG,2 way interpolate |
| UART Serial port | 2 way TTL 3.3V level,among them 1 way Debug |
| GPIO interface | 9 way available GPIO |
| SDIO interface | 2 way SDIO interface,1 way TF card, the other is connected to WIFI |
| ADC interface | 4 way ADC interface |
| I2C interface | 1 way I2C interface |
| IR infrared interface | 1 way IR infrared interface |
| SPI interface | 1 way SPI interface |
| MIPI DSI display | 2 way MIPI DSI can support two-way, can also split two single-way |
| eDP display | Support eDP1.3 4-wire 10.8Gbps |
| HDMI display | 1 way HDMI output 1920x1080 1080P 60fps |
| I2S interface | Support 8-channel I2S interface output |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| Voice output | 1 way left and right channel headphone output, 2W power amplifier externally attached to the bottom plate |
| Voice input | 1 way microphone input |
| Output power | Multi-channel power output 3.3V 5V 12V |
| System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 165mA | -- | -- | |
power supply current (no other peripherals connected) | Working current | 185mA | 298mA | 615mA |
| Play sound | 325mA | 321mA | 425mA | |
| Connect HDMI boot current | 345mA | 345mA | 635mA | |
power supply current (connect display screen) | MIPI 1024*600 | 265mA | 465mA | 656mA |
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
