CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

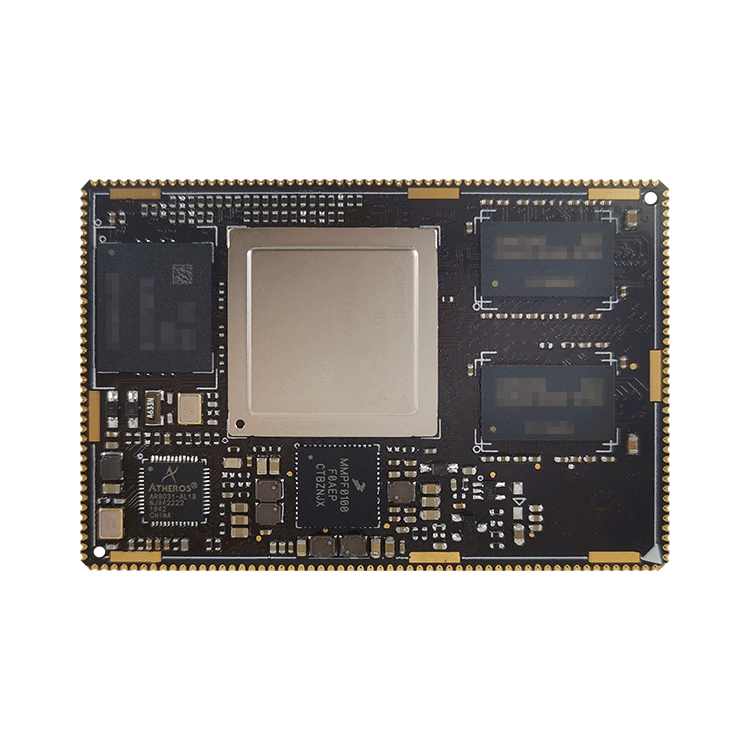

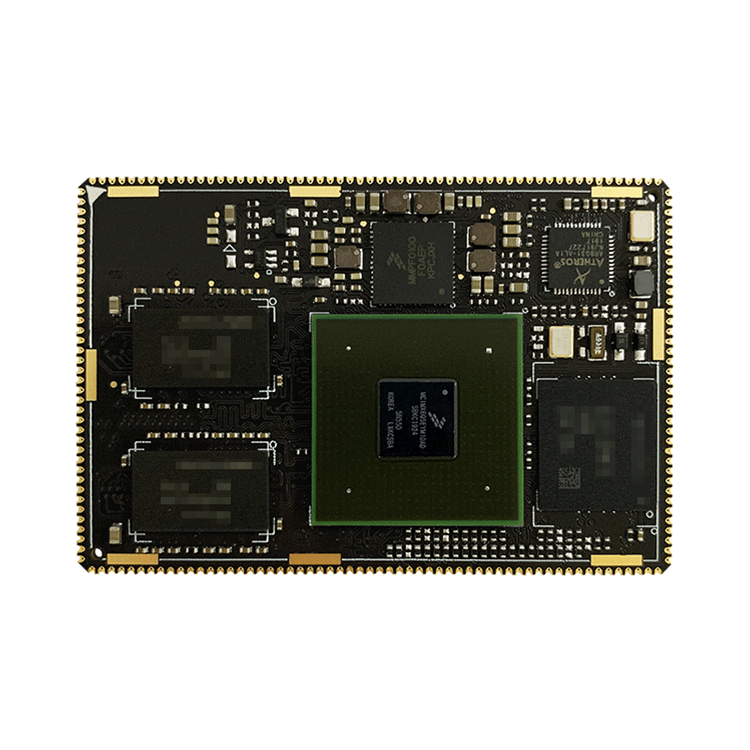

PRODUCT DISPLAY
HARDWARE INDEX
| size | 60mm long x 40mm wide x 3.2mm high |
| CPU | Freescale i.MX6 quad-core A9 |
| GPU | GC2000 |
| Memory | DDR3 standard 2GB (1GB batch optional) |
| memory | eMMC 5.1 comes standard with 16GB (8GB batch optional) |
| Power management | MMPF0110N |
| Working voltage | 5V 1.5A or more |
| Support system | Android/ubuntu/linux+QT |
| operating temperature | -10 to +75 degrees |
| life | Continuous operation life is more than 5 years |
COMMONINTERFACE
| HDMI | HDMI high-definition output supports 1080P display |
| MIPI DSI | Support 2 Lane, up to 1280x800 |
| LVDS | Support dual 8 LVDS display |
| RGB | Support RGB888 1920x1080 RGB display |
| MIPI CSI | Support 4 Lane, support up to 500W |
| DVP CAMERA | Support DVP camera up to 500W |
| I2S | One I2S interface |
| SPDIF | One SPDIF output |
| USB2.0 | Two USB2.0 channels, one of which is OTG |
| SATA | Support SATA2.0 hard disk interface |
| PCIE | Support x1 PCIE interface |
| Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
| UART | 5-way serial port |
| I2C interface | 3-way I2C interface |
| SPI interface | 5-way SPI interface |
| PWM | 3-way PWM |
| CAN | 2-way CAN bus |
| TF | 1 way TF card |
| SDIO | 1 channel SDIO interface |
| GPIO | Reusable GPIO up to 92 |
CORRENT PARAMETER TABLE
| project | smallest | typical | maximum | |
| Power parameters | Voltage | 4.5V | 5V | 5.5V |
| ripple | -- | 50mV | 120mV | |
| current | 215mA | -- | -- | |
Supply current (No other peripherals connected) | Start-up current | 221mA | 360mA | 920mA |
| Quiescent current | 285mA | |||
| Standby current | 17mA | |||
Supply current (connected to display screen) | ||||
| environment | relative humidity | -- | 65% | 75% |
| working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
Note 1: When connecting to an LVDS screen, be sure to select the correct backlight operating voltage of 3.3V or 5V. Users should not apply it to peripherals that exceed the corresponding maximum current.
Note 2: When connected to a MIPI screen, the overall operating current and standby current of the board depend on the connected screen and are not listed in the above table.
