CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

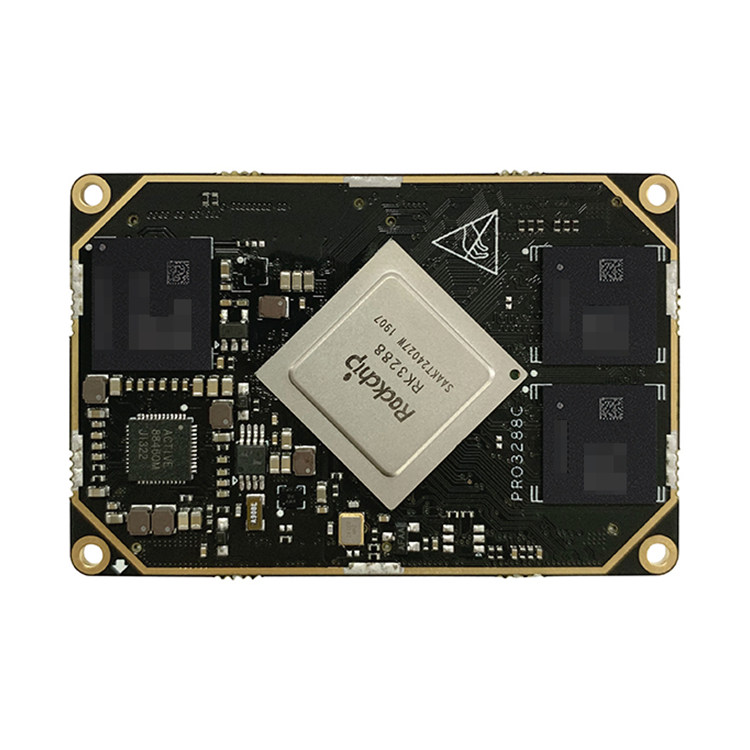

PRODUCT DISPLAY
HARDWARE INDEX
| size | Length 60mm x Width 40mm x Height 4.2mm |
| Connection method | Board to Board Connector |
| CPU | ROCKCHIP RK3288 quad core A17 |
| GPU | Mali T746 |
| RAM | LPDDR3 comes standard with 2GB (1GB/4GB bulk optional) |
| Memory | eMMC 5.1 comes standard with 8GB (16GB/32GB/64GB/128GB batch optional) |
| Power management | ACT8847 |
| Operating Voltage | 5V 1.5A or more |
| support system | Android/ubuntu/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB2.0 | 3 USB2.0, one of which is OTG |
| UART serial port | 5 serial ports |
| GPIO interface | Reusable GPIO up to 135 |
| PWM interface | 4-channel PWM |
| MIPI DSI display | Support 8 Lane, up to 2K/4K |
| MIPI CSI display | 2-channel CSI, up to two-channel 1300W |
| LVDS display | Support dual 8LVDS display output up to 1080P |
| RGB display | Support RGB888 display output up to 1080P |
| HDMI display | HDMI HD output supports 4K/1080P display |
| EDP | Support 4Lane eDP up to 1080P |
| I2S | 1 channel I2S interface |
| TF card | 1 way TF card |
| SDIO interface | 1 SDIO interface |
| ADC interface | 3 analog ADC input interface |
| I2C interface | 5-way I2C interface |
| SPI interface | 3 way SPI interface |
| Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
| System Upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
power supply current (no other peripherals connected) | Working current | 135mA | 298mA | 765mA |
| Play sound | 265mA | |||
| Connect HDMI boot current | 305mA | |||
power supply current (connect display screen) | 5 inch 720*1280 | 406mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
HARDWARE INDEX
| size | Length 60mm x Width 40mm x Height 4.2mm |
| Connection method | Board to Board Connector |
| CPU | ROCKCHIP RK3288 quad core A17 |
| GPU | Mali T746 |
| RAM | LPDDR3 comes standard with 2GB (1GB/4GB bulk optional) |
| Memory | eMMC 5.1 comes standard with 8GB (16GB/32GB/64GB/128GB batch optional) |
| Power management | ACT8847 |
| Operating Voltage | 5V 1.5A or more |
| support system | Android/ubuntu/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB2.0 | 3 USB2.0, one of which is OTG |
| UART serial port | 5 serial ports |
| GPIO interface | Reusable GPIO up to 135 |
| PWM interface | 4-channel PWM |
| MIPI DSI display | Support 8 Lane, up to 2K/4K |
| MIPI CSI display | 2-channel CSI, up to two-channel 1300W |
| LVDS display | Support dual 8LVDS display output up to 1080P |
| RGB display | Support RGB888 display output up to 1080P |
| HDMI display | HDMI HD output supports 4K/1080P display |
| EDP | Support 4Lane eDP up to 1080P |
| I2S | 1 channel I2S interface |
| TF card | 1 way TF card |
| SDIO interface | 1 SDIO interface |
| ADC interface | 3 analog ADC input interface |
| I2C interface | 5-way I2C interface |
| SPI interface | 3 way SPI interface |
| Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
| System Upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
power supply current (no other peripherals connected) | Working current | 135mA | 298mA | 765mA |
| Play sound | 265mA | |||
| Connect HDMI boot current | 305mA | |||
power supply current (connect display screen) | 5 inch 720*1280 | 406mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
