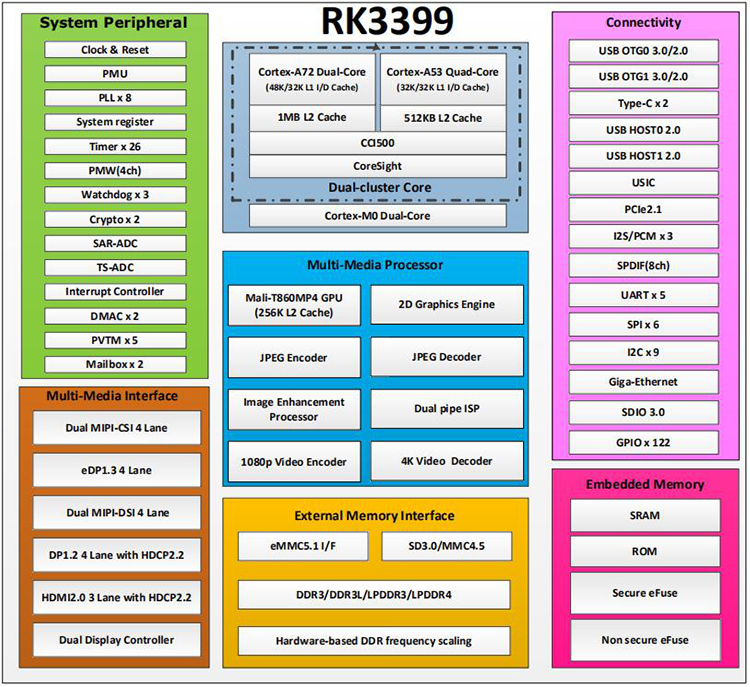

CPU BLOCK DIAGRAM

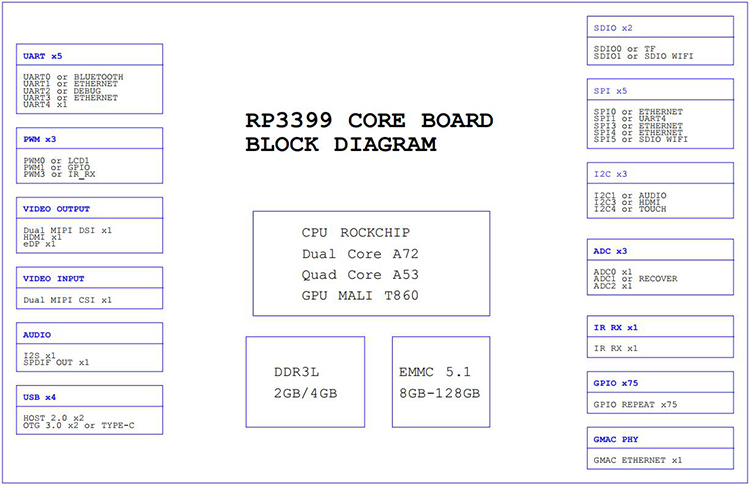

CORE BOARD BLOCK DIAGRAM

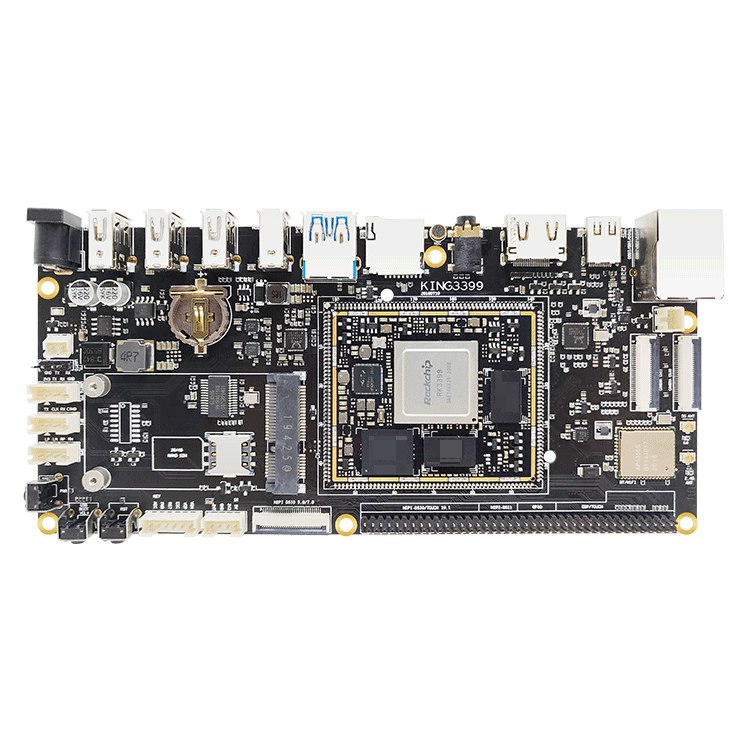

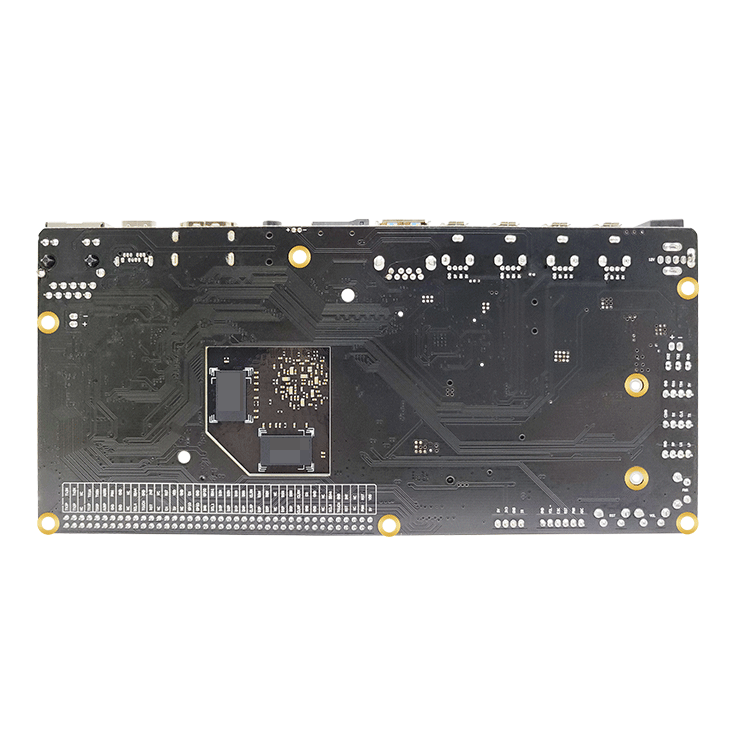

PRODUCT DISPLAY

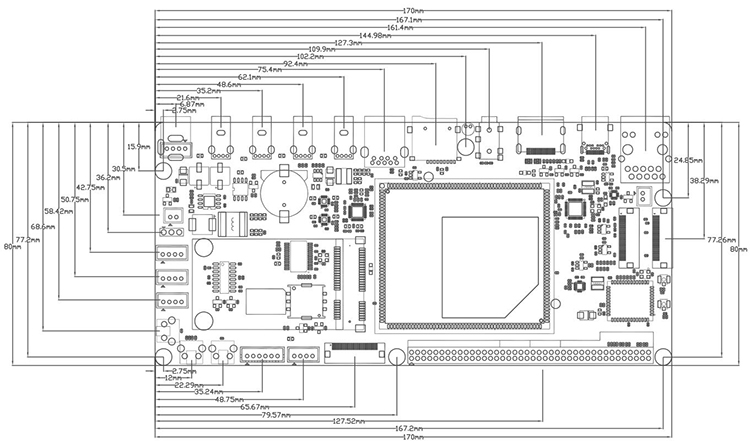

PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 170mm x Wide 80mm x High 14mm |
| CPU | ROCKCHIP RK3399 Six core A72 dual+A53 four |
| GPU | Mali T860 MP4 |
| RAM | DDR3 standard 2GB (4GB batch optional) |
| Storage | EMMC 5.1 standard 16GB (8GB/32GB/64GB batch optional) |
| Power management | RK808-D |
| Working voltage | 12V 2A or more |
| Support system | Android/Ubuntu/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Ethernet | 1 way 10M/100M/1000M |
| USB HOST | 5 way USB interface,among them 1 way 3.0 |
| TYPE-C | 1 way TYPE-C interface |
| Serial port | 2 way TTL 3.3V level,among them 1 way Debug |
| MIPI DSI display | 4 lane up to 1920x1080 |
| MIPI CSI input | 2 way cameras can support dual MIPI raw data input |
| eDP display | 4 lane up to 1920x1080 |
| HDMI output | HDMI 2.0 supports 4K output(Can be different from eDP or LVDS) |
| TF card | Support TF card |
| WIFI | WIFI 2.4G / 5G dual frequency |
| BLUETOOTH | 1 way 2.4G BLUETOOTH+BLE |
| GPIO interface | 8 way IO |
| 3G/4G | External 4G function, PCI-E 3G/4G Internet access |
| GPS | External GPS (optional) |
| Voice output | 1 way headphone left and right channel output, 2 speaker output 2W / 8 Euro |
| Voice input | 1 way microphone input |
| RTC real-time clock | External button battery supports saving of power-off time |
| System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 212mA | -- | -- | |
Power supply current (no other peripherals connected) | Working current | 223mA | 369mA | 912mA |
| Play sound | 321mA | |||
| Connect HDMI boot current | 345mA | |||
Power supply current (Connect display screen) | 5 inch 720*1280 | 465mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
