Product properties

Rockchip RD3399 expansion board

SHENZHEN RONGPIN ELECTRONIC TECHNOLOGY CO.,LTD.

Contact information: 0755-235747363

Address: 3rd Floor, Block A, Phase II, Huafeng International Robot Industrial Park, Xixiang Street, Baoan District, Shenzhen (Gushu Metro Exit C)

Product description

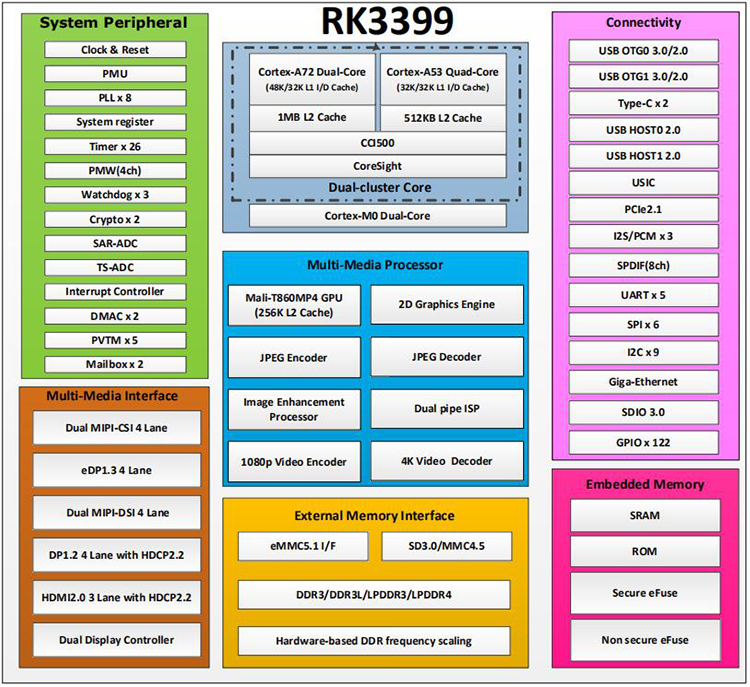

CPU BLOCK DIAGRAM

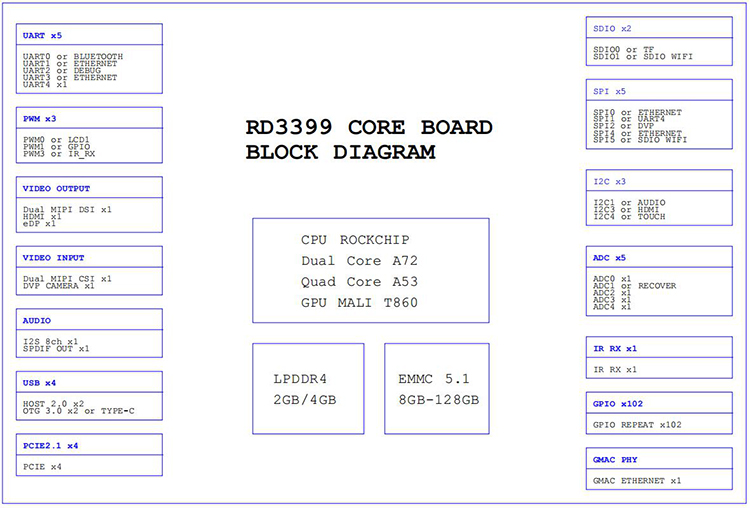

CORE BOARD BLOCK DIAGRAM

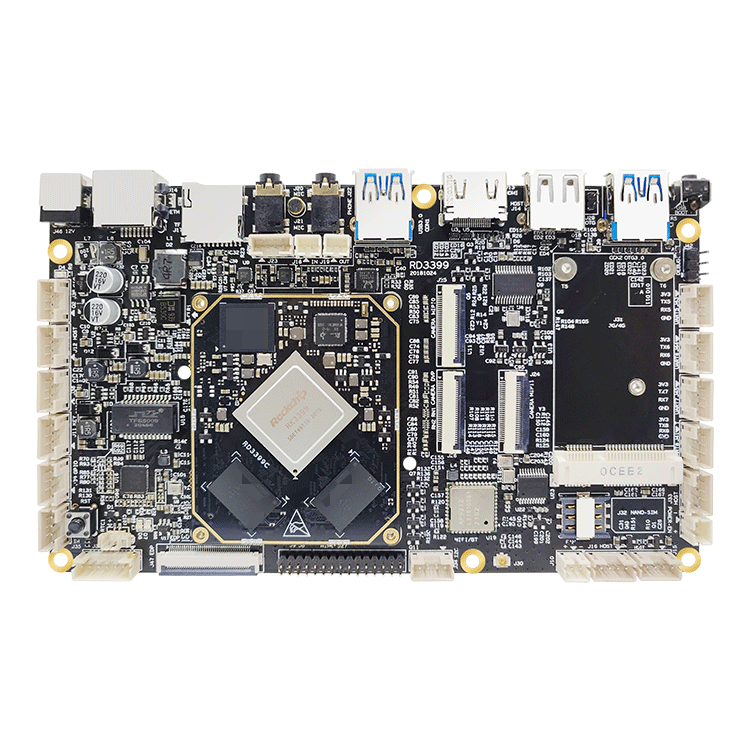

PRODUCT DISPLAY

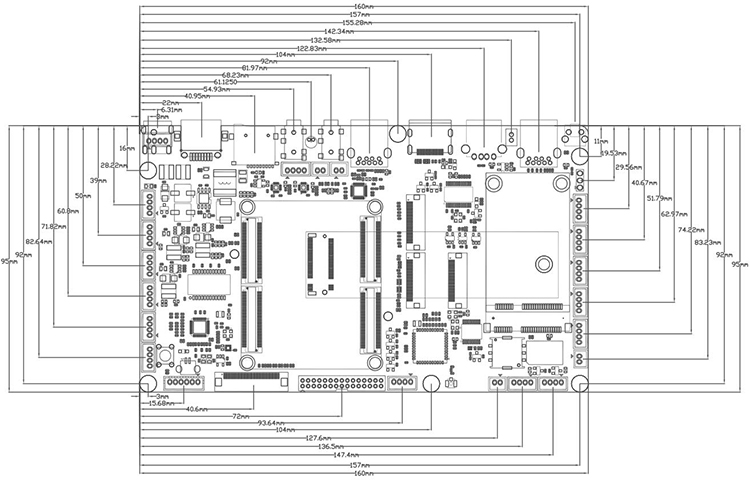

PCB SIZE DRAWING

HARDWARE INDEX

Size	Long 160mm x Wide 95mm x High 14mm

CPU	ROCKCHIP RK3399 Six core A72 dual+A53 four
GPU	Mali T860 MP4
RAM	LPDDR4 standard 2GB (4GB batch optional)
Storage	EMMC 5.1 standard 8GB (16GB/32GB/64GB batch optional)
Power management	RK808-D
Working voltage	12V 2A or more
Support system	Android/Ubuntu/Linux+QT
Operating temperature	-10 to +75 degrees
Life	Continuous operation life more than 5 years

COMMONINTERFACE

Ethernet	10M/100M/1000M
USB interface	6 way USB interface,2 external plug-in, one OTG, 4 internal plug-in
PCIE	1 way PCIE×4 interface
UART Serial port	5 way TTL 3.3V level,among them 1 way Debug
GPIO interface	9 way available GPIO
SDIO interface	2 way SDIO interface,1 way TF card, the other is connected to WIFI
ADC interface	2 way ADC interface
I2C interface	2 way I2C interface
IR infrared interface	1 way IR infrared interface
Camera interface	1 way 8-bit parallel DVP camera interface 720P 30fps
MIPI DSI display	1 way maximum 1920x1080 1080P 60fps
LVDS display	1 way LVDS maximum support 1920x1080 1080P 60fps
eDP display	1 way eDP display maximum 1920x1080 1080P 60fps
HDMI display	1 way HDMI output 1920x1080 1080P 60fps
WIFI	1 way 2.4G WIFI
BLUETOOTH	1 way 2.4G BLUETOOTH 4.0+BLE
4G	MINI PCIE interface supports 2G/3G/4G full Netcom
Voice output	1 way left and right channel headphone output, 2W power amplifier externally attached to the bottom plate
Voice input	1 way microphone input
Output power	Multi-channel power output 3.3V 5V 12V
System upgrade	Support local USB upgrade

CORRENT PARAMETER TABLE

Project		Minimum	Typical	Maximum
Power parameters	Voltage	6.5V	12V	15V
	Ripple	--	50mV	100mV
	Electric current	212mA	--	--
Power supply current (no other peripherals connected)	Working current	223mA	369mA	912mA
	Play sound		321mA
	Connect HDMI boot current		345mA
Power supply current (Connect display screen)	5 inch 720*1280		465mA
Environmental Science	Relative humidity	--	65%	75%
	Working temperature	-10℃	--	75℃
	Storage temperature	-30℃	-0℃	100℃
