CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PCB DIMENSION MAP

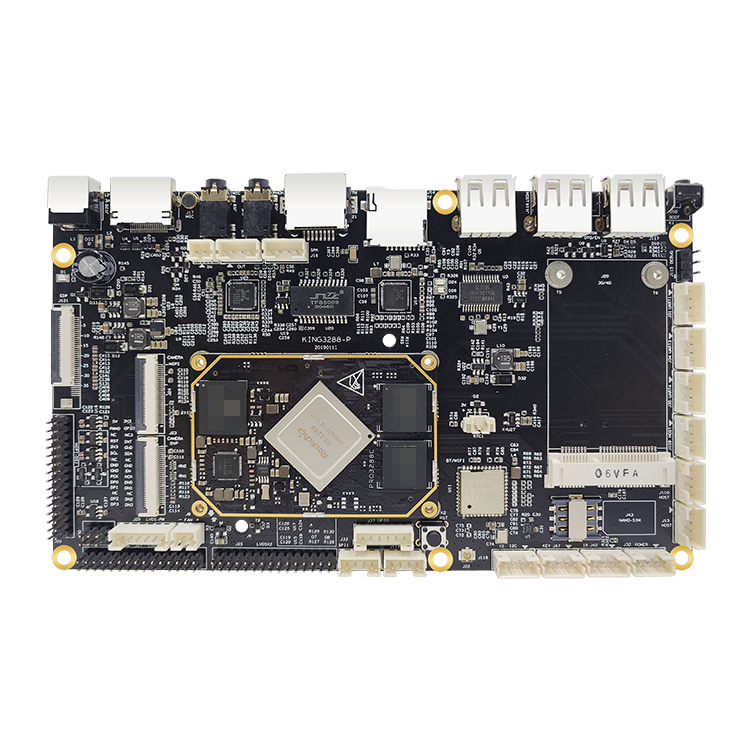

PRODUCT PICTURES
MAIN HARDWARE INDICATORS
| SIZE | 160mm*95mm*19mm |
| CPU | Rockchip Tetranuclear 32-bit Cortex A17 Maximum main frequency 1.8G |
| GPU | Mali-T764 |
| MEMORY | 2GB LPDDR3 Standard, 4GB LPDDR3 Matching |
| STORAGE | 8GB eMMC Standard, 4, 16, 32, 64 Matching |
| POWER MANAGEMENT | ACT8846 Support standby power-on button switch |
| WORKING VOLTAGE | Input 12V maximum power consumption 15W |
| PIN | Lead out all pin functions of CPU |
| OPERATING TEMPERATURE | Form -10℃ to 60℃ |
| STORAGE TEMPERATURE | Form -40℃ to +100℃ |
| SUPPORT SYSTEM | Android5.1/Ubuntu16.04 |
LIST OF COMMON INTERFACES
| SERIAL PORT | Four way |
| SPI | Two way，Maximum support for 25M data transmission |
| I2C | Three way |
| GPIO | Ten way，Independent use |
| SDIO | Two way SDIO0 TF Card，SDIO1 WIFI |
| PWM | Three way |
| ETHERNET | One Way GMAC 10/100/1000M Ethernet |
| I2S | One Way Supporting 8-channel digital voice input |
| CAMERA | Two way MIPI CSI All the way，Parallel Port DVP Camera All the Way |
| MIPI DSI | Two way Dual MIPI DSI supports maximum 4K output |
| LVDS | Two way Supporting dual LVDS output up to 1920*1080 |
| eDP DSI | One Way Maximum support for 2K output |
| USB 2.0 | Two way Second Way Independence HOST 2.0 |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
Power supply current (no other peripherals connected) | Working current | 135mA | 298mA | 765mA |
| Play sound | 265mA | |||
| Connect HDMI boot current | 305mA | |||
Power supply current (Connect display screen) | 5 inch 720*1280 | 406mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 60℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PCB DIMENSION MAP
PRODUCT PICTURES
MAIN HARDWARE INDICATORS
| SIZE | 160mm*95mm*19mm |
| CPU | Rockchip Tetranuclear 32-bit Cortex A17 Maximum main frequency 1.8G |
| GPU | Mali-T764 |
| MEMORY | 2GB LPDDR3 Standard, 4GB LPDDR3 Matching |
| STORAGE | 8GB eMMC Standard, 4, 16, 32, 64 Matching |
| POWER MANAGEMENT | ACT8846 Support standby power-on button switch |
| WORKING VOLTAGE | Input 12V maximum power consumption 15W |
| PIN | Lead out all pin functions of CPU |
| OPERATING TEMPERATURE | Form -10℃ to 60℃ |
| STORAGE TEMPERATURE | Form -40℃ to +100℃ |
| SUPPORT SYSTEM | Android5.1/Ubuntu16.04 |
LIST OF COMMON INTERFACES
| SERIAL PORT | Four way |
| SPI | Two way，Maximum support for 25M data transmission |
| I2C | Three way |
| GPIO | Ten way，Independent use |
| SDIO | Two way SDIO0 TF Card，SDIO1 WIFI |
| PWM | Three way |
| ETHERNET | One Way GMAC 10/100/1000M Ethernet |
| I2S | One Way Supporting 8-channel digital voice input |
| CAMERA | Two way MIPI CSI All the way，Parallel Port DVP Camera All the Way |
| MIPI DSI | Two way Dual MIPI DSI supports maximum 4K output |
| LVDS | Two way Supporting dual LVDS output up to 1920*1080 |
| eDP DSI | One Way Maximum support for 2K output |
| USB 2.0 | Two way Second Way Independence HOST 2.0 |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
Power supply current (no other peripherals connected) | Working current | 135mA | 298mA | 765mA |
| Play sound | 265mA | |||
| Connect HDMI boot current | 305mA | |||
Power supply current (Connect display screen) | 5 inch 720*1280 | 406mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 60℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
