CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

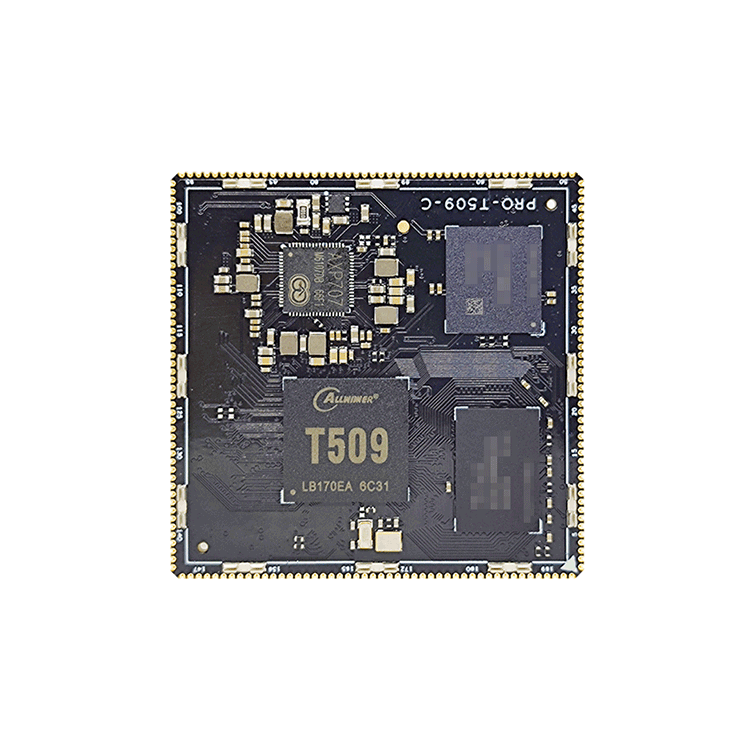

PRODUCT DISPLAY
HARDWARE INDEX
Main hardware indicators | |
size | 50mm long x 50mm wide x 3mm high |
CPU | Allwinner T509 quad-core clocked at 1.5GHz |
GPU | GE8300GPU |
Memory | LPDDR4 comes standard with 2G (1G/4G optional in batches) |
memory | eMMC comes standard with 8G (4G/16G/32G/64G optional in batches) |
Power management | AXP707 supports standby and key on/off Support charging and discharging, 3.7V power detection |
Working voltage | Input voltage 5V, maximum power less than 2W (no peripherals connected) |
Support system | Andriod10 |
operating temperature | -10 to +75 degrees |
life | Continuous operation life is more than 5 years |
COMMONINTERFACE
Common interfaces for core boards | |
USB interface | 2 independent channels, one of which is OTG |
UART serial port | 7 channels of TTL 3.3V level, one of which is Debug |
GPIO interface | 140 channels of GPIO (note: with multiplexing function) |
PWM interface | 15 channels of PWM 3.3V level (note: with multiplexing function) |
LVDS display | 2-way LVDS supports up to 1920x1080 1080P 60fps |
RGB display | 1 RGB 888 output supports up to 1920x1080 1080P 60fps |
MIPI display | 1 MIPI display output supports 1920x1080 60fps output |
Voice output | 1 channel left and right channel output, 5W power amplifier installed on the bottom panel |
SDIO interface | 3-way SDIO interface, one for TF card, and the other for WIFI |
ADC interface | 3-way ADC interface |
I2C interface | 5-way I2C interface |
SPI interface | 3-way SPI interface |
Ethernet | Two-way Ethernet, GMAC and EMAC PHY interfaces |
Output power | Multiple power outputs 1.8V 3.3V |
System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
project | smallest | typical | maximum | |
Power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | 120mV | |
current | 162mA | -- | -- | |
Supply current (No other peripherals connected) | Start-up current | 165mA | 229mA | 376mA |
play sound | 172mA | 192mA | 319mA | |
Supply current (connected to display screen) | LVDS 1024x600 | 325mA | 362mA | 475mA |
environment | relative humidity | -- | 65% | 75% |
working temperature | -10℃ | -- | 75℃ | |
Storage temperature | -30℃ | -0℃ | 100℃ | |
