size

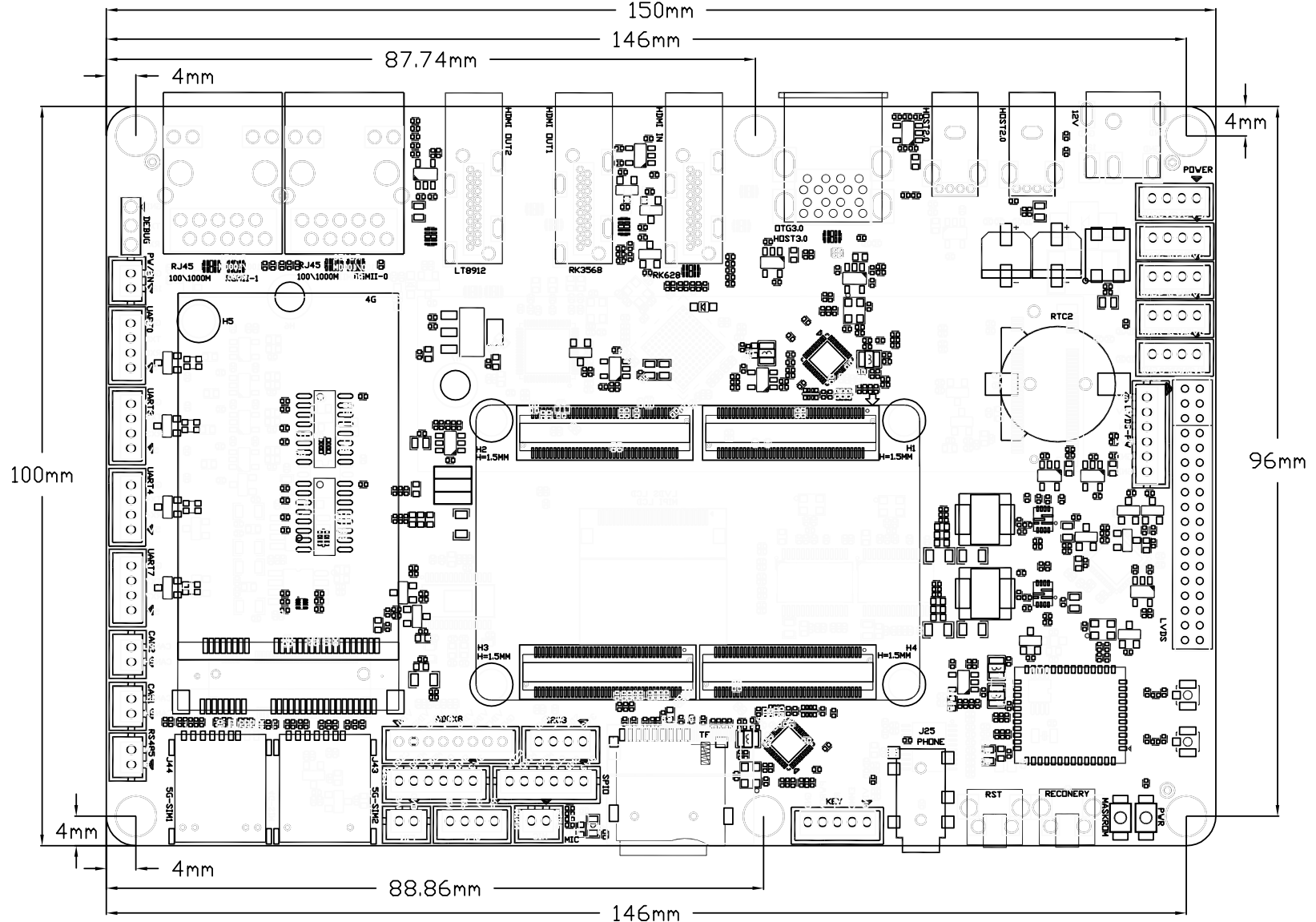

150mm long*100mm wide*14mm high

Connection method

Board to Board Connector

CPU

ROCKCHIP RK3568 Quad-core A55
ROCKCHIP RK3568B2 Quad-core A55
ROCKCHIP RK3568J Quad-core A55

GPU

Mali G52

Memory

LPDDR4 standard 2GB/4GB/8GB

memory

EMMC 5.1 comes standard with 8GB/32G/64G

Power management

RK809-5

Working voltage

12V 2A or more

Support system

Andriod13/Debian11/Buildroot+ QT5.15/Ubuntu20.04/Open Harmony4.0

operating temperature

-10 to +75 degrees

USB 2.0

6 USB channels, 2 external standard USB channels, 4 internal USB channels

USB 3.0

2 external standard USB 3.0 interfaces, one of which is OTG 3.0

serial port

5-way TTL serial port, one of which is DEBUG

HDMI1 display

Support 4K/1080P

HDMI2 display

Support 1080P

EDP display

Support EDP display output up to 1080P

LVDS display

Support dual 8 LVDS display output up to 1920x1080

MIPI DSI display

1 channel DSI display output up to 2K

Ethernet

2 channels with RGMII Ethernet 10M/100M/1000M

Voice output

1 channel earphone left and right channel output, 2 channel speaker output 5W/8 ohm

Voice input

1 microphone input

CAN

2-way CAN bus

RS485

1 channel RS485

M.2

Supports one M.2 solid-state drive interface

5G

Supports one PCIE 5G module interface

TF card

TF card interface maximum 128G

WIFI

AP6275P WIFI6

Bluetooth

AP6275P Bluetooth 5.0

SPI

2-way SPI interface

I2C

2-way I2C interface

GPS

External GPS (optional)

ADC

8 ADC inputs

3G/4G

4G function, PCI-E 3G/4G Internet access

RTC real time clock

HYM8563 external button battery supports power-down time saving

System upgrade

Support local USB upgrade

Power parameters

Voltage

11V

12V

18V

ripple

50mV

3V RTC power consumption

0.9uA

Motherboard current test

(No other peripherals connected)

Start-up current

223mA

295mA

565mA

Desktop quiescent current

285mA

environment

relative humidity

--

65%

75%

working temperature

-10℃

--

75℃

Storage temperature

-30℃

-0℃

100℃
