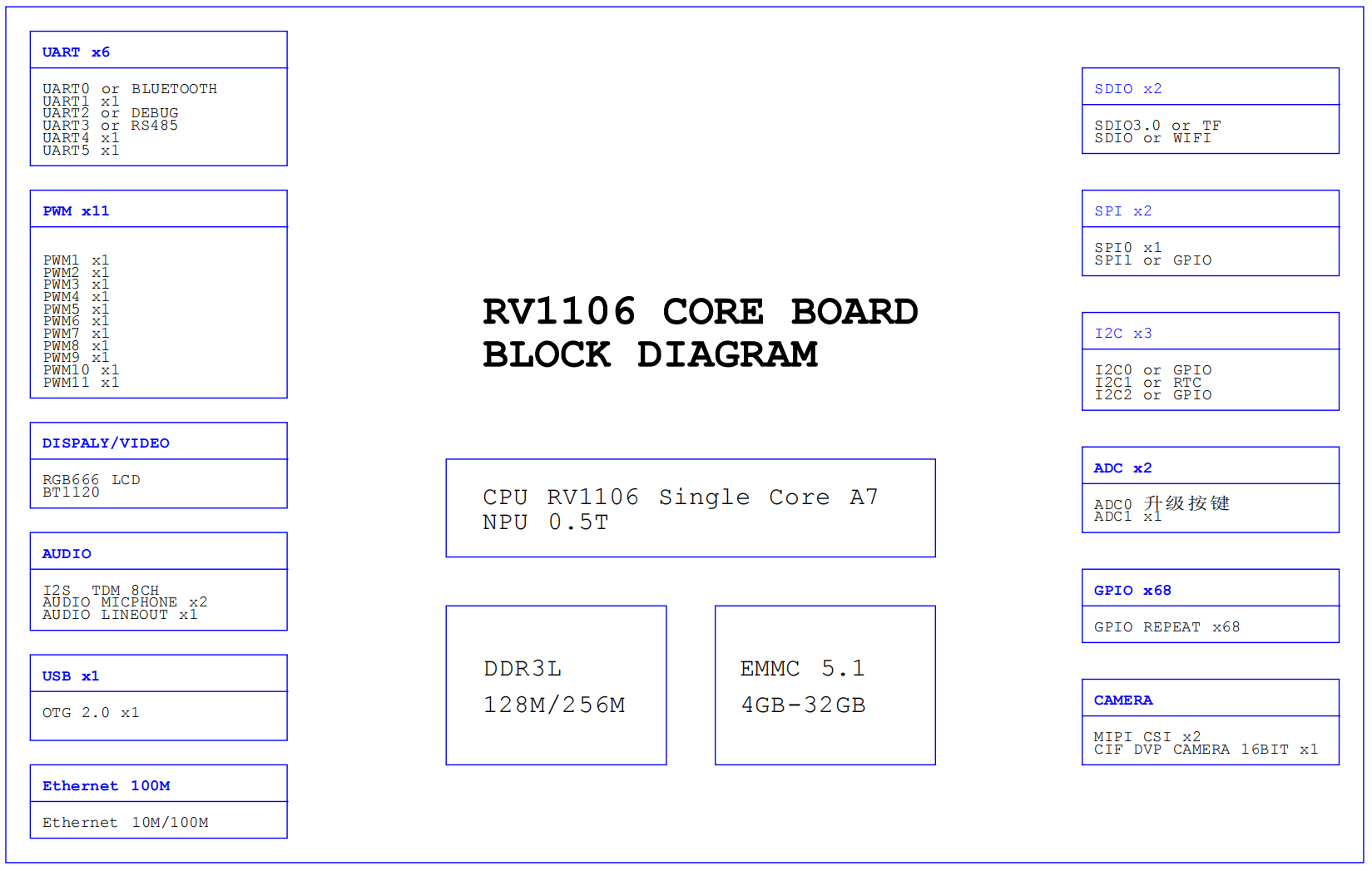

CPU BLOCK DIAGRAM

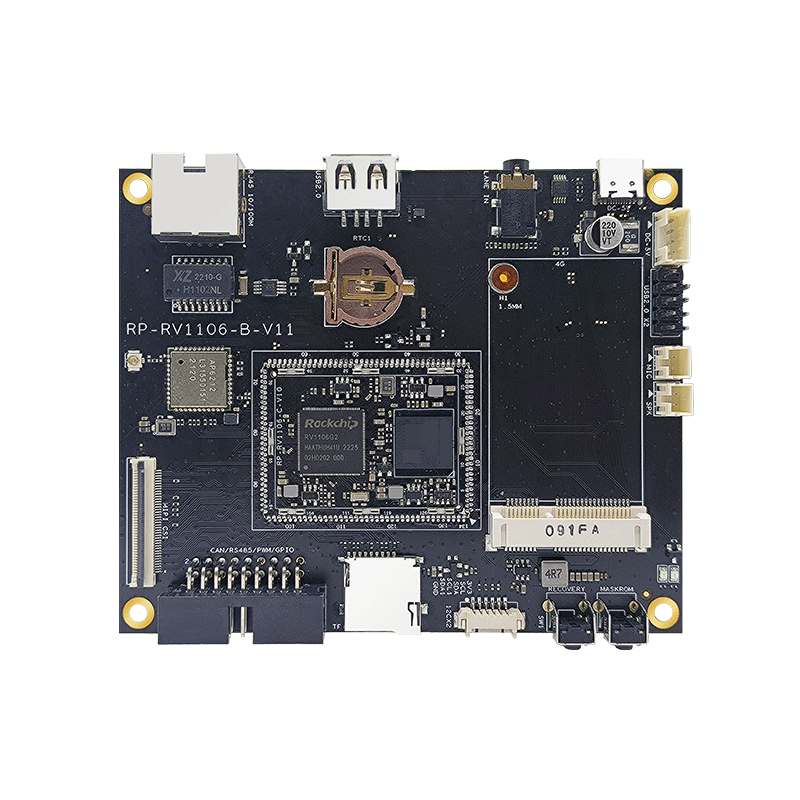

PRODUCT DISPLAY

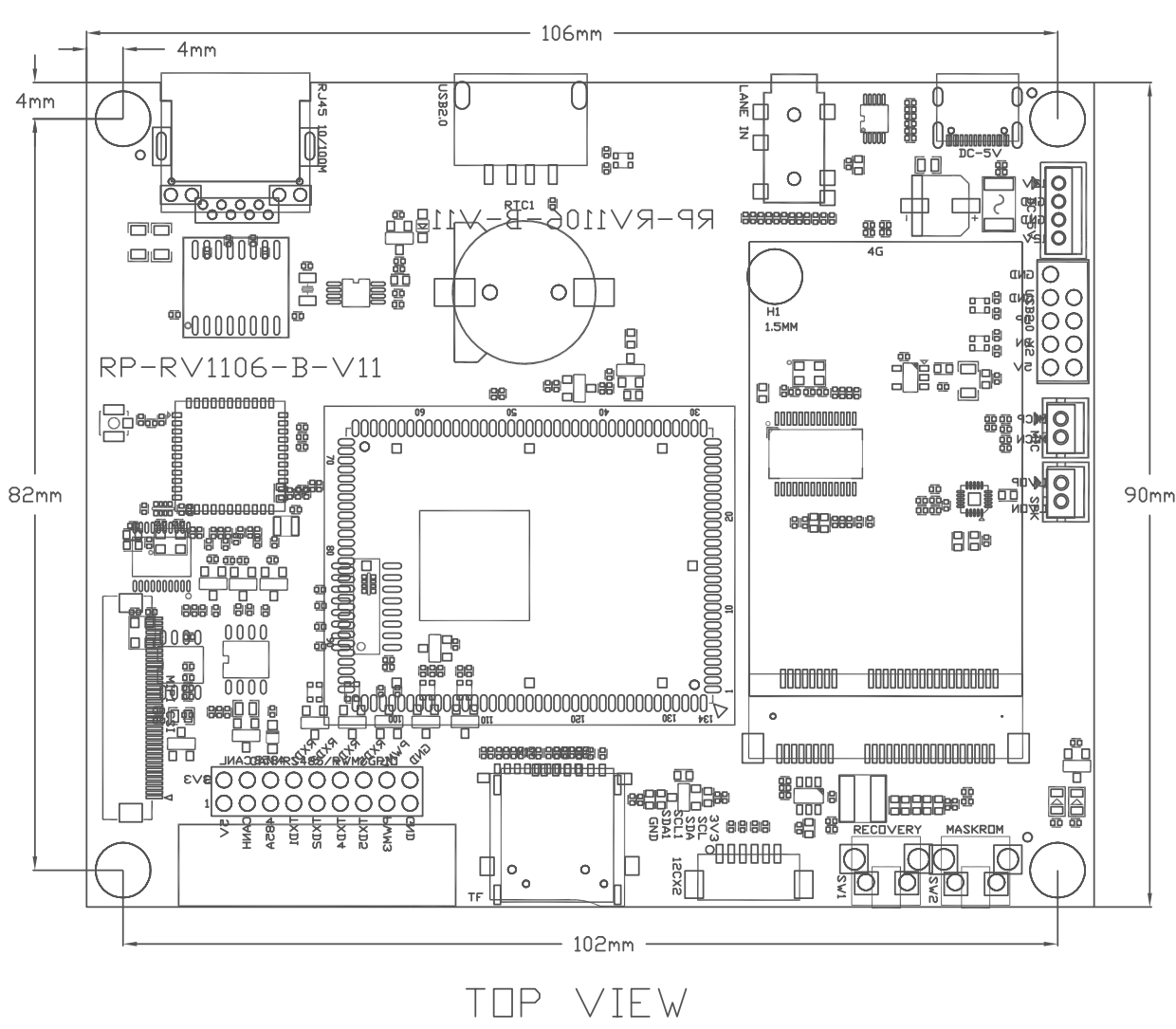

PCB SIZE DRAWING
PRODUCT DISPLAY
HARDWARE INDEX
main hardware indicators | |
size | length 110mm x width 90mm x height 14mm |
CPU | ruichip rv1106 single-core a7+mcu |
NPU | 0.5 tops npu |
Memory | built-in ddr3 standard 128mb (optional 256mb) |
memory | emmc standard 4g (16g/32g batch optional) |
power management | discrete power design |
operating voltage | input voltage 5v, maximum power less than 1.5w (without any peripherals) |
support system | linux5.10.66 |
operating temperature | -10 to +75 degrees |
COMMONINTERFACE
backplane common interface | |
usb interface | 4-way usb, standard a-port 3-way (one-way otg), plug-in 1-way |
uart serial port | 5 channels of ttl 3.3v level (can add chip rs232), one of which is debug |
pwm interface | 3-way pwm 3.3v level |
sdio interface | 2 sdio interfaces, one tf card, the other wifi |
gpio interface | 9 channels available gpio |
adc interface | 2 adc interfaces |
i2c interface | 2-way i2c interface |
camera interface | 2 way mipi csi camera input |
fill light | 2-way controllable fill light, 1 way is infrared light, 1 way is white light |
voice input | 1 way silicon microphone input, another way lane in input |
voice output | 1 left and right channel output, 5w power amplifier on the bottom board |
WiFi | support dual-band 2.4g/5g ap6256 |
Bluetooth | support bluetooth 5.0, support ble mode |
ethernet | connect rgmii 100/1000m phy rtl8211f chip by default |
4G | support 4g full netcom module pcie interface |
output power | multiple power output 3.3v 5v 12v |
system upgrade | support local usb upgrade |
RTC | button battery interface |
CORRENT PARAMETER TABLE
project | the smallest | typical | maximum | |
power parameters | Voltage | 4.4 | 5V | 5.5V |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
with backplane current test | boot current | 35mA | 69mA | 165mA |
desktop quiescent current | 70mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -10°C | -- | 75°C | |
storage temperature | -30°C | -0°C | 100°C | |
