CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

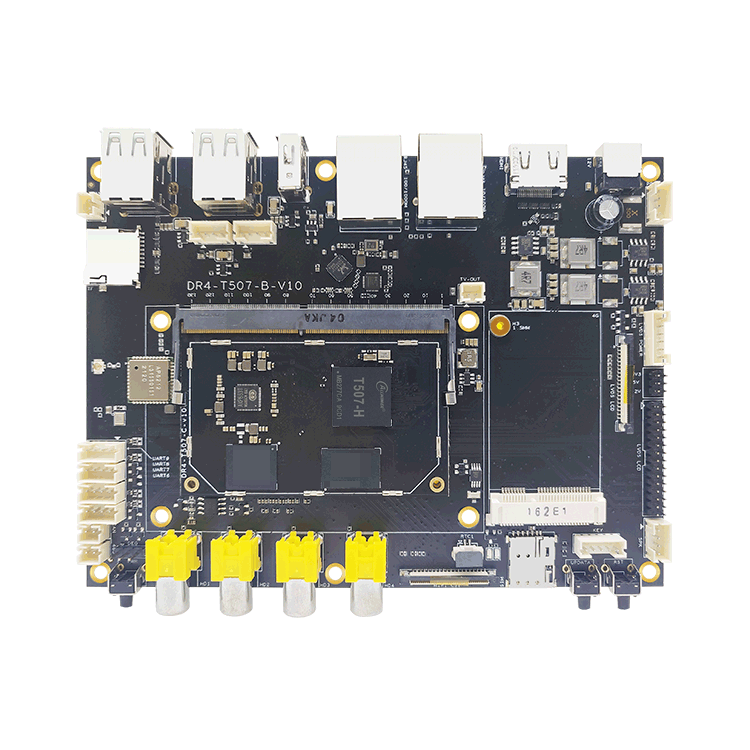

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
main hardware indicators | |
size | l155mm x w115mm x h14mm |
CPU | allwinner t507 quad-core a53 clocked at 1.5ghz |
GPU | mali-400 g31 gpu |
Memory | lddr4 standard 2g (1g/2gb batch optional) |
memory | emmc standard 8g (16g/32g/64g batch optional) |
power management | axp853t supports standby, key switch |
operating voltage | the input voltage is 12v and the maximum power is less than 3w (without any peripherals) |
support system | android/linux+qt/ubuntu |
operating temperature | -10 to +75 degrees |
life | continuous operating life is more than 5 years |
COMMONINTERFACE
common interfaces on the backplane | |
usb interface | 7-way usb, 5-way external plug, one of which is otg, 2-way internal plug |
uart serial port | 5-way ttl 3.3v level, one of which is debug |
sdio interface | 2 sdio interfaces, one tf card, the other connected to wifi |
4G | mini pcie interface supports 2g/3g/4g full netcom |
lvds display | 1 channel lvds maximum support 1920x1080 1080p 60fps |
hdmi display | 1 hdmi output supports up to 4k 60fps |
cvbs output | 1 cvbs output |
AHD | 4ch ahd 1080p 30fps input |
mipi csi input | support 4lane mipi csi input |
voice output | 1 channel left and right channel output, 5w power amplifier attached to the bottom plate |
fast ethernet | 100m rmii ethernet |
gigabit ethernet | 100m/1000m rgmii ethernet |
output power | multi-channel power output 3.3v 5v 12v |
system upgrade | support local usb upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | 120mV | |
current | 162mA | -- | -- | |
supply current (no other peripherals connected) | turn-on current | 165mA | 229mA | 376mA |
play sound | 172mA | 192mA | 319mA | |
supply current (connected to the display) | lvds 1024x600 | 325mA | 362mA | 475mA |
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
