CPU BLOCK DIAGRAM

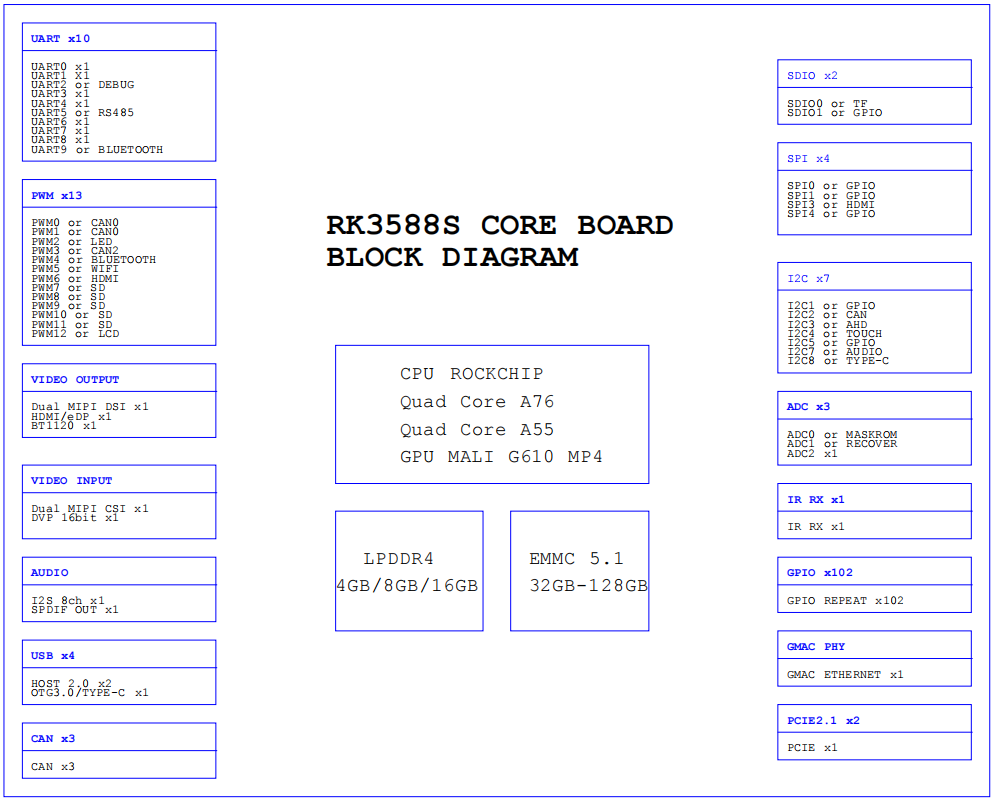

CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY

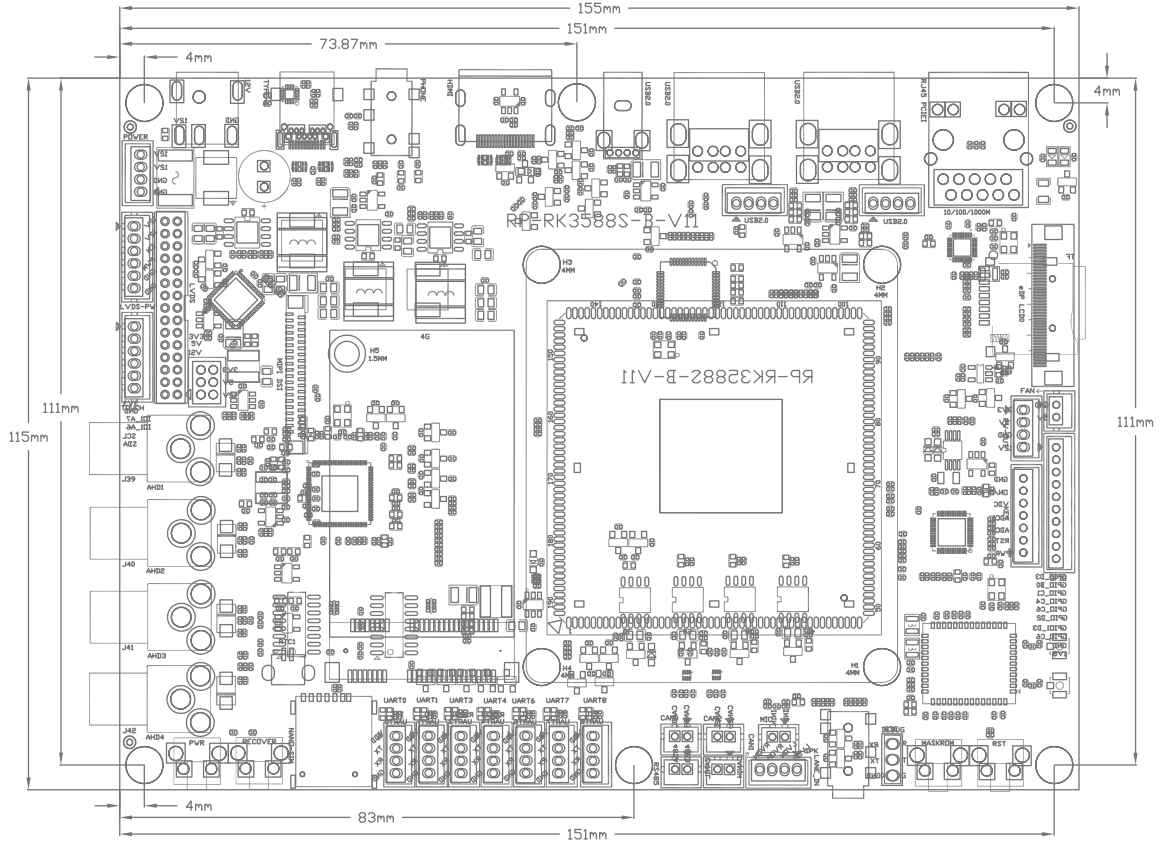

PCB SIZE DRAWING
HARDWARE INDEX
main hardware parameters | |
motherboard size | 155mm long*115mm wide*17mm high |
CPU | rockchip rk3588 octa core (a76+a55) |
NPU | 6t computing power neural network unit |
GPU | arm g61 mp4 |
Memory | lpddr4x can be configured with 4gb/8gb/16gb |
memory | emmc 5.1 can be configured with 32gb/64gb/128gb |
power management | RK809-1 |
operating voltage | above 12v 2a |
support system | andriod12/ubuntu18.04/linux5.10+qt5.15/debian11 |
operating temperature | -10 to +75 degrees |
life | continuous operating life is more than 5 years |
COMMONINTERFACE
common interface of motherboard | |
USB HOST | 8 usb ports (5 external, 2 internal, 1 type-c) |
serial port | 7 serial ports, 4 of which can be set to rs232 or ttl, and one of which is debug |
I2C | 1 way I2C |
CAN | 3-way can bus |
RS485 | 1 channel rs485 |
GPIO | 8 available gpio |
hdmi output | 1 hdmi output, supports up to 4k (multiplexed with edp) |
AHD input | support 4-way 720p ahd input |
mipi dsi display | support 2-way mipi dsi display |
edp display | 2-channel edp display interface (multiplexed with hdmi) |
lvds display | support single-channel dual-channel lvds output, up to 1920x1080 |
voice output | 1-way headphone left and right channel output, 2-way speaker output 3w/8 ohm |
voice input | 1-way microphone input |
Ethernet | support one gigabit ethernet (pcie) |
WIFI | support wifi 6 (ap6275) |
Bluetooth | 1 channel 5.0g bluetooth+ble(ap6275) |
RTC | external rtc chip (hym8563) power consumption is less than 0.2ua |
4G | built-in 4g module, support quectel and zhanrui |
TF card | support tf card |
rtc real time clock | external button battery supports power-down time saving (independent hym8563) |
system upgrade | support local usb upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 6.5 | 12V | 15 |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
including backplane current test | turn-on current | 165mA | 275mA | 652mA |
desktop quiescent current | 195mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
main hardware parameters | |
motherboard size | 155mm long*115mm wide*17mm high |
CPU | rockchip rk3588 octa core (a76+a55) |
NPU | 6t computing power neural network unit |
GPU | arm g61 mp4 |
Memory | lpddr4x can be configured with 4gb/8gb/16gb |
memory | emmc 5.1 can be configured with 32gb/64gb/128gb |
power management | RK809-1 |
operating voltage | above 12v 2a |
support system | andriod12/ubuntu18.04/linux5.10+qt5.15/debian11 |
operating temperature | -10 to +75 degrees |
life | continuous operating life is more than 5 years |
COMMONINTERFACE
common interface of motherboard | |
USB HOST | 8 usb ports (5 external, 2 internal, 1 type-c) |
serial port | 7 serial ports, 4 of which can be set to rs232 or ttl, and one of which is debug |
I2C | 1 way I2C |
CAN | 3-way can bus |
RS485 | 1 channel rs485 |
GPIO | 8 available gpio |
hdmi output | 1 hdmi output, supports up to 4k (multiplexed with edp) |
AHD input | support 4-way 720p ahd input |
mipi dsi display | support 2-way mipi dsi display |
edp display | 2-channel edp display interface (multiplexed with hdmi) |
lvds display | support single-channel dual-channel lvds output, up to 1920x1080 |
voice output | 1-way headphone left and right channel output, 2-way speaker output 3w/8 ohm |
voice input | 1-way microphone input |
Ethernet | support one gigabit ethernet (pcie) |
WIFI | support wifi 6 (ap6275) |
Bluetooth | 1 channel 5.0g bluetooth+ble(ap6275) |
RTC | external rtc chip (hym8563) power consumption is less than 0.2ua |
4G | built-in 4g module, support quectel and zhanrui |
TF card | support tf card |
rtc real time clock | external button battery supports power-down time saving (independent hym8563) |
system upgrade | support local usb upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 6.5 | 12V | 15 |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
including backplane current test | turn-on current | 165mA | 275mA | 652mA |
desktop quiescent current | 195mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
Product Show Case
