CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

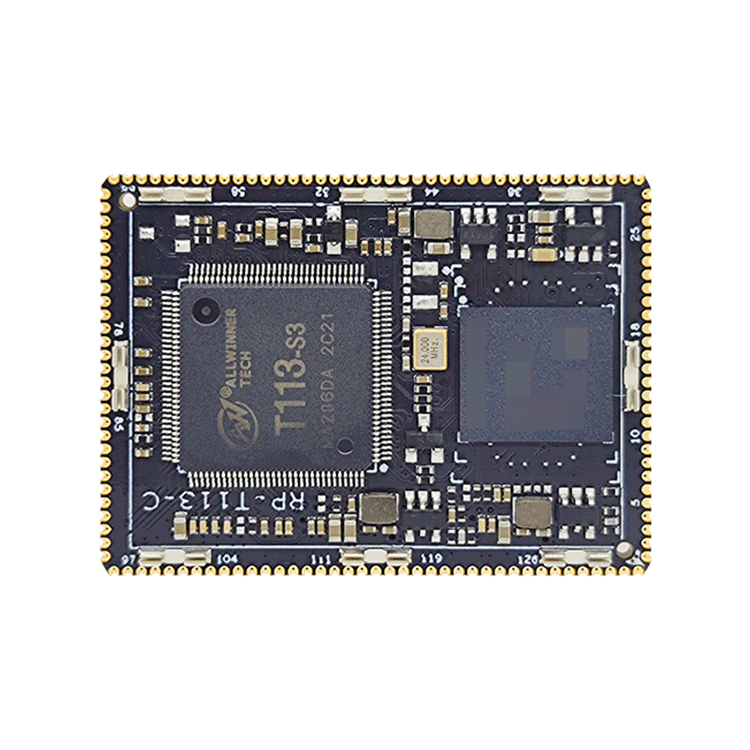

PRODUCT DISPLAY
HARDWARE INDEX
main hardware indicators | |
size | 40mm long*30mm wide*3mm high |
connection method | stamp hole |
CPU | allwinner rpt113 dual core arm cortextm-a7 cpu |
Memory | built-in 128mb ddr3 |
memory | emmc 5.1 standard 4gb optional 8g/16g/32g |
power management | discrete design |
operating voltage | 3.4-5.5V |
support system | linux5.4 qt5.12.5 |
operating temperature | -25 to +85 degrees |
life | continuous operating life is more than 5 years |
COMMONINTERFACE
common interface of core board | |
RGB | rgb666 output up to 720p |
LVDS | supports single 6/8 lvds output up to 1280x800 |
Ethernet | support ethernet fast rmii interface |
cvbs input | support two-way cvbs analog camera input |
cvbs output | support one cvbs output |
I2S | two i2s channels, one channel 8 channels/one channel 2 channels |
voice | support 1 channel left and right channel output |
SDIO | support one sdio 3.0 interface |
USB 2.0 | 1 independent usb 2.0 |
UART | 5 serial ports |
SPI | 1 way SPI |
I2C | 4-way I2C |
PWM | 8-way PWM |
ADC | 1 channel analog adc input interface |
GPIO | multiplexable gpio up to 62 |
upgrade | support usb/tf card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 3.4V | 5V | 5.5V |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
including backplane current test | turn-on current | 14mA | 55mA | 76mA |
desktop quiescent current | 38mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -40℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
HARDWARE INDEX
main hardware indicators | |
size | 40mm long*30mm wide*3mm high |
connection method | stamp hole |
CPU | allwinner rpt113 dual core arm cortextm-a7 cpu |
Memory | built-in 128mb ddr3 |
memory | emmc 5.1 standard 4gb optional 8g/16g/32g |
power management | discrete design |
operating voltage | 3.4-5.5V |
support system | linux5.4 qt5.12.5 |
operating temperature | -25 to +85 degrees |
life | continuous operating life is more than 5 years |
COMMONINTERFACE
common interface of core board | |
RGB | rgb666 output up to 720p |
LVDS | supports single 6/8 lvds output up to 1280x800 |
Ethernet | support ethernet fast rmii interface |
cvbs input | support two-way cvbs analog camera input |
cvbs output | support one cvbs output |
I2S | two i2s channels, one channel 8 channels/one channel 2 channels |
voice | support 1 channel left and right channel output |
SDIO | support one sdio 3.0 interface |
USB 2.0 | 1 independent usb 2.0 |
UART | 5 serial ports |
SPI | 1 way SPI |
I2C | 4-way I2C |
PWM | 8-way PWM |
ADC | 1 channel analog adc input interface |
GPIO | multiplexable gpio up to 62 |
upgrade | support usb/tf card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 3.4V | 5V | 5.5V |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
including backplane current test | turn-on current | 14mA | 55mA | 76mA |
desktop quiescent current | 38mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -40℃ | -0℃ | 100℃ | |
