| size | 69.6mm long*53mm wide*3mm high |
| Connection method | DDR4 Gold Finger |
| CPU | ROCKCHIP RK3568J Quad-core A55 |
| GPU | Mali G52 |
| Memory | LPDDR4 Standard 2GB Optional 4G/8GB |
| memory | EMMC 5.1 Standard 8GB Optional 16GB/32G/64G/128G |
| power management | RK809-5 |
| Operating Voltage | 3.3V 3A and above |
| support system | Andriod11/ubuntu/Linux4.19+QT5.12/Ubuntu18.04 |
| operating temperature | -40 to +85 degrees |
| life | Continuous operating life is more than 5 years |
| HDMI | HDMI high-definition output supports 1080P display |
| EDP | Support 4Lane eDP up to 1080P |
| LVDS | Support single-channel LVDS display output up to 1280x800 |
| MIPI DS | Support 4Lane up to 1080P |
| RGB | Support RGB888 24-bit interface |
| DVP camera | Support 16 bit DVP interface camera input |
| MIPI CSI | Two-way CSI supports up to 800W |
| I2S | Two I2S channels, one channel 8 channels/one channel 2 channels |
| PCIE | 1 PCIE 3.0 x2, another 1 PCIE2.0 x1 |
| SATA | 1 way SATA3.0, another way SATA2.0 |
| USB2.0 | Four independent USB2.0 channels, one of which is OTG |
| USB3.0 | Two-way USB 3.0 interface |
| Ethernet | 2-way RGMII Ethernet interface |
| UART | 10 serial ports |
| SPI | 3-way SPI |
| I2C | 4-way I2C |
| PWM | 15 PWM |
| SDIO | 3-way SDIO interface, one is TF card, the other is WIFI |
| ADC | 4-channel analog ADC input interface |
| GPIO | Multiplexable GPIO up to 130 |
| Voice input | Two-way analog voice input |
| voice output | voice output |
| upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typica | maximum | |
| Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
| ripple | -- | 50mV | ||
| RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
| Core board input 3.39V Current test | Turn-on current | 273mA | 345mA | 465mA |
| Desktop Quiescent Current | 325mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
| Operating temperature | -40℃ | -- | 85℃ | |
| storage temperature | -50℃ | -0℃ | 100℃ | |
| size | 69.6mm long*53mm wide*3mm high |
| Connection method | DDR4 Gold Finger |
| CPU | ROCKCHIP RK3568J Quad-core A55 |
| GPU | Mali G52 |
| Memory | LPDDR4 Standard 2GB Optional 4G/8GB |
| memory | EMMC 5.1 Standard 8GB Optional 16GB/32G/64G/128G |
| power management | RK809-5 |
| Operating Voltage | 3.3V 3A and above |
| support system | Andriod11/ubuntu/Linux4.19+QT5.12/Ubuntu18.04 |
| operating temperature | -40 to +85 degrees |
| life | Continuous operating life is more than 5 years |
| HDMI | HDMI high-definition output supports 1080P display |
| EDP | Support 4Lane eDP up to 1080P |
| LVDS | Support single-channel LVDS display output up to 1280x800 |
| MIPI DS | Support 4Lane up to 1080P |
| RGB | Support RGB888 24-bit interface |
| DVP camera | Support 16 bit DVP interface camera input |
| MIPI CSI | Two-way CSI supports up to 800W |
| I2S | Two I2S channels, one channel 8 channels/one channel 2 channels |
| PCIE | 1 PCIE 3.0 x2, another 1 PCIE2.0 x1 |
| SATA | 1 way SATA3.0, another way SATA2.0 |
| USB2.0 | Four independent USB2.0 channels, one of which is OTG |
| USB3.0 | Two-way USB 3.0 interface |
| Ethernet | 2-way RGMII Ethernet interface |
| UART | 10 serial ports |
| SPI | 3-way SPI |
| I2C | 4-way I2C |
| PWM | 15 PWM |
| SDIO | 3-way SDIO interface, one is TF card, the other is WIFI |
| ADC | 4-channel analog ADC input interface |
| GPIO | Multiplexable GPIO up to 130 |
| Voice input | Two-way analog voice input |
| voice output | voice output |
| upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typica | maximum | |
| Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
| ripple | -- | 50mV | ||
| RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
| Core board input 3.39V Current test | Turn-on current | 273mA | 345mA | 465mA |
| Desktop Quiescent Current | 325mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
| Operating temperature | -40℃ | -- | 85℃ | |
| storage temperature | -50℃ | -0℃ | 100℃ | |

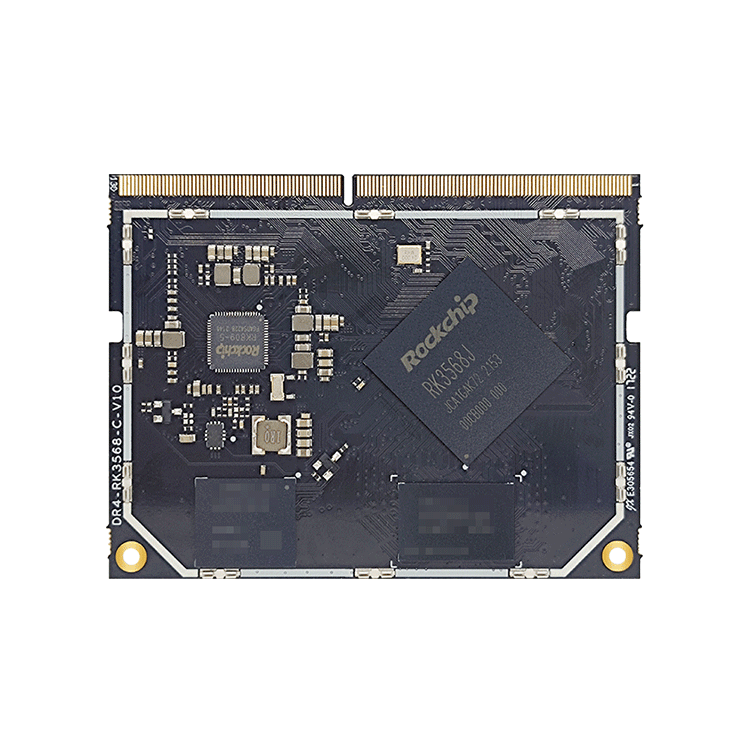

Product Show Case
