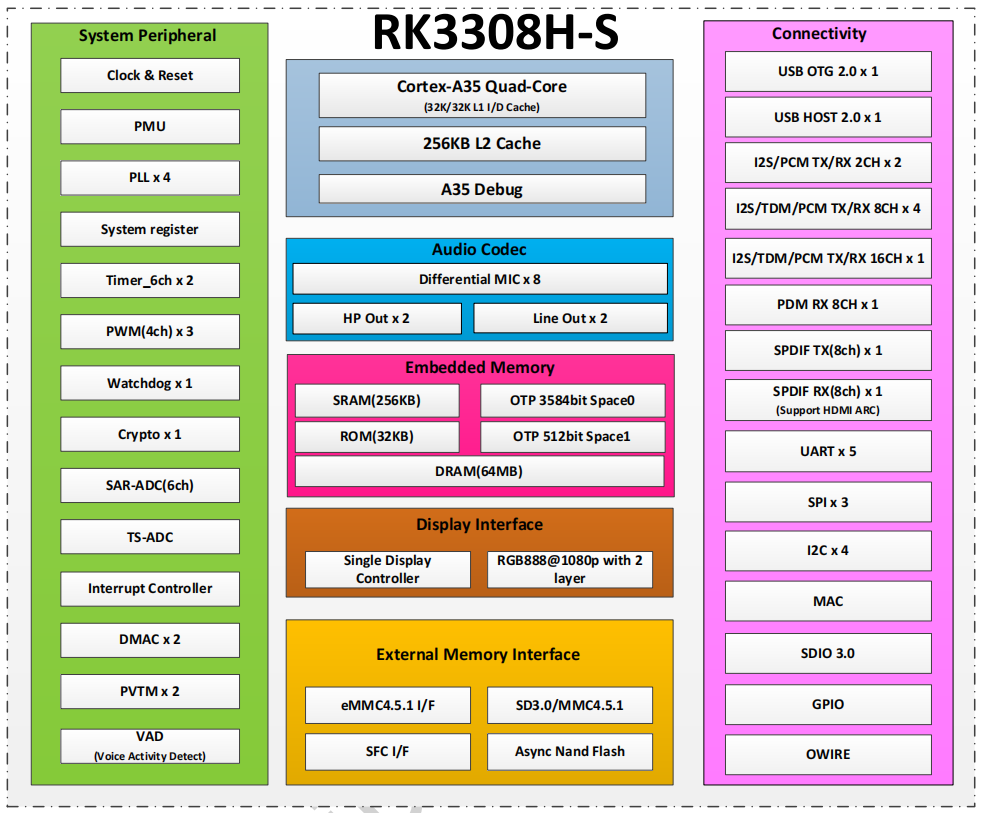

CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
HARDWARE INDEX
common interface of motherboard | |
USB | 2 usb ports, one otg 2.0, the other host 2.0 |
voice output | 1 channel headphone left and right channel output, 1 channel lane out output |
analog voice input | 8-way microphone input |
data voice input | 8ch array input |
WIFI | support wifi (ap6212) |
Bluetooth | 1 channel 4.0g bluetooth+ble(ap6212) |
Ethernet | support one 100m ethernet (rmii rtl8201f) |
display | rgb666 supports up to 720p |
touch screen | support i2c touch screen |
CAN | 1 channel spi to can mcp2515 |
RS485 | 1 channel rs485 |
RTC | hym8563 rtc clock chip, power consumption is less than 1ua |
UART | 4 ttl serial ports, uart1, uart2 can be set to rs232 |
ADC | 4-channel adc analog input |
GPIO | 8-way gpio |
I2C | 1 way I2C |
system upgrade | support local usb upgrade |
COMMONINTERFACE
main hardware indicators | |
size | 40mm long*30mm wide*3mm high |
connection method | stamp hole |
CPU | rockchip rk3308h quad-core a35 |
Memory | built-in 64mb ddr2 |
memory | emmc 5.1 standard 4gb optional 8g/16g/32g |
power management | discrete design |
operating voltage | 3.4-5.5v max within 500ma |
support system | linux4.4.143 |
operating temperature | -10 to +75 degrees |
life | continuous operating life is more than 5 years |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
power parameters | Voltage | 3.4 | 5V | 5.5V |
ripple | -- | 50mV | ||
rtc (hym8563) | 0.3uA | 0.9uA | 1.2uA | |
including backplane current test | turn-on current | 15mA | 65mA | 125mA |
desktop quiescent current | 55mA | |||
surroundings | relative humidity | -- | 65% | 75% |
operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
