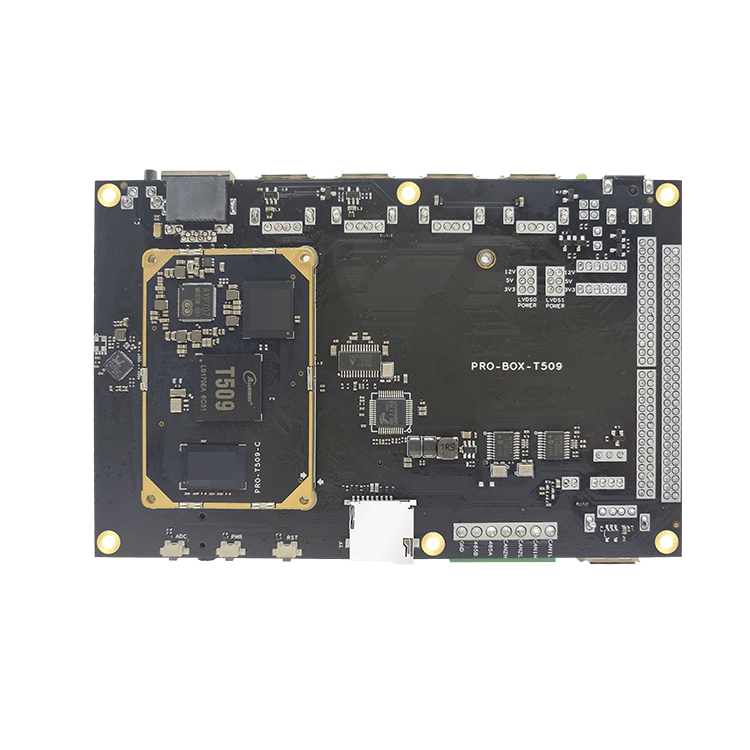

size | 140mm length*90mm width*14mm height |
CPU | Allwinner T509 quad core A53 |
GPU | GE8300 |
RAM | LPDDR4 standard 1GB, optional 2GB/4GB |
Memory | EMMC 5.1 standard 8GB optional 32GB/64GB |
Power management | AXP707 |
Operating Voltage | 12V 2A or more |
support system | Andriod 10 |
Operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
USB HOST | 7 USB ports (5 external, 2 internal plug-in) Another OTG2.0 |
Serial port | 6 TTL 3.3V levels (one of which is debug, can be changed to ordinary serial port) |
SPI interface | 1 SPI0 |
Other expansion interfaces | 10 IO |
MIPI display | MIPI display output up to 1920x1080 |
LVDS display | Dual 8 LVDS output up to 1920x1080 |
MIPI CSI input | 2-way camera MIPI RAW/YUV data input |
Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
Voice output | 1 channel speaker output 5W/8 ohm |
RS485 | 1 way RS485 interface |
CAN bus | 2 CAN outputs |
WIFI | WIFI 2.4G (AP6212) |
Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
ADC interface | 2-way ADC interface |
3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
TF card | Support TF card |
RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
System Upgrade | Support local USB upgrade |
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
Power supply current (Other peripherals not connected) | Turn-on current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 115mA | 319mA | |
Power supply current (Connect to display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
| environment | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |

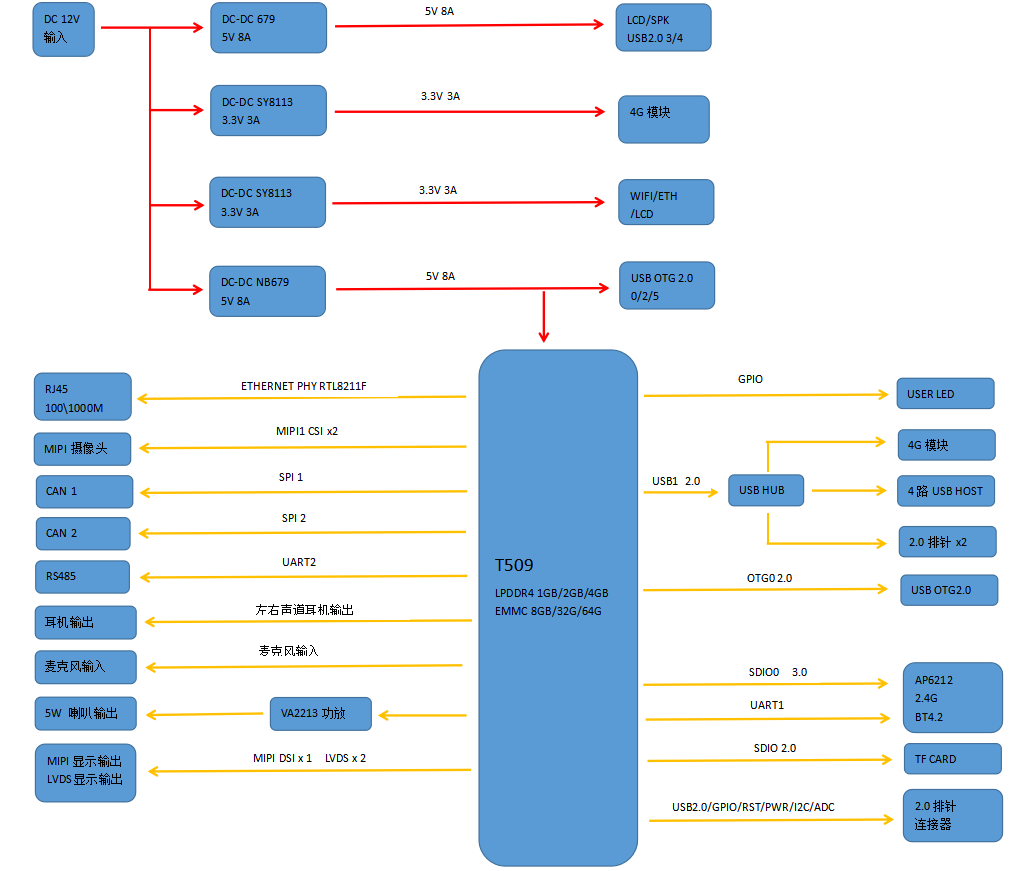

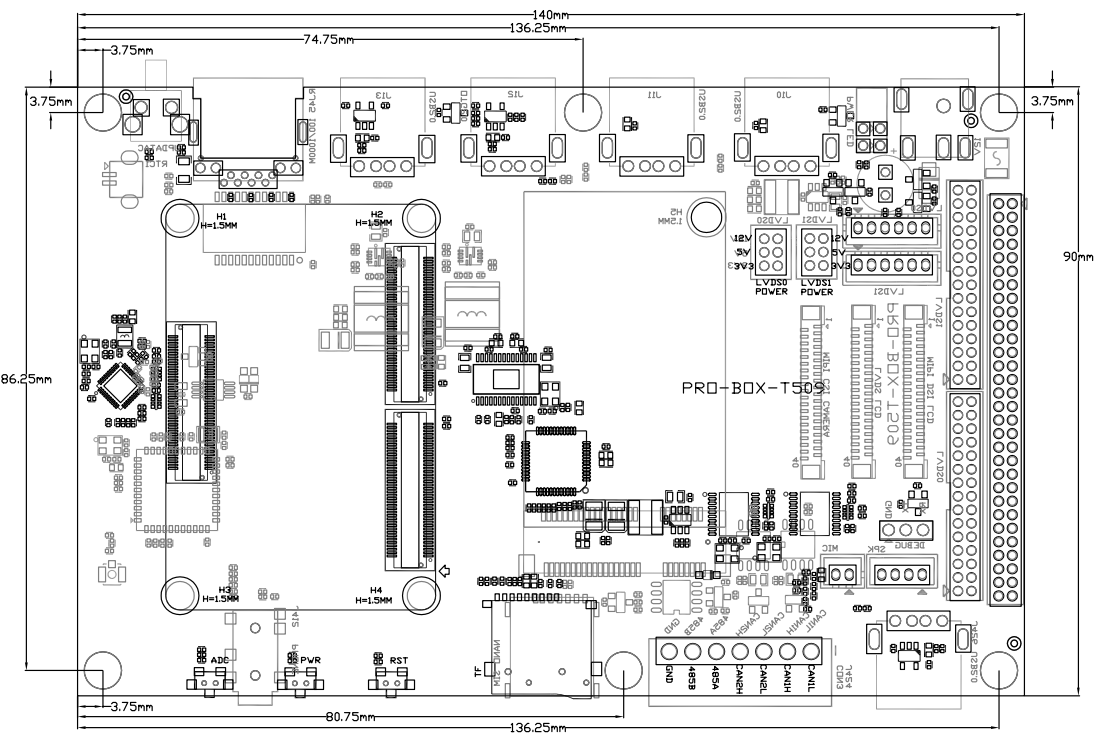

size | 140mm length*90mm width*14mm height |
CPU | Allwinner T509 quad core A53 |
GPU | GE8300 |
RAM | LPDDR4 standard 1GB, optional 2GB/4GB |
Memory | EMMC 5.1 standard 8GB optional 32GB/64GB |
Power management | AXP707 |
Operating Voltage | 12V 2A or more |
support system | Andriod 10 |
Operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
USB HOST | 7 USB ports (5 external, 2 internal plug-in) Another OTG2.0 |
Serial port | 6 TTL 3.3V levels (one of which is debug, can be changed to ordinary serial port) |
SPI interface | 1 SPI0 |
Other expansion interfaces | 10 IO |
MIPI display | MIPI display output up to 1920x1080 |
LVDS display | Dual 8 LVDS output up to 1920x1080 |
MIPI CSI input | 2-way camera MIPI RAW/YUV data input |
Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
Voice output | 1 channel speaker output 5W/8 ohm |
RS485 | 1 way RS485 interface |
CAN bus | 2 CAN outputs |
WIFI | WIFI 2.4G (AP6212) |
Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
ADC interface | 2-way ADC interface |
3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
TF card | Support TF card |
RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
System Upgrade | Support local USB upgrade |
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
Power supply current (Other peripherals not connected) | Turn-on current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 115mA | 319mA | |
Power supply current (Connect to display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
| environment | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
