| size | 140mm length*90mm width*14mm height |

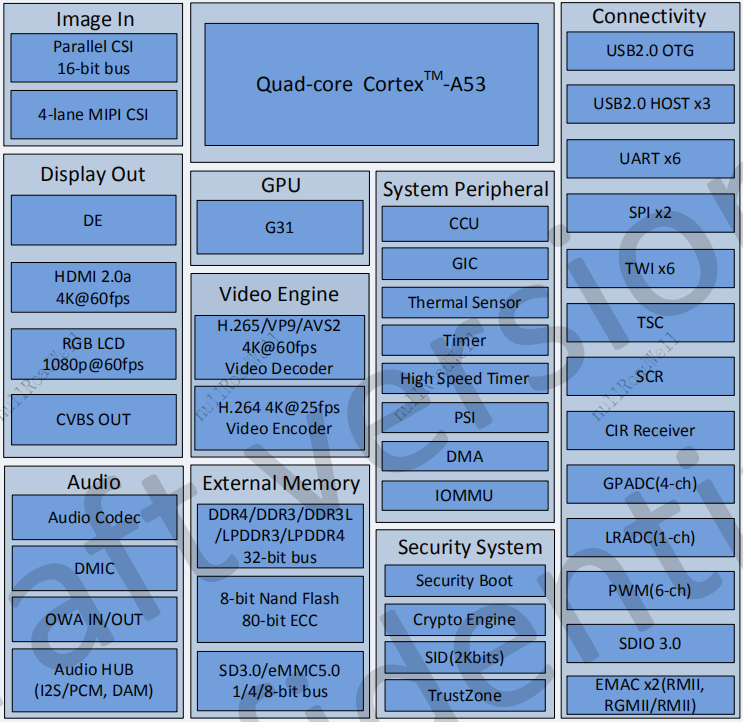

| CPU | Allwinner T507 Quad Core A53 |
| GPU | Mali G31 |
| RAM | LPDDR4 standard 1GB, optional 2GB/4GB |
| Memory | EMMC 5.1 standard 8GB optional 32GB/64GB |
| Power management | AXP853T |
| Operating Voltage | 12V 2A以上 |
| support system | Andriod 10/ Ubuntu20.04 Linux+QT5.12.5 |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
| USB interface | HOST 5 USB ports (3 external, 3 internal plug-in) and another OTG2.0 |
| Serial port | 3 TTL 3.3V levels (one of which is debug, can be changed to ordinary serial port) |
| Other expansion interfaces | 5-way IO |
| HDMI output | HDMI 2.0 supports 1080 output (can be displayed differently with LVDS) |
| LVDS display | Dual 8 LVDS output up to 1920x1080 |
| MIPI CSI input | 1 camera MIPI YUV data input |
| DVP input | 1 channel 16-bit DVP camera input, default to AHD input |
| LVDS display | 1 channel LVDS maximum support 1920x1080 1080P 60fps |
| Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
| Ethernet 2 | 1 channel 10M/100M IP101GR |
| Voice output | 1 channel speaker output 5W/8 ohm |
| WIFI | WIFI 2.4G (AP6212) |
| Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
| CAN bus | 1 SPI to CAN output |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
| System Upgrade | Support local USB upgrade |
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
power supply current (other peripherals not connected) | Turn-on current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 115mA | 319mA | |
power supply current (connect to display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
| environment | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
| size | 140mm length*90mm width*14mm height |
| CPU | Allwinner T507 Quad Core A53 |
| GPU | Mali G31 |
| RAM | LPDDR4 standard 1GB, optional 2GB/4GB |
| Memory | EMMC 5.1 standard 8GB optional 32GB/64GB |
| Power management | AXP853T |
| Operating Voltage | 12V 2A以上 |
| support system | Andriod 10/ Ubuntu20.04 Linux+QT5.12.5 |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
| USB interface | HOST 5 USB ports (3 external, 3 internal plug-in) and another OTG2.0 |
| Serial port | 3 TTL 3.3V levels (one of which is debug, can be changed to ordinary serial port) |
| Other expansion interfaces | 5-way IO |
| HDMI output | HDMI 2.0 supports 1080 output (can be displayed differently with LVDS) |
| LVDS display | Dual 8 LVDS output up to 1920x1080 |
| MIPI CSI input | 1 camera MIPI YUV data input |
| DVP input | 1 channel 16-bit DVP camera input, default to AHD input |
| LVDS display | 1 channel LVDS maximum support 1920x1080 1080P 60fps |
| Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
| Ethernet 2 | 1 channel 10M/100M IP101GR |
| Voice output | 1 channel speaker output 5W/8 ohm |
| WIFI | WIFI 2.4G (AP6212) |
| Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
| CAN bus | 1 SPI to CAN output |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
| System Upgrade | Support local USB upgrade |
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
power supply current (other peripherals not connected) | Turn-on current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 115mA | 319mA | |
power supply current (connect to display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
| environment | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |

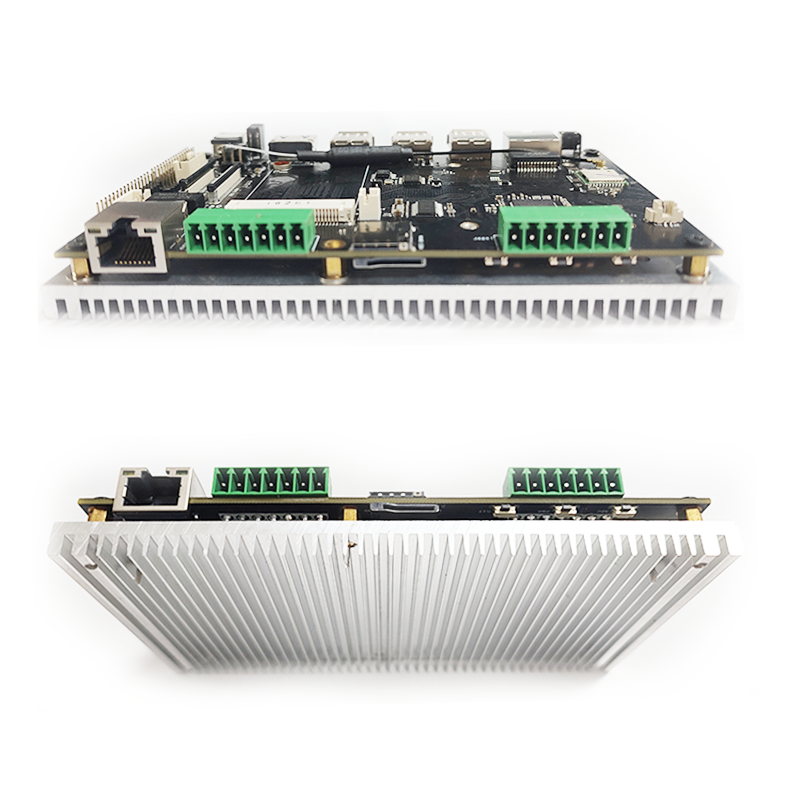

Product Show Case
