CPU BLOCK DIAGRAM

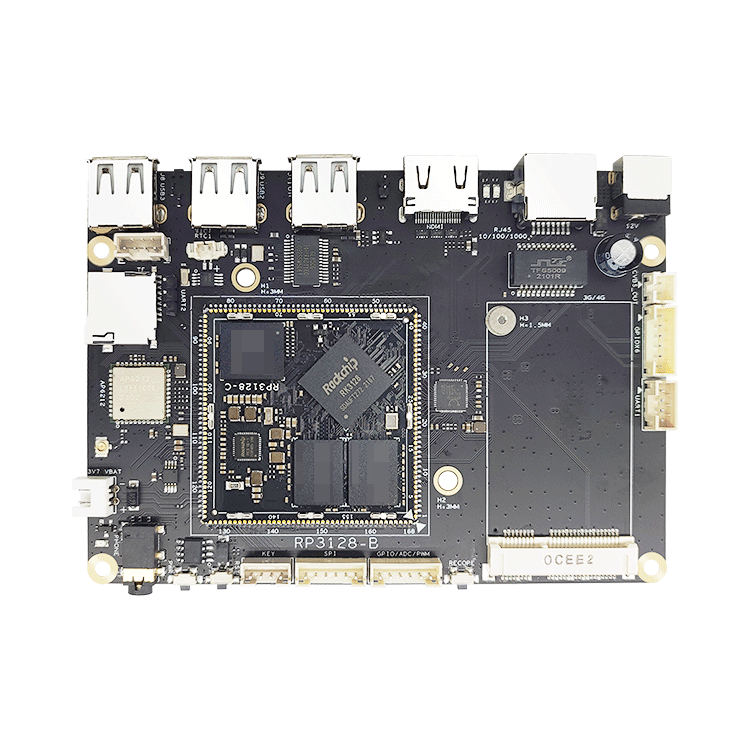

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Size | Length 120mm x Width 85mm x Height 14mm |
| CPU | ROCKCHIP RK3128 A7 quad core |
| GPU | Mali-400 MP2 |
| RAM | DDR3 standard 1G (2G batch optional) |
| Memory | eMMC standard 8G (16G/32G/64G batch optional) |
| Power management | RK816-1 with charging management/path management/power display |
| Operating Voltage | Input voltage 12V, maximum power is less than 4W (no peripherals connected) |
| support system | Andriod 7.1/ Ubuntu / Linux4.4+QT5.12 |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 4 external standard USB ports, one of which is OTG |
| Serial port | 2 external serial ports, one of which is debug |
| LVDS display | Support single LVDS display output up to 1280x800 |
| MIPI DSI display | Maximum display output up to 1920x1080 |
| CAMERA input | One 8-bit parallel DVP input |
| HDMI display output | Support HDMI display output 1080P |
| CVBS input | One CVBS input up to 720x576 |
| Ethernet | 1 channel 10M/100M/1000M (RTL8211E) |
| Voice output | 1 headphone left and right channel output, one speaker output 1.5W/8 ohm |
| Voice input | 1 microphone input |
| WIFI | 1 way 2.4G WIFI AP6212 |
| Bluetooth | 1 channel 2.4G Bluetooth AP6212 |
| GPIO | 9 controllable GPIO |
| SPI | 1 way SPI |
| ADC input | 3 analog ADC inputs |
| 3.7V lithium battery | Support 3.7V lithium battery/charge and discharge management/power display |
| 3G/4G | 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery supports power-down time saving (HYM8563) |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Item | The smallest | Typical | maximum | |
| Power parameters | Voltage | 4.5V | 5V | 5.5V |
| Ripple | -- | -- | 50mV | |
| (Other peripherals are not connected) | Start-up current | 220mA | 375mA | 657mA |
| Desktop quiescent current | 275mA | |||
| Standby current | 25mA | |||
| RTC power consumption | 0.3uA | 0.9uA | 1.2uA | |
connect 10.1 mipi 800x1280 displa | Start-up current | 475mA | 635mA | 1125mA |
| Desktop quiescent current | 515mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 90℃ | |
