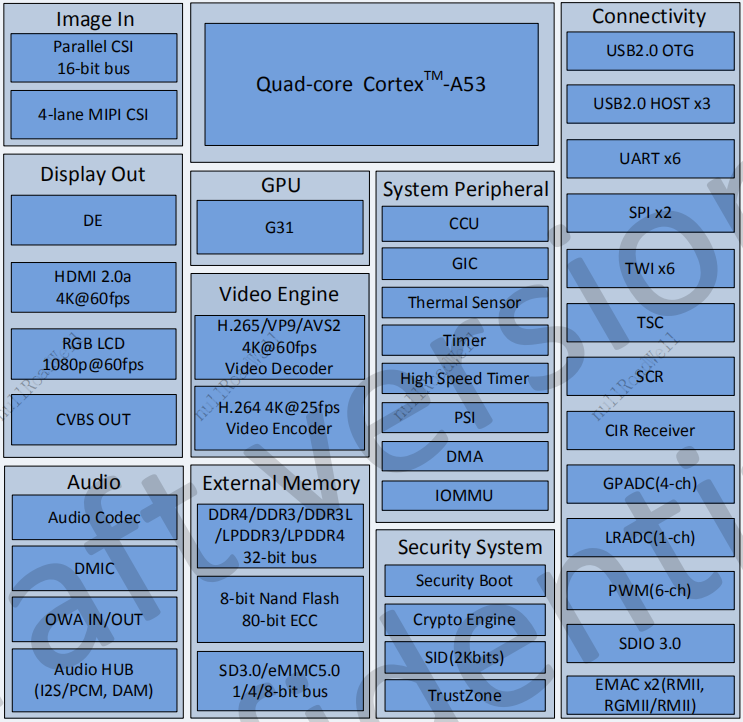

CPU BLOCK DIAGRAM

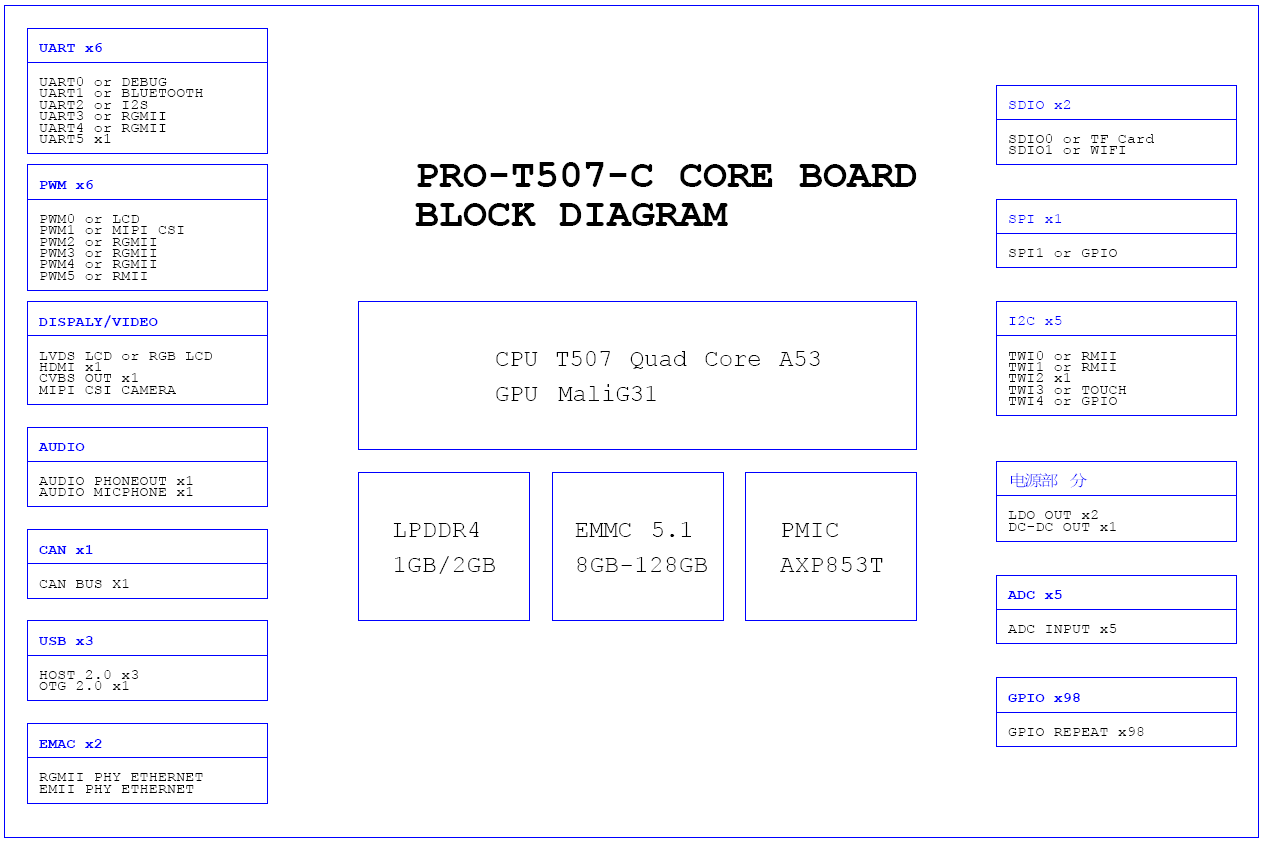

CORE BOARD BLOCK DIAGRAM

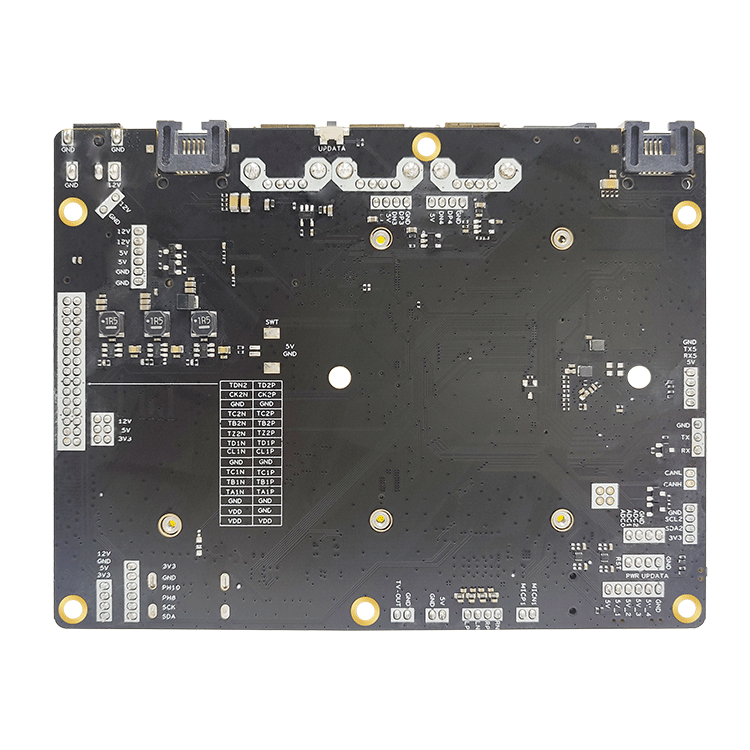

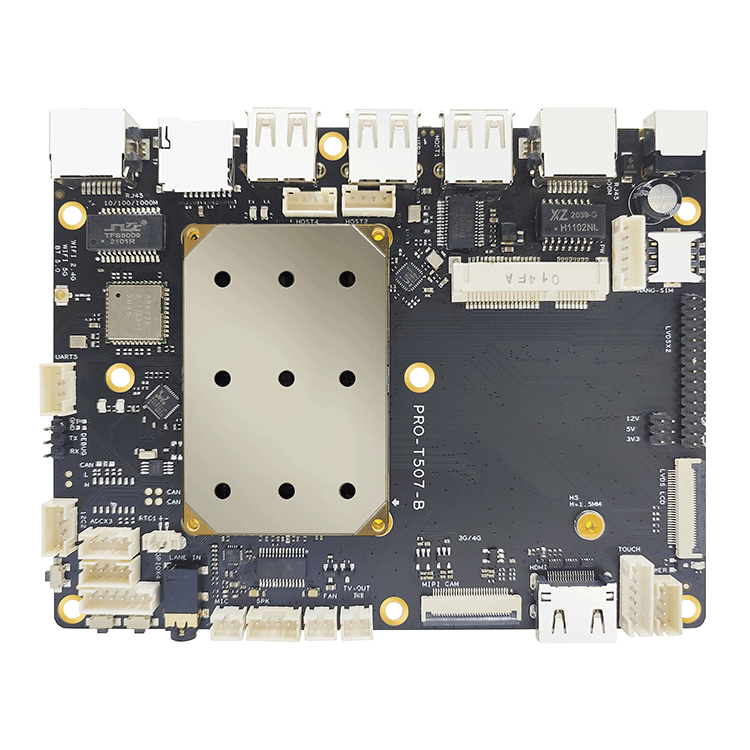

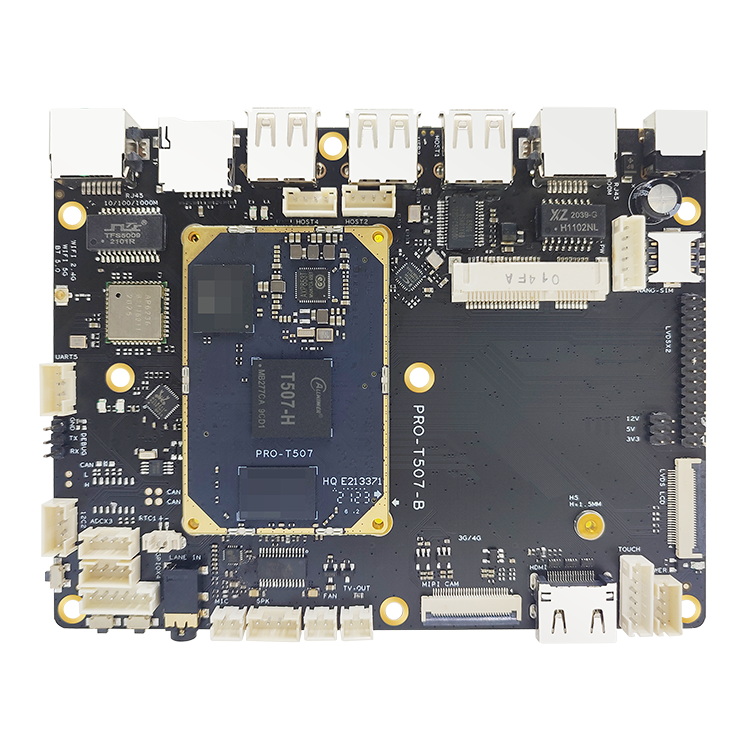

PRODUCT DISPLAY

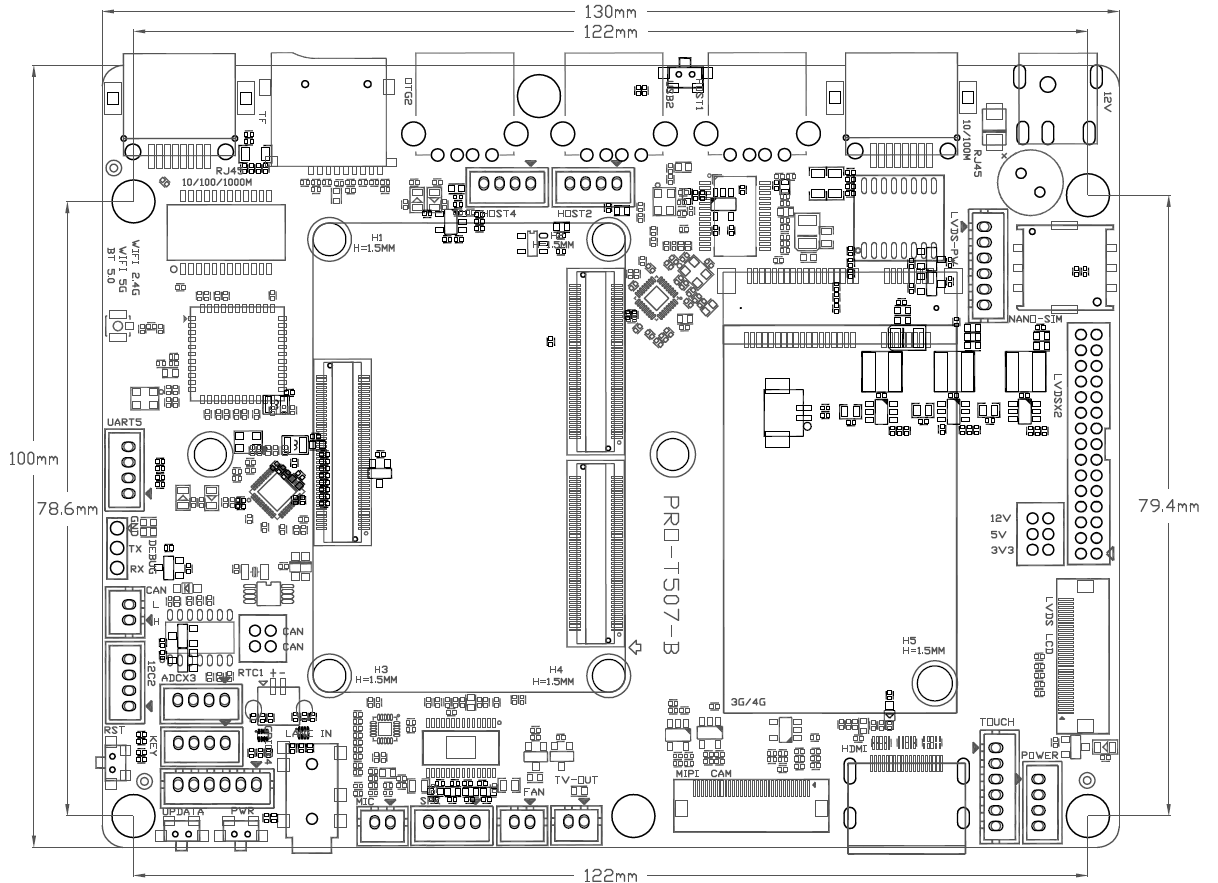

PCB SIZE DRAWING
HARDWARE INDEX
| Main hardware indicators | |
| Size | 130mm long x 100mm wide x 14mm high |
| CPU | Allwinner T507 quad-core A53 frequency 1.5GHz |
| NPU | Mali-400 G31 GPU |
| RAM | LDDR4 standard 2G (1G/2GB batch optional) |
| Memory | eMMC standard 8G (16G/32G/64G batch optional) |
| Power management | AXP853T supports standby, key switch |
| Operating Voltage | Input voltage 12V, maximum power is less than 3W (no peripherals connected) |
| support system | Andriod/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB interface | 5 USB, three external plugs, one of which is OTG, two internal plugs |
| UART serial port | TTL 3.3V level, one of which is Debug |
| SDIO interface | 2 SDIO interfaces, one TF card, the other connects to WIFI |
| ADC interface | 2-way ADC interface |
| I2C interface | 2-way I2C interface |
| GPIO interface | 4 channels available GPIO, can be connected with 5V or relay device |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| LVDS display | 1 channel LVDS maximum support 1920x1080 1080P 60fps |
| RGB display | 1 channel RGB 888 output, maximum support 1920x1080 1080P 60fps |
| HDMI display | 1 HDMI output Maximum support 4K 60FPS |
| CVBS output | 1 CVBS output |
| MIPI CSI input | Support 4lane MIPI CSI input |
| Voice output | 1 channel left and right channel output, 5W power amplifier connected to the bottom board |
| Voice input | 1 microphone input, one lane in input (AC107 on the bottom board) |
| Fast Ethernet | 100M RMII Ethernet |
| Gigabit Ethernet | 100M/1000M RGMII Ethernet |
| Output power | Multi-channel power output 3.3V 5V 12V |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Item | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
(Other peripherals not connected) Power-on current | Power supply current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 192mA | 319mA | |
| Power supply current | LVDS 1024x600 | 325mA | 362mA | 475mA |
| surroundings | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Main hardware indicators | |
| Size | 130mm long x 100mm wide x 14mm high |
| CPU | Allwinner T507 quad-core A53 frequency 1.5GHz |
| NPU | Mali-400 G31 GPU |
| RAM | LDDR4 standard 2G (1G/2GB batch optional) |
| Memory | eMMC standard 8G (16G/32G/64G batch optional) |
| Power management | AXP853T supports standby, key switch |
| Operating Voltage | Input voltage 12V, maximum power is less than 3W (no peripherals connected) |
| support system | Andriod/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB interface | 5 USB, three external plugs, one of which is OTG, two internal plugs |
| UART serial port | TTL 3.3V level, one of which is Debug |
| SDIO interface | 2 SDIO interfaces, one TF card, the other connects to WIFI |
| ADC interface | 2-way ADC interface |
| I2C interface | 2-way I2C interface |
| GPIO interface | 4 channels available GPIO, can be connected with 5V or relay device |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| LVDS display | 1 channel LVDS maximum support 1920x1080 1080P 60fps |
| RGB display | 1 channel RGB 888 output, maximum support 1920x1080 1080P 60fps |
| HDMI display | 1 HDMI output Maximum support 4K 60FPS |
| CVBS output | 1 CVBS output |
| MIPI CSI input | Support 4lane MIPI CSI input |
| Voice output | 1 channel left and right channel output, 5W power amplifier connected to the bottom board |
| Voice input | 1 microphone input, one lane in input (AC107 on the bottom board) |
| Fast Ethernet | 100M RMII Ethernet |
| Gigabit Ethernet | 100M/1000M RGMII Ethernet |
| Output power | Multi-channel power output 3.3V 5V 12V |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Item | The smallest | Typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Current | 162mA | -- | -- | |
(Other peripherals not connected) Power-on current | Power supply current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 192mA | 319mA | |
| Power supply current | LVDS 1024x600 | 325mA | 362mA | 475mA |
| surroundings | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
