EESAY PRO-SV810 expansion board

深圳市荣品电子科技有限公司

联系方式: 0755-235747363

地址: 广东省深圳市宝安区西乡街道华丰国际机器人产业园二期A座三楼(固戍地铁C出口)

Product description

CPU BLOCK DIAGRAM

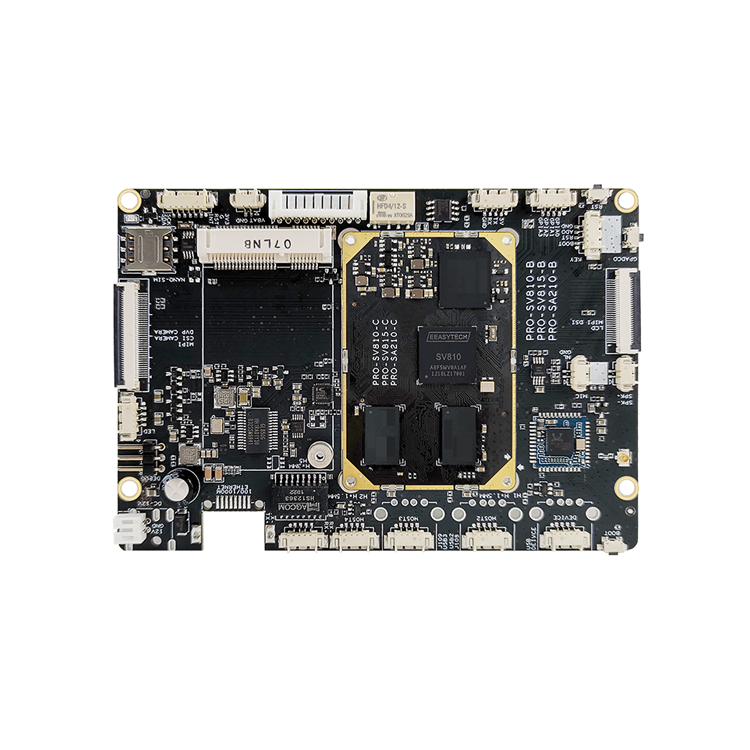

PRODUCT DISPLAY

PCB SIZE DRAWING

HARDWARE INDEX

Main hardware indicators of the development board
Size	120mm long x 85mm wide x 14mm high
CPU	Yizhi dual-core A7
NPU	1.2 TOPS NPU
RAM	DDR3 standard 1G (512M/2G batch optional)
Memory	eMMC standard 8G (16G/32G/64G batch optional)
Power management	Discrete power supply design, support dynamic power management
Operating Voltage	Input voltage 12V, maximum power is less than 3W (no peripherals connected)
support system	Linux3.10+QT4.8
Operating temperature	-10 to +75 degrees
Life span	Continuous operating life is more than 5 years

COMMONINTERFACE

Commonly used interfaces
USB interface	4 USB interfaces, one of which is OTG interface, and 3 is HOST
UART serial port	4 TTL 3.3V levels, one of which is Debug
SDIO interface	2 SDIO interfaces, one TF card, and the other to WIFI
GPIO interface	1 way controllable relay 220V/2A
Relay	1 way controllable relay 220V/2A
ADC interface	5-channel ADC interface (for access control)
RS485	1 RS485 interface (for access control)
Wigan	2 Wiegand output
Alert	1 alarm output
I2C interface	1 channel I2C interface
MIPI DSI display	1 channel maximum 1920x1080 60fps
Camera interface	2-way camera input mipi csi +DVP parallel port
Fill light	2 controllable fill lights, 1 channel is infrared light, 1 channel is white light
Voice input	1 microphone input
Voice output	1 channel left and right channel output, 1.5W power amplifier connected to the bottom board
WIFI	Support dual frequency 2.4G BL8723DS SDIO WIFI
Bluetooth	Support Bluetooth 4.0
Ethernet	The default connection to EMII 10/100M PHY IP101GR chip
4G	Support 4G full Netcom module pcie interface
Output power	Multiple power output 3.3V 5V 12V
System Upgrade	Support local USB upgrade
RTC	Button battery interface

FUNCTION AND DRIVER SUPPORT LIST

SV810 function and driver support list function list
function list	Linux kernel 3.10 qt4.8,qt5.9
Hardware function
RTC time saving HYM8563	√
Power on button, power off button	√
Reset button	√
Programming chain	√
Function key ADC0	√
USB OTG device mode ADB	√
USB OTG HOST mode	√
USB HOST interface	√
Debug serial port 0	√
1 way ttl to rs485 serial port	√
1 way ttl serial port	√
5 controllable GPIO	√
1 ADC interface	√
MIPI camera interface IMX307	√
MIPI camera interface GC2053 + DVP camera GC2145	√
MIPI camera interface AR0230 + DVP camera GC2053
USB camera
MIPI display + touch screen up to 1920x1080	√
Speaker output	√
Mike	√
Relay	√
Door sensor (ALARM)	√
SDIO wifi rtl8723ds 2.4G dual frequency	√
BT Bluetooth 5.0+BLE	√
Gigabit Ethernet IP101GR self-adaption 100/1000M	√
4G communication EC20	√
Restore factory settings	√
WIFI hotspot
Wake up
USB to serial port	√
Watchdog API call	√
Driver list
Ethernet IP101GR driver	√
SDIO WIFI+BT rtl8723ds driver	√
UART serial port driver	√
MIPI display driver	√
I2C touch screen driver	√
RTC time saving drive	√
EC20 drive	√
SPI driver	√
ADC drive	√
I2C drive	√
PWM drive	√
SDIO driver	√
GPIO drive	√
USB drive	√
Wiegand drive	√

CORRENT PARAMETER TABLE

Item		The smallest	Typical	maximum
Power parameters	Voltage	6.5V	12V	15V
	Ripple	--	50mV	900mV
	Current	65mA	--	--
Power supply current	Boot current	65mA	116mA	256mA

	Without display, connect to USB camera	75mA	165mA	345mA


surroundings	Relative humidity	--	65%	75%
	Working temperature	-10℃	--	75℃
	Storage temperature	-30℃	-0℃	100℃
