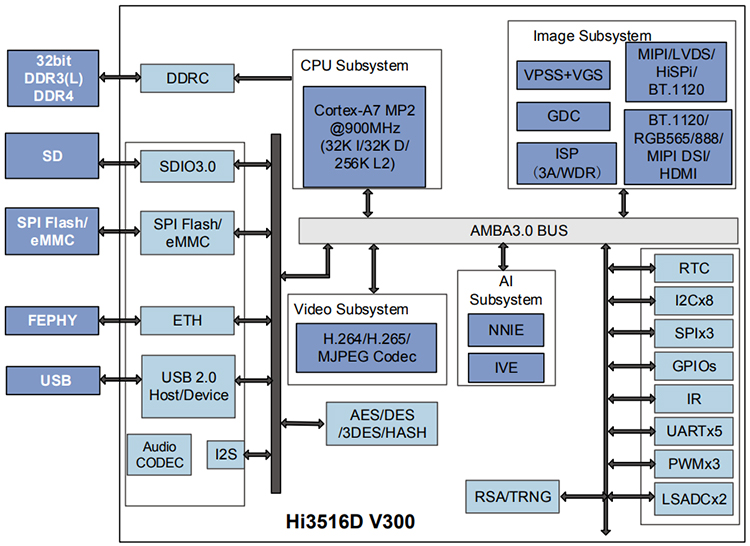

CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

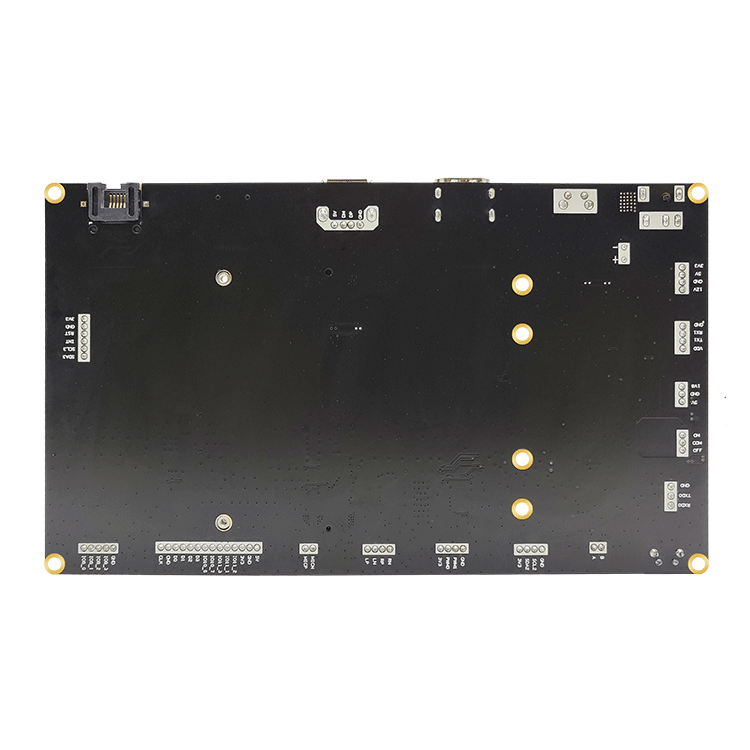

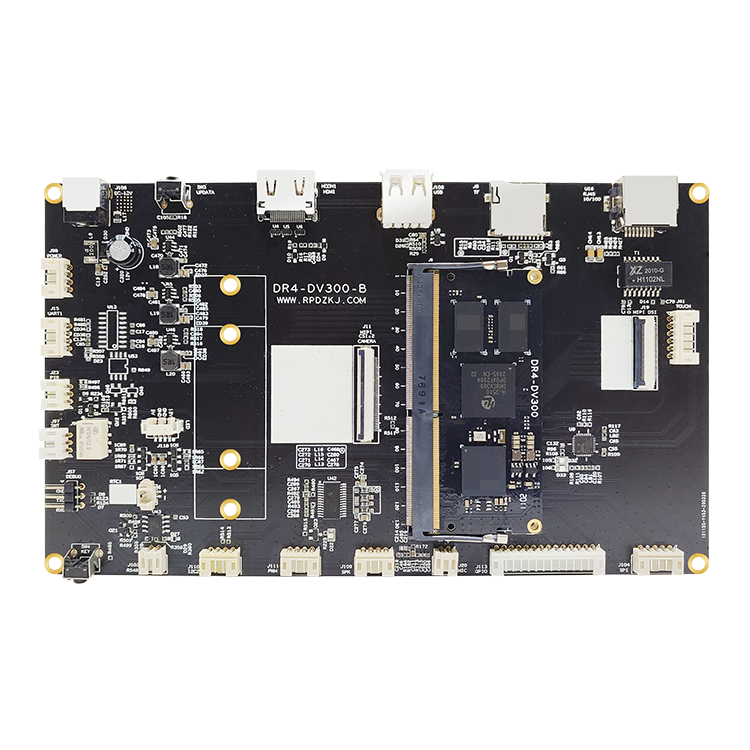

PRODUCT DISPLAY

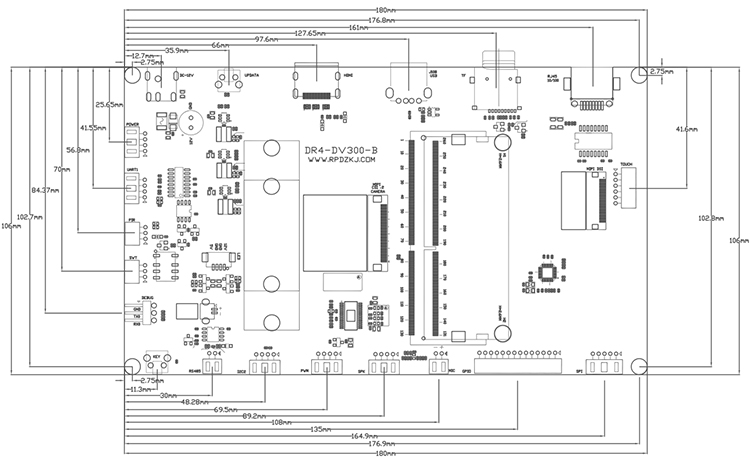

PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 180mm x Wide 106mm x High 14mm |
| CPU | Huawei Hisilicon Hi3516DV300 dual core main frequency 900MHz |
| NPU | 1.0 TOPS NPU |
| RAM | DDR3 standard 1GB(2GB batch optional) |
| Storage | eMMC standard 8GB(16GB/32GB/64GB batch optional) |
| Power management | DC-DC discrete design |
| Working voltage | Input voltage 12V, maximum power less than 1W (without any peripherals) |
| Support system | Linux 4.9.37+Busybox 1.26.2 |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| USB Interface | 1 way OTG |
| UART Serial Port | 2 way TTL 3.3V level,One way is Debug |
| RS485 | 1 way RS485 interface |
| GPIO Interface | 12 way available GPIO |
| PWM Interface | 2 way PWM 3.3V level |
| MIPI DSI Display | 1 way Maximum 1280x800 60fps |
| HDMI Display | 1 way HDMI output 1920x1080 1080P 60fps |
| DVP Camera Interface | 1 way 16 bit parallel DVP camera interface |
| MIPI Camera Interface | 2 way MIPI CSI camera interface |
| Voice Output | 1 way Left and right channel output, 10W power amplifier outside the bottom plate |
| Voice Input | 1 way Microphone input |
| SDIO Interface | 2 way SDIO Interface,1 way TF card,Another way to WIFI |
| IR Infrared Interface | 1 way IR Infrared receiving interface |
| ADC Interface | 2 way ADC Interface |
| I2C Interface | 2 way I2C Interface |
| SPI Interface | 1 way SPI Interface |
| Wigan | 1 way input, 1 way output Wiegand |
| Relay | 1 way normally open, 1 way normally closed relay |
| Ethernet | Connected to 100M PHY RTL8201F chip by default |
| Output power | Multi-channel power output 3.3V 5V 12V |
| System Upgrade | Support local USB upgrade |
| RTC | Button battery interface |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 120mV | |
| Electric current | 40mA | -- | -- | |
Power supply current (Connect binocular camera) | Starting current | 65mA | 223mA | 256mA |
| Connect HDMI boot current | 75mA | 315mA | 345mA | |
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
