Product properties

Allwinnertech MINI-A40i Core board

深圳市荣品电子科技有限公司
联系方式: 0755-235747363
地址: 广东省深圳市宝安区 西乡街道华丰国际机器人产业园二期A座三楼(固戍地铁C出口)
Product description

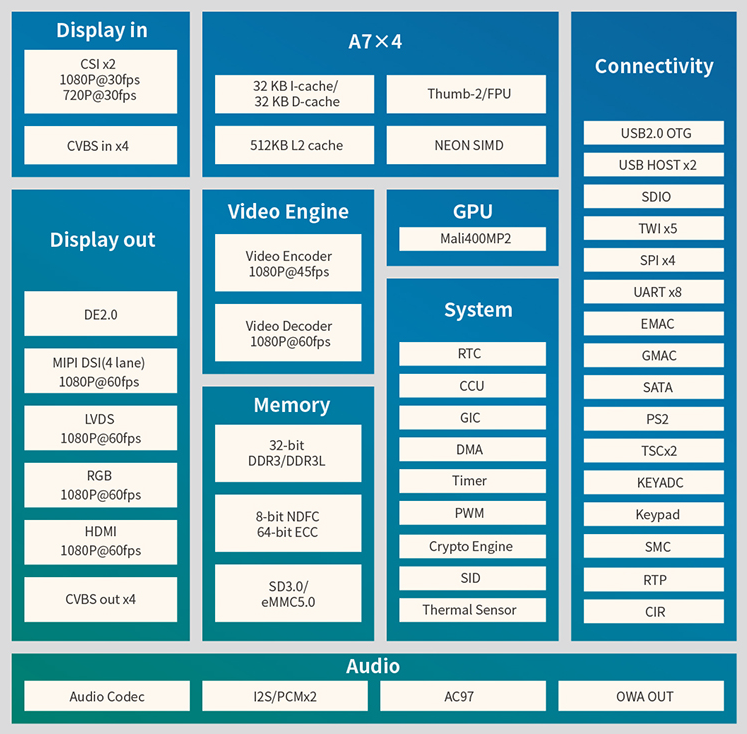

 CPU BLOCK DIAGRAM





CORE BOARD BLOCK DIAGRAM




PRODUCT DISPLAY





HARDWARE INDEX


Main hardware indicators

size

Length 44mm x Width 44mm x Height 3.0mm

CPU

Allwinner A40i-H quad-core clocked at 1.2GHz

GPU

Mali-400 MP2 GPU

Memory

DDR3 comes standard with 1G (2G is optional in batches)

memory

eMMC comes standard with 8G (16G/32G/64G optional in batches)

Power management

AXP221S supports standby and key on/off

Working voltage

Input voltage 5V, maximum power less than 2W (no peripherals connected)

Support system

Android 7.1+Linux3.10 / QT5.4.1+Linux3.10

operating temperature

-10 to +75 degrees

life

Continuous operation life is more than 5 years



COMMONINTERFACE



Common interfaces for core boards

USB interface

3 USB interfaces, two independent USB ports, and one independent OTG

UART serial port

8 channels of TTL 3.3V level, one of which is Debug

GPIO interface

50 channels of GPIO (note: with multiplexing function)

PWM interface

8-way PWM 3.3V level

MIPI DSI display

1 channel maximum 1920x1080 1080P 60fps

LVDS display

1 channel LVDS supports up to 1920x1080 1080P 60fps

RGB display

1 RGB 888 output supports up to 1920x1080 1080P 60fps

HDMI display

1 HDMI output 1920x1080 1080P 60fps

CVBS output

1 CVBS output

CVBS input

1 CVBS input

Voice output

1 channel left and right channel output, 5W power amplifier installed on the bottom panel

Voice input

1 microphone input

CAN bus

1 CAN BUS 2.0 bus

SDIO interface

2 SDIO interfaces, one for TF card and the other for WIFI

IR infrared interface

1 channel IR infrared receiving interface

ADC interface

1 channel ADC interface

I2C interface

3-way I2C interface

SPI interface

3-way SPI interface

Ethernet

One GMAC PHY interface, connected to 100M PHY chip by default

Output power

Multi-channel power output 1.8V 2.8V 3.3V

System upgrade

Support local USB upgrade


CORRENT PARAMETER TABLE


project

smallest

typical

maximum

Power parameters

Voltage

6.5V

12V

15V

ripple

--

50mV

120mV

current

65mA

--

--

Supply current

(No other peripherals connected)

Start-up current

85mA

130mA

315mA

play sound

95mA

139mA

172mA

Connect to HMDI startup current

106mA

185mA

305mA

Supply current

(connected to display screen)

MIPI 1024x600

98mA

232mA

312mA





environment

relative humidity

--

65%

75%

working temperature

-10℃

--

75℃

Storage temperature

-30℃

-0℃

100℃

Note 1: When connecting to an LVDS screen, be sure to select the correct backlight operating voltage of 3.3V, 5V, or 12V. Users are advised not to apply it to peripherals that exceed the corresponding maximum current.

Note 2: When connected to a MIPI screen, the overall operating current and standby current of the board depend on the connected screen and are not listed in the above table.
