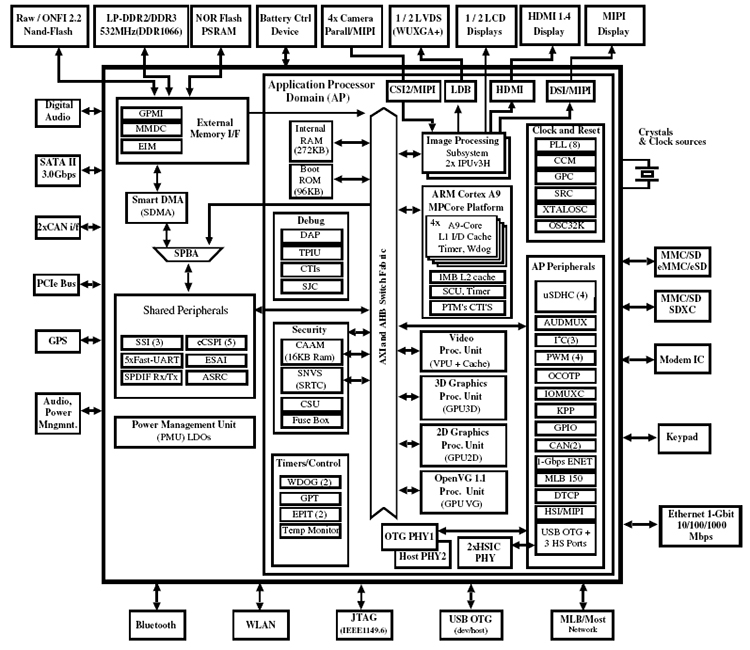

CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

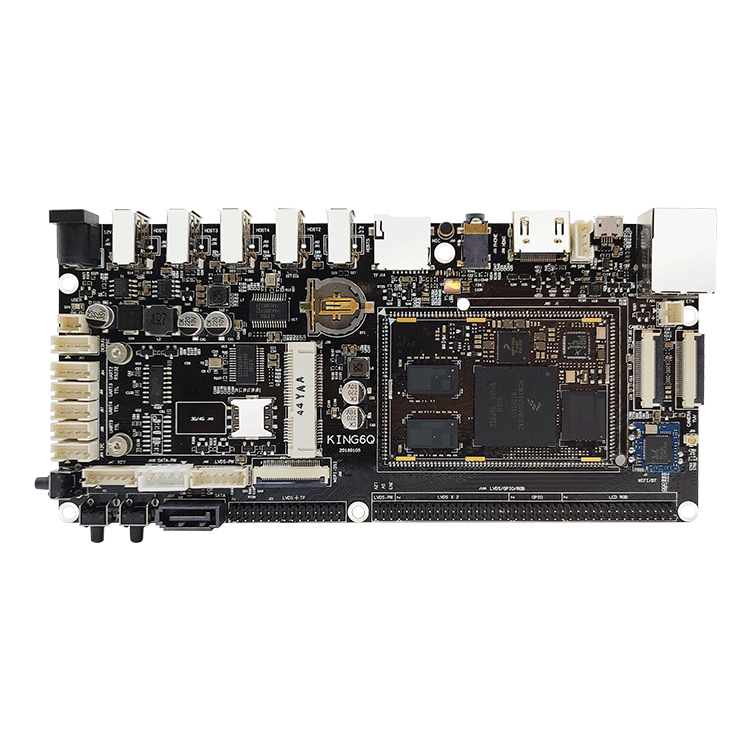

PRODUCT DISPLAY

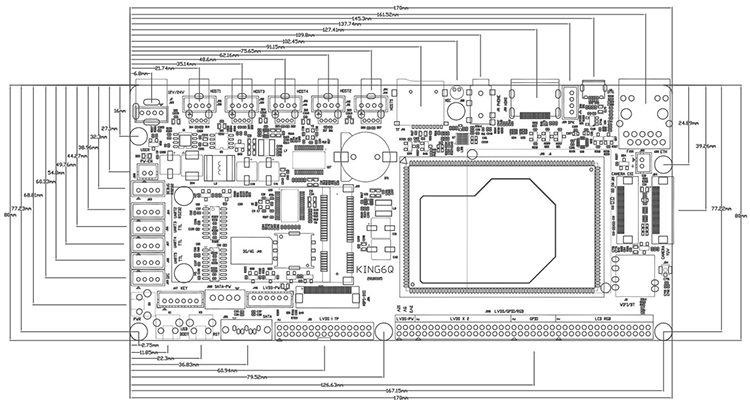

PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 170mm x Wide 80mm x High 18mm |
| CPU | Freescale i.MX6 Dual core A9 |
| GPU | GC2000 |
| RAM | DDR3 standard 1GB (2GB batch optional) |
| Storage | EMMC 5.1 standard 8GB(16GB/32GB/128GB batch optional) |
| Power management | MMPF0110N |
| Working voltage | 12V 1.5A or more |
| Support system | Android/Ubuntu/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Power supply | 12V 1.5A or more power supply DC seat specification 5.5x2.1 |
| USB interface | 5 way external plug-in standard USB |
| OTG interface | 1 way Micro USB OTG interface |
| FAN | 1 way Fan interface |
| SATA | 1 way SATA hard disk interface Max 500G |
| TF card | Support TF card up to 128GB |
| GPIO interface | 10 way available GPIO |
| I2C interface | 1 way I2C interface |
| MIPI CSI input | 1 way MIPI data input |
| CAMERA DVP | 1 way DVP data input |
| MIPI DSI display | 2 Lane up to 1280x800 |
| LVDS display | Supports dual 8 LVDS |
| RGB display | 1 way RGB 888 output Maximum support 1920x1080 1080P 60fps |
| HDMI output | HDMI 2.0 supports 1080P output |
| WIFI | 2.4G WIFI RTL8723 |
| BLUETOOTH | Support BLUETOOTH 4.0 |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| Serial port | 5 way serial ports,3 way TTL, 2 way RS232,one of which is DEBUG |
| Voice output | 1 way headphone left and right channel output, 2 way speaker output 2W/8 Euro |
| Voice input | 1 way microphone input |
| Ethernet | 1 way 10M/100M/1000M |
| System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
<td height="30" style="border-color: rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x:0; --tw-border-spacing-y:0; --tw-translate-x:0; --tw-translate-y:0; --tw-rotate:0; --tw-skew-x:0; --tw-skew-y:0; --tw-scale-x:1; --tw-scale-y:1; --tw-pan-x: ; --tw-pan-y: ; --tw-pinch-zoom: ; --tw-scroll-snap-strictness:proximity; --tw-gradient-from-positio
| Project | Minimum | Typical | Maximum | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power parameters | Voltage | 6.5V | <span style="border: 0px; box-sizing: border-box; --
