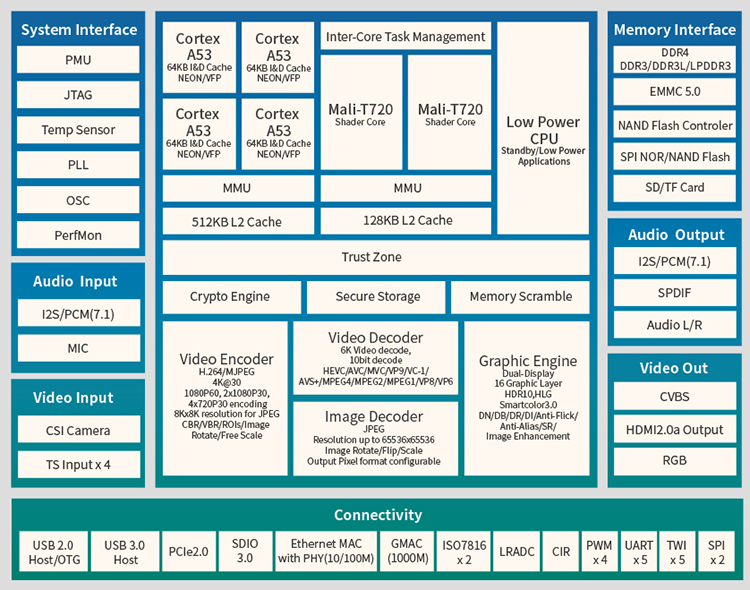

CPU BLOCK DIAGRAM

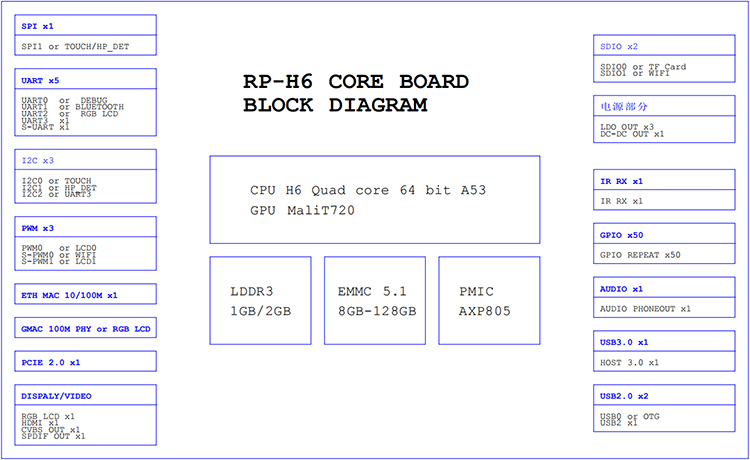

CORE BOARD BLOCK DIAGRAM

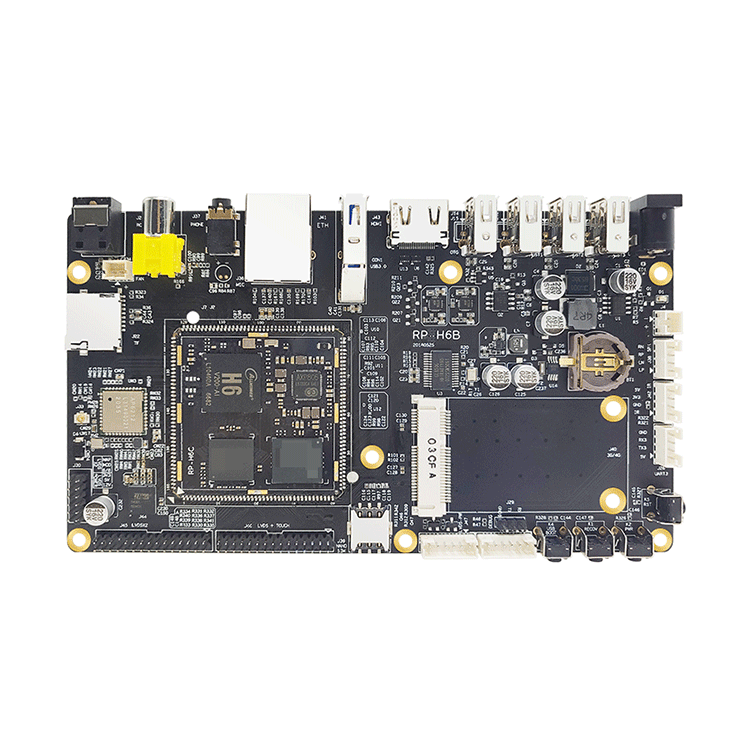

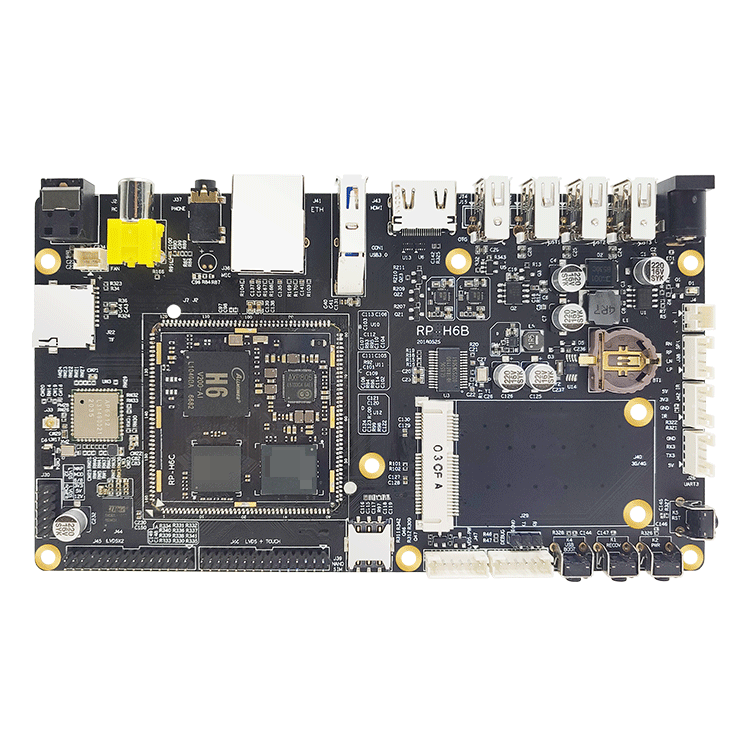

PRODUCT DISPLAY

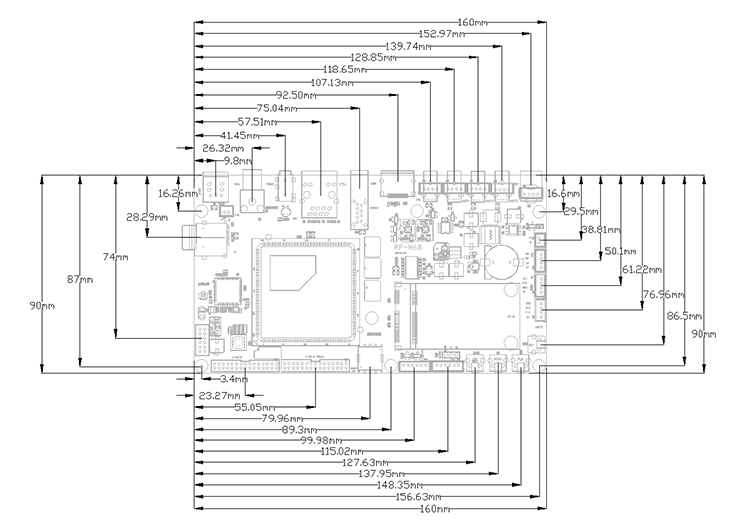

PCB SIZE DRAWING
HARDWARE INDEX
| size | L160mm x W90mm x H17mm |
| CPU | Allwinner H6 quad-core clocked at 1.5GHz |
| GPU | Mali-720 MP2 GPU |
| Memory | DDR3 standard 1G (2G batch optional) |
| memory | eMMC comes standard with 8G (16G/32G/64G batch optional) |
| power management | AXP805 supports standby, key switch |
| Operating Voltage | Motherboard input supports 12V maximum power consumption 36W |
| support system | Android 7.1+Linux3.10/Linux5.3/armbian |
| operating temperature | -10 to +75 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB interface | 3 USB ports, 3 independent USB ports, 1 independent 3.0 |
| PWM interface | 3-way PWM 3.3V IO level |
| SDIO interface | 2 SDIO interfaces, one TF card, the other connected to WIFI |
| IR infrared interface | 1 channel IR infrared receiving interface |
| PCIE interface | 2-way PCIE interface |
| I2C interface | 2-way I2C interface |
| SPI interface | 1-way SPI communication interface |
| GPIO interface | 8 available GPIO |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| LVDS display | 2-channel LVDS maximum support 1920x1080 |
| RGB display | 1 channel RGB 888 output, maximum support 1920x1080 1080P 60fps |
| HDMI display | 1ch HDMI output 1920x1080 1080P 60fps |
| CVBS output | 1 channel CVBS analog video output |
| voice output | 1 channel left and right channel output, 3W power amplifier attached to the bottom plate |
| Voice input | 1-way microphone input, no function for now |
| Ethernet | EMAC 10/100M network port |
| output power | Multi-channel power output 1.8V 3.3V |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typical | maximum | |
| Current parameters | Voltage | 6.5V | 12V | 15V |
| ripple | -- | 50mV | 120mV | |
| current | 65mA | -- | -- | |
supply current (no other peripherals connected) | Turn-on current | 85mA | 130mA | 315mA |
| Play sound | 95mA | 139mA | 172mA | |
| Connect to HDMI boot current | 106mA | 185mA | 305mA | |
supply current (connected to the display) | LVDS 1024*600 | 98mA | 232mA | 312mA |
| surroundings | Relative humidity | -- | 65% | 75% |
| Operating temperature | -10℃ | -- | 75℃ | |
| storage temperature | -30℃ | -0℃ | 100℃ | |
