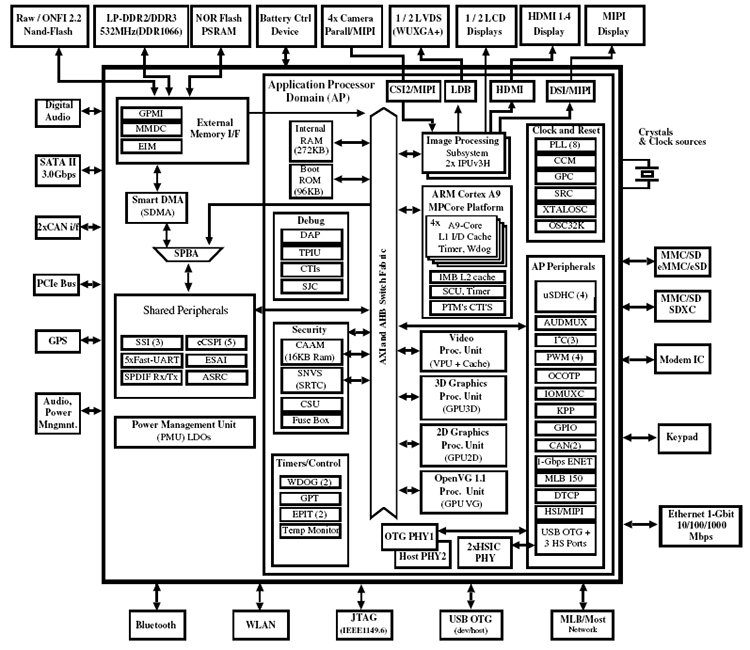

CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

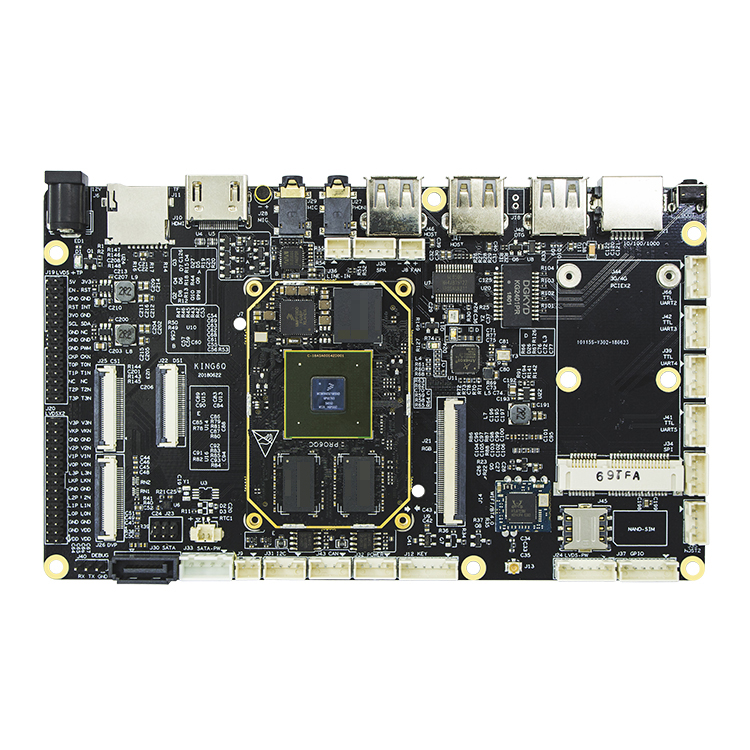

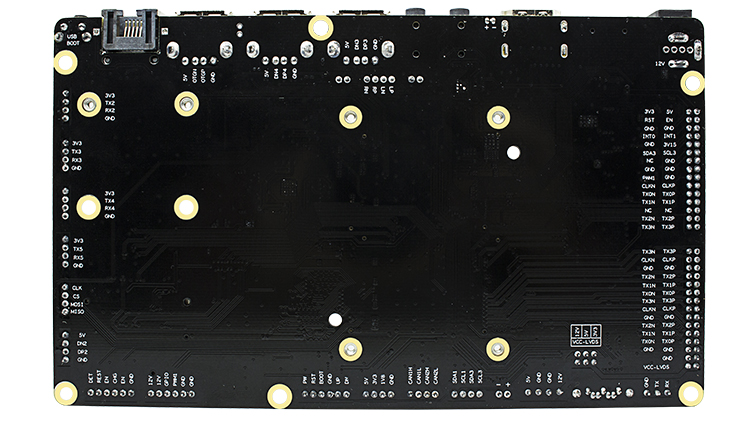

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 160mm x Wide 95mm x High 14mm |
| CPU | Freescale i.MX6 Quad core Cortex-A9 |
| GPU | GC2000 |
| RAM | DDR3 standard 2GB (1GB batch optional) |
| Storage | EMMC 5.1 standard 8GB(16GB/32GB/128GB batch optional) |
| Power management | MMPF0110N |
| Working voltage | 12V 1.5A or more |
| Support system | Android/Ubuntu/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Power supply | 12V 1.5A or more power supply DC seat specification 5.5x2.1 |
| RTC | Button battery clock save |
| USB interface | 4 way USB, 3 way plug-in standard USB, 1 way plug-in |
| PCIE | 1 way PCIEx1 interface |
| CAN | 2 way CAN bus interface |
| SATA | 1 way SATA hard disk interface Max 500G |
| TF card | Support TF card up to 128GB |
| GPIO interface | 10 way available GPIO |
| I2C interface | 1 way I2C interface |
| SPI | 1 way SPI interface |
| MIPI CSI input | 1 way MIPI data input |
| CAMERA DVP | 1 way DVP data input |
| MIPI DSI display | 2 Lane up to 1280x800 |
| LVDS display | Supports dual 8 LVDS |
| RGB display | 1 way RGB 888 output Maximum support 1920x1080 1080P 60fps |
| HDMI output | HDMI 2.0 supports 1080P output |
| WIFI | 2.4G WIFI RTL8723 |
| BLUETOOTH | Support BLUETOOTH 4.0 |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| Serial port | 5 way serial ports TTL, one of which is DEBUG |
| Gravity | 1 way three-axis gravity sensor |
| Voice output | 1 way headphone left and right channel output, 2 way speaker output 2W/8 Euro |
| Voice input | 1 way microphone input |
| Ethernet | 1 way 10M/100M/1000M |
| System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | smallest | typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| ripple | -- | 50mV | 100mV | |
| current | 175mA | -- | -- | |
Supply current (No other peripherals connected) | Start-up current | 175mA | 365mA | 798mA |
| play sound | 325mA | |||
| Connect HDMI power-on current | 375mA | |||
Supply current (connected to display screen) | 5 inches 720*1280 | 465mA | ||
| environment | relative humidity | -- | 65% | 75% |
| working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
Note 1: When connecting to an LVDS screen, be sure to select the correct backlight operating voltage of 3.3V, 5V, or 12V. Users are advised not to apply it to peripherals that exceed the corresponding maximum current.
Note 2: When connected to a MIPI screen, the overall operating current and standby current of the board depend on the connected screen and are not listed in the above table.
