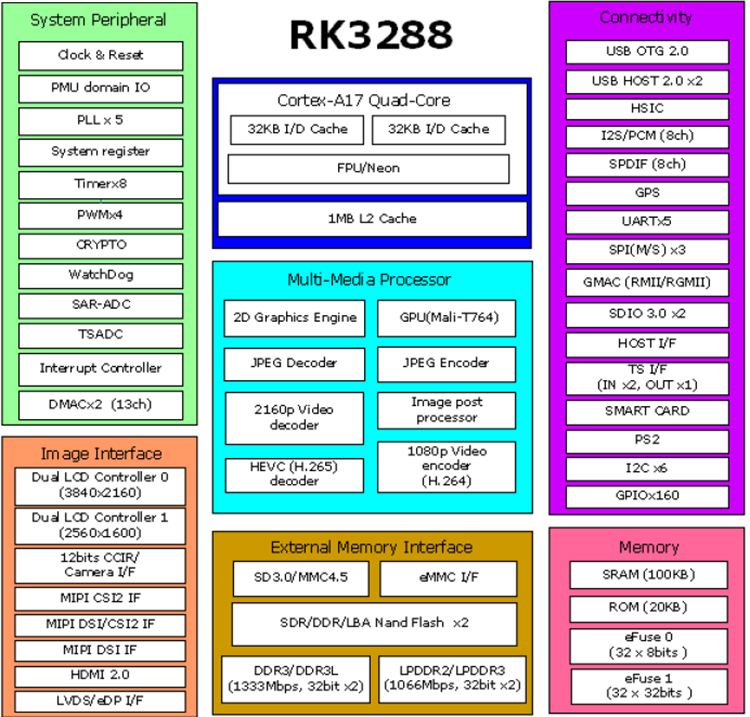

CPU BLOCK DIAGRAM

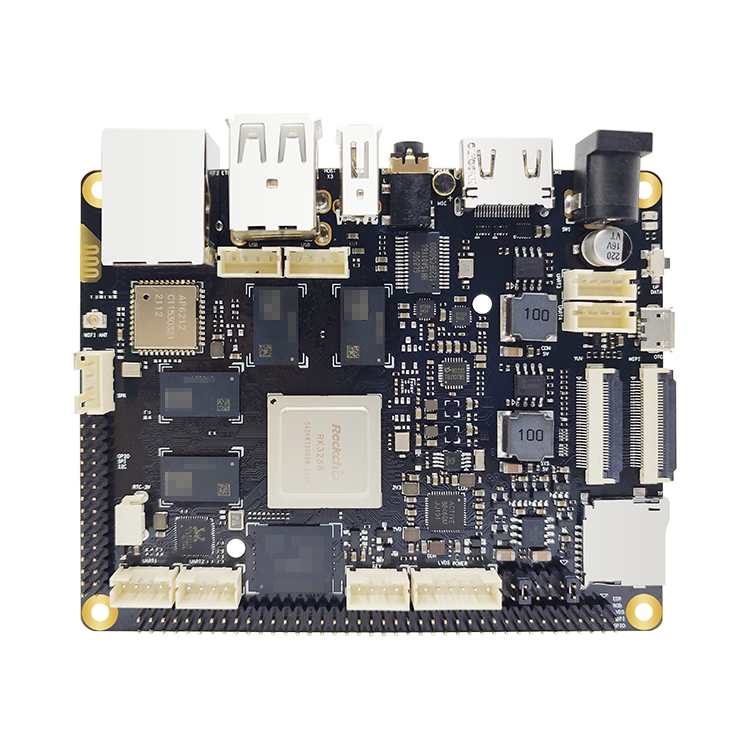

PRODUCT DISPLAY

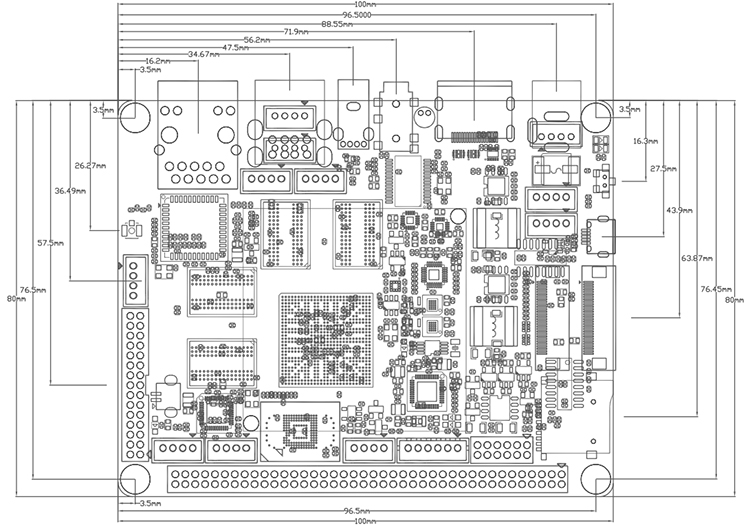

PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 100mm x Wide 80mm x High 14mm |
| CPU | ROCKCHIP RK3288 Four core Cortex-A17 Frequency 1.8G |
| GPU | Mali T764 |
| RAM | DDR3 standard 2GB (4GB batch optional) |
| Storage | EMMC 5.1 standard 8GB (16GB/64GB/128GB batch optional) |
| Power management | ACT8847 |
| Working voltage | 12V/3A |
| Support system | Andriod5.1/7.1/8.1/Ubuntu16.04/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Network port | Support 10/100/1000M Ethernet |
| USB interface | 5 way USB,3 way external plug,2 way internal plug |
| MICRO USB interface | 1 way MICRO USB OTG interface |
| Headset | Support 3.5 headphone stereo output |
| Microphone | 4015 Acoustic Microphone |
| Horn | Support two way 2W speaker outputs |
| HDMI output | Support 4K/1080P HD display output |
| Power input | DC Socket 5.5x2.1 12V 1.5A above adapter |
| UART serial port | 4 way serial port,2 way RS232/2 way TTL |
| TF card | Support maximum capacity 128GB TF card |
| MIPI CSI camera | Supports up to 1300W pixel camera |
| DVP camera | Supports up to 500W pixel camera |
| WIFI | Masaki AP6212 2.4G SDIO WIFI |
| BLUETOOTH | Masaki two in one,4.0 Bluetooth module supports BLE function |
| LVDS display | Supports dual 8 LVDS displays with a maximum resolution of 1920x1080 |
| MIPI display | Supports 8 Line MIPI displays with a maximum resolution of 4K |
| EDP display | Supports 4Line EDP displays with a maximum resolution of 1920x1080 |
| GPIO | Supports 8 way input or output configurable GPIO |
| Gravity sensor | Support triaxial gravity sensor |
| RTC | Power-down time saving (requires optional coin cell battery) |
| System upgrade | USB/TF/OTA Three ways |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
Power supply current (no other peripherals connected) | Working current | 135mA | 326mA | 965mA |
| Play sound | 176mA | 345mA | 395mA | |
| HDMI | 215mA | |||
Power supply current (Connect display screen) | 10.1 inch 1024*600 | 435mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 100mm x Wide 80mm x High 14mm |
| CPU | ROCKCHIP RK3288 Four core Cortex-A17 Frequency 1.8G |
| GPU | Mali T764 |
| RAM | DDR3 standard 2GB (4GB batch optional) |
| Storage | EMMC 5.1 standard 8GB (16GB/64GB/128GB batch optional) |
| Power management | ACT8847 |
| Working voltage | 12V/3A |
| Support system | Andriod5.1/7.1/8.1/Ubuntu16.04/Linux+QT |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Network port | Support 10/100/1000M Ethernet |
| USB interface | 5 way USB,3 way external plug,2 way internal plug |
| MICRO USB interface | 1 way MICRO USB OTG interface |
| Headset | Support 3.5 headphone stereo output |
| Microphone | 4015 Acoustic Microphone |
| Horn | Support two way 2W speaker outputs |
| HDMI output | Support 4K/1080P HD display output |
| Power input | DC Socket 5.5x2.1 12V 1.5A above adapter |
| UART serial port | 4 way serial port,2 way RS232/2 way TTL |
| TF card | Support maximum capacity 128GB TF card |
| MIPI CSI camera | Supports up to 1300W pixel camera |
| DVP camera | Supports up to 500W pixel camera |
| WIFI | Masaki AP6212 2.4G SDIO WIFI |
| BLUETOOTH | Masaki two in one,4.0 Bluetooth module supports BLE function |
| LVDS display | Supports dual 8 LVDS displays with a maximum resolution of 1920x1080 |
| MIPI display | Supports 8 Line MIPI displays with a maximum resolution of 4K |
| EDP display | Supports 4Line EDP displays with a maximum resolution of 1920x1080 |
| GPIO | Supports 8 way input or output configurable GPIO |
| Gravity sensor | Support triaxial gravity sensor |
| RTC | Power-down time saving (requires optional coin cell battery) |
| System upgrade | USB/TF/OTA Three ways |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
Power supply current (no other peripherals connected) | Working current | 135mA | 326mA | 965mA |
| Play sound | 176mA | 345mA | 395mA | |
| HDMI | 215mA | |||
Power supply current (Connect display screen) | 10.1 inch 1024*600 | 435mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |

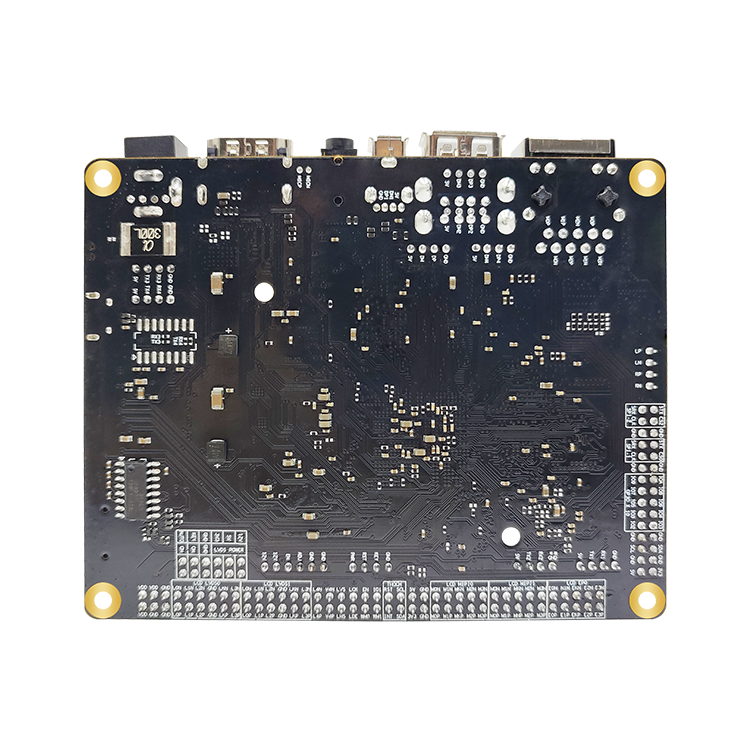

Product Show Case
