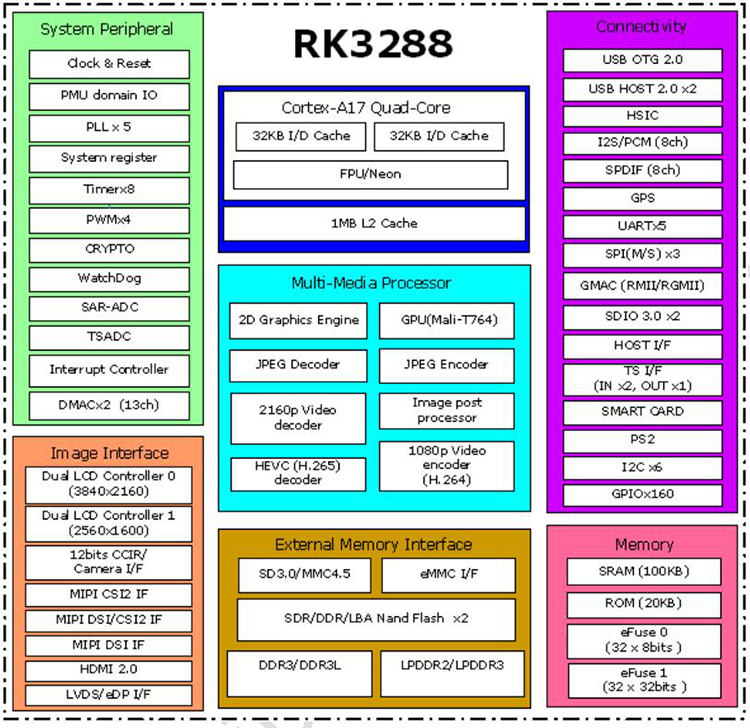

CPU BLOCK DIAGRAM

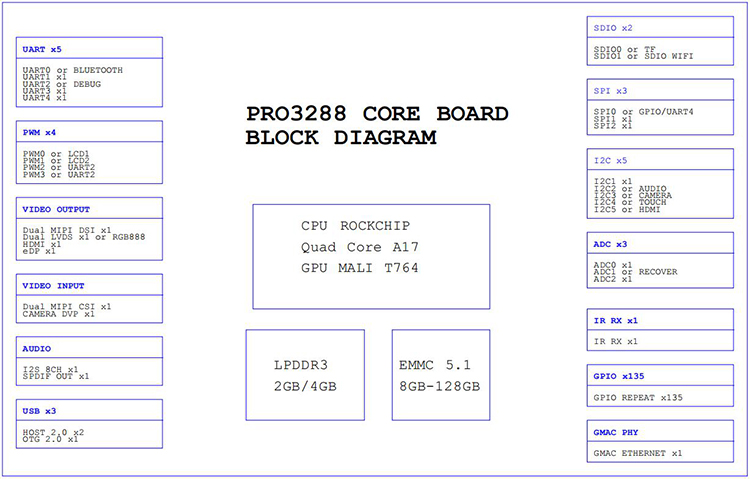

CORE BOARD BLOCK DIAGRAM

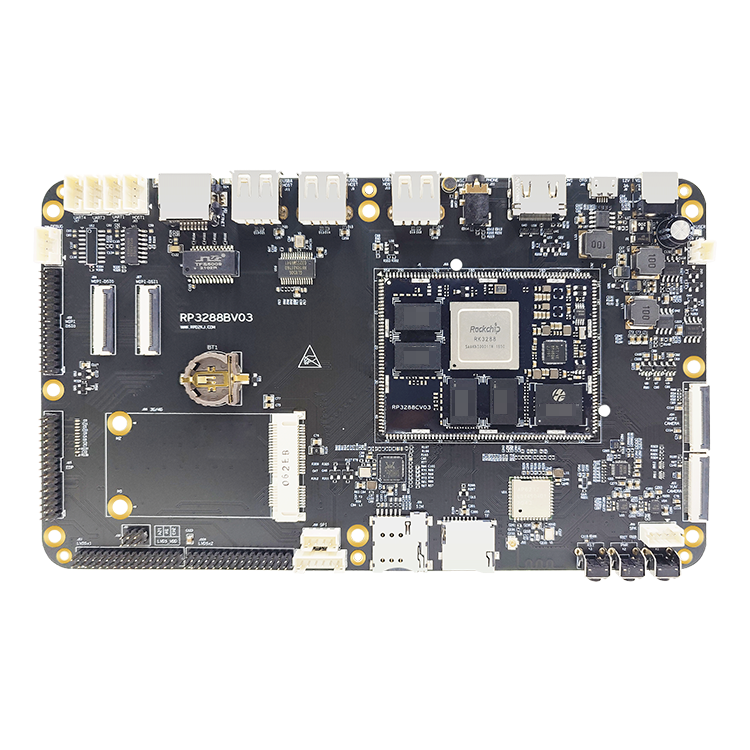

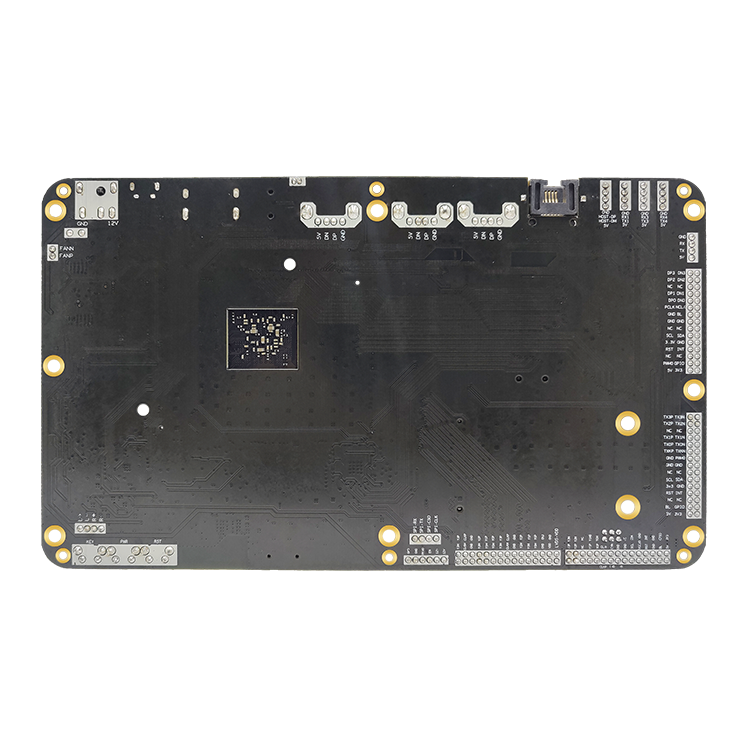

PRODUCT DISPLAY

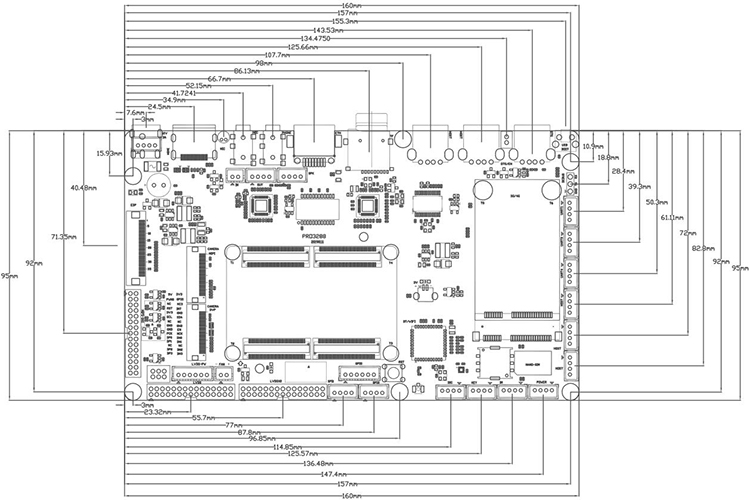

PCB SIZE DRAWING
HARDWARE INDEX
| Size | Long 160mm x Wide 95mm x High 14mm |
| Connection method | Board-to-board connector |
| CPU | ROCKCHIP RK3288 Four core Cortex-A17 |
| GPU | Mali T746 |
| RAM | LPDDR3 standard 2GB (1GB/4GB batch optional) |
| Storage | EMMC 5.1 standard 8GB (16GB/32GB/64GB/128GB batch optional) |
| Power management | ACT8847 |
| Working voltage | 12V 2A or more |
| Support system | andriod/ubuntu/linux |
| Operating temperature | -10 to +75 degrees |
| Life | Continuous operation life more than 5 years |
COMMONINTERFACE
| Ethernet | 1 way 10M/100M/1000M |
| USB HOST | 5 way USB interface,3 way external standard USB,1 way OTG,2 way internal connection |
| Serial port | 5 way TTL serial port,among them 1 way Debug |
| MIPI DSI display | 2 way DSI display output up to 2K/4K |
| MIPI CSI input | 2 way CSI MIPI camera interface |
| DVP camera | 1 way DVP camera input,up to 500W pixels |
| eDP display | Support EDP display output up to 1080 |
| HDMI display | 1 way HDMI display supports 4K / 1080P |
| LVDS display | Support dual 8LVDS display output up to 1080 |
| Output power | 3 way connector output 3.3V 5V 12V |
| TF card | Support TF card |
| WIFI | 1 way 2.4G WIFI |
| BLUETOOTH | 1 way 2.4G BLUETOOTH |
| I2C interface | 2 way I2C interface |
| SPI interface | 2 way SPI interface |
| GPIO interface | 8 way available GPIO |
| 3G/4G | 4G function, PCI-E 3G/4G Internet access |
| GPS | External GPS (optional) |
| Voice output | 1 way headphone left and right channel output, 2 speaker output 2W / 8 Euro |
| Voice input | 1 way microphone input |
| RTC real-time clock | External button battery supports saving of power-off time |
| System upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Electric current | 125mA | -- | -- | |
power supply current (no other peripherals connected) | Working current | 135mA | 298mA | 765mA |
| Play sound | 265mA | |||
| Connect HDMI boot current | 305mA | |||
power supply current (connect display screen) | 5 inch 720*1280 | 406mA | ||
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
