主要硬件指标 | |
尺寸 | 120mmzhang*120mmkuan*14mmgao |
连接方式 | 板对板连接器 |
CPU | rockchip rk3568 sihea55 |
GPU | ROCKCHIP RK3568 四核A55 |
内存 | lpddr4 biaopei2gb/4gb/8gb |
存储器 | emmc 5.1 biaopei8gb/32g/64g |
电源管理 | RK809-5 |
工作电压 | 12V 2A以上 |
支持系统 | andriod13/debian11 /buildroot+ qt5.15/ubuntu20.04/open harmony4.0 |
运行温度 | -10到+75度 |
主板常用接口 | |
USB 2.0 | 4luusb，1luwaijiebiaozhunusb， 3luneijie |
USB 3.0 | 2luwaijiebiaozhunusb 3.0jiekou，qizhongyiluweiotg 3.0 |
PCIE3.0 | zhichiyilubiaozhunpcie3.0 x2jiekou |
GPS | yilubanzaigps+beidoushuangmo |
M.2 | yilum.2 pcie2.0 gutaiyingpanjiekou |
4G | zhichiyiluusb 4g mokuaijiekou |
CAN | 2路CAN总线 |
串口 | 5luttl（kepeirs232）chuankou，qizhongyiluweidebug |
HDMI1显示 | zhichi4k/1080p |
RS485 | 1路RS485 |
以太网 | 2lu yirgmiitaiwang 10m/100m/1000m rtl8211f |
AHD输入 | 4lu1080p ahdshuru xs9922b |
WIFI | ap6256 2.4/5gshuangmo |
蓝牙 | ap6256 lanya 5.0 |
语音输出 | 1luerjizuoyoushengdaoshuchu，erlulabashuchu 5w/8ou |
语音输入 | 1lulane inshuru |
GPIO口 | zhichi8luduligpio |
EDP显示 | zhichiedpxianshishuchu zuigao1080p |
LVDS显示 | zhichishuang8 lvdsxianshishuchu zuigao1920x1080 |
mipi dsi xianshi | 1lu dsixianshishuchu zuigao2k |

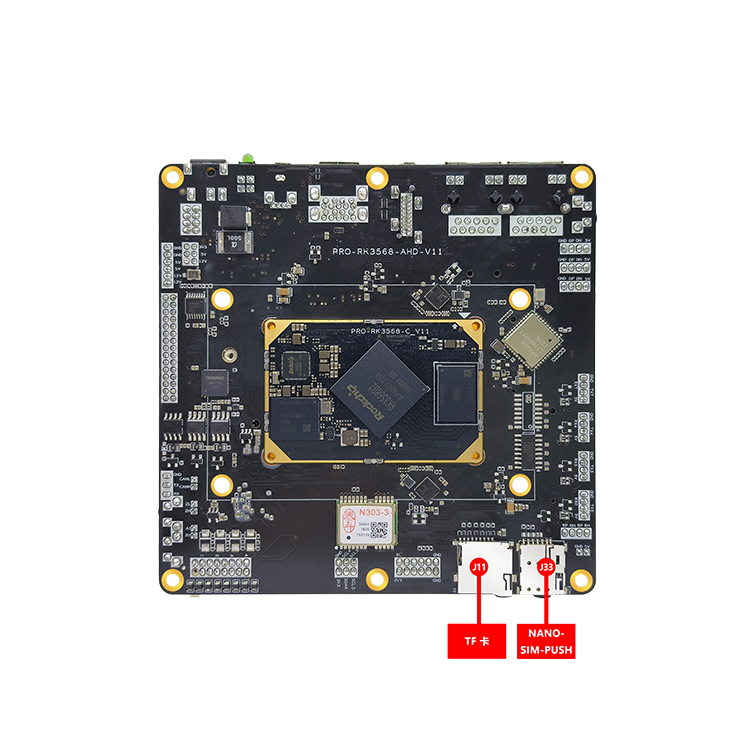

TF卡 | tfkajiekouzuida128g |
I2C | 2路I2C接口 |
RTC实时时钟 | 8563 waizhiniukoudianchizhichidiaodianshijianbaocun |
系统升级 | 支持本地USB升级 |
＞＞
